• Model NO.：DDG-2090
• Specification：isp 9001
• Trademark：boqu
• Origin：China
• HS Code：9027809900
• Production Capacity：1000,M

Basic Info.

Model NO. DDG-2090 Specification isp 9001 Trademark boqu Origin China HS Code 9027809900 Production Capacity 1000/M

Product Description

         DDG-2090 Industrial Online Conductivity  Analyzer



DDG2090 Industrial online Conductivity Meter is developed on the basis of guaranteeing the performance and the functions.
The clear display, simple operation and high measuring performance provide it with high cost performance. It can be widely
 used for continuous monitoring of conductivity of water and solution in thermal power plants, chemical fertilizer, metallurgy,
 environmental protection, pharmacy, biochemical engineering, foodstuff, running water and many other industries.
Technical Indexes:


1.Measuring range:

0.1~200 uS/cm     (Electrode: K=0.1)

1.0~2000 us/cm    (Electrode: K=1.0)

10~20000 uS/cm   (Electrode: K=10.0)

0~19.99MΩ      (Electrode: K=0.01)

2. Resolution: 0.01 uS /cm, 0.01 MΩ

3. Precision: 0.02 uS /cm, 0.01 MΩ

4. Stability: ≤0.04 uS/cm 24h; ≤0.02 MΩ/24h

5. Standard solution: Any standard solution

6. Control range: 0~19.99mS/cm, 0~19.99KΩ

7. Temperature compensation: 0~60.0ºC

8. Output signal: 4~20mA isolated protection output, Can double the current output.

9. Output control mode: ON/OFF relay output contacts (two sets)

10. Relay load: Max. 230V, 5A(AC); Min. l l5V, 10A(AC)

11. Current output load: Max. 500Ω

12. Working voltage: AC 230V ±l0%, 50/60Hz

13. Overall dimension: 96x96x110mm; dimension of the hole: 92x92mm

14. Working condition: ambient temperature: 5~45ºC


Packing & Delivery

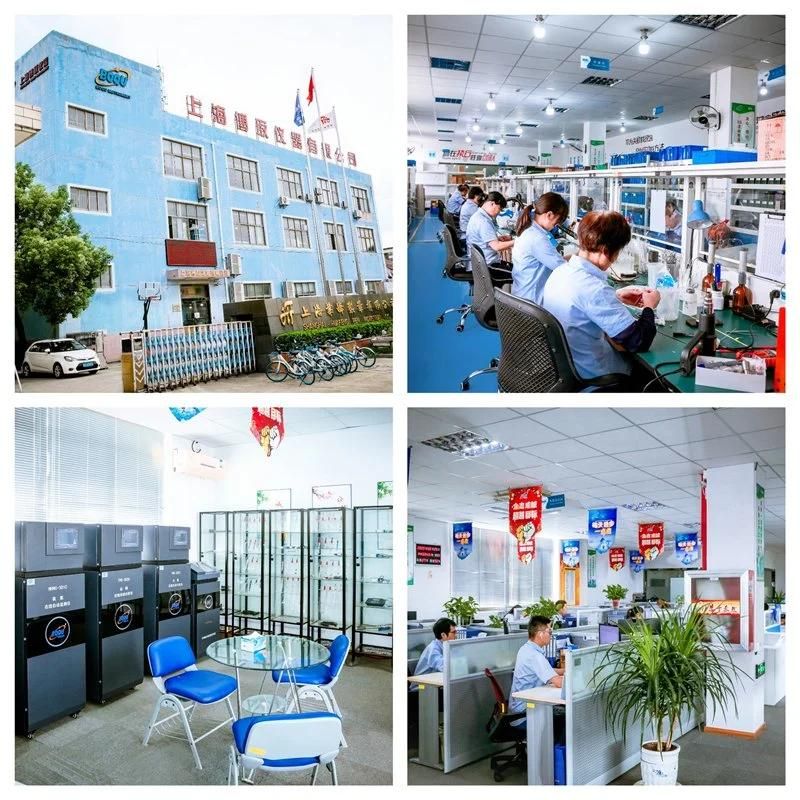

Company Show
Abroad Exhibition
Customer Show

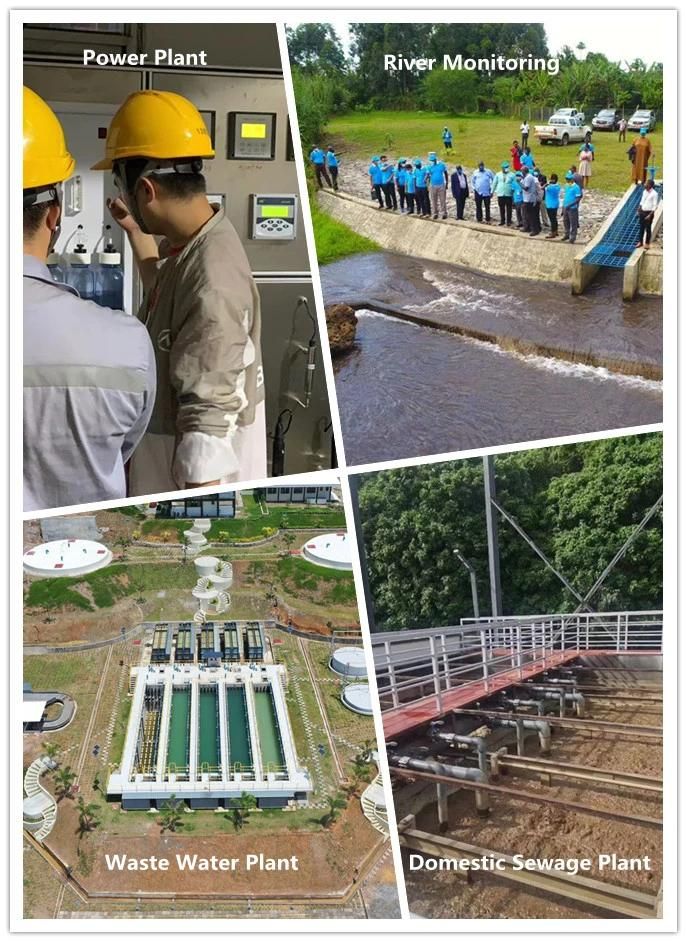

Application
Certification

FAQ1. Who are we?
BOQU instrument focus on R&D and production of Water Quality analyzer&sensor since 2007. Our mission is To be brightest eye for water quality monitoring on earth.★ Employees: 200+ people
★ Annual growth rate: 35%
★ R&D experiences: 20+ years
★ Technical patents: 50+
★ Annual production quantities: 150,000pcs
★ Cooperation companies: Boehringer Ingelheim, CM, Roche
★ Main Industries: Power plant, Water treatment plant, Drinking water, Pharmaceutical, Fish farming, Swimming pool.

2. How can we guarantee quality?

1) 100% OQC for all of products before shipping
Testing pictures and videos to be provided before shipping

3. What's our main business?
Whole solution for water quality instruments. Including analyzers and sensors for pH, COD, BOD,
conductivity, Dissolved Oxygen, Turbidity, TSS, Residual chlorine, Ammonia, Nitrate, Hardness and etc..

4. Why choose us instead of other suppliers?
1) Manufacturer was established since 2007, top supplier of water quality instrument.
One stop solution provider for water quality monitoring, thousands of projects reference.
24 hours after-sales service team, products training on time.
20+ years R&D experience, support OEM & ODM service.
50+ Patents for water quality analyzer and sensor

5. What service can we provide?
Incoterms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU,
Express Delivery, DAF, DES;
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY,CHF;
Payment method: T/T, MoneyGram, Credit Card, PayPal,Western Union, Cash, Escrow;
Language: English, Chinese, Spanish, Korean
