• Model NO.：NB-508
• Rated Power：2.5 Kw
• Rated Temperature：1000ºC
• Heat Savings：≤5kw.H
• Furnace Temperature Uniformity：≤15ºC
• Dimension：575mm×3850mm×480mm
• Transport Package：Wooden Case
• Trademark：NANBEI
• Origin：China
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. NB-508 Rated Power 2.5 Kw Rated Temperature 1000ºC Heat Savings ≤5kw.H Furnace Temperature Uniformity ≤15ºC Dimension 575mm×3850mm×480mm Transport Package Wooden Case Trademark NANBEI Origin China Production Capacity 1000PCS/Year

Product Description

                        NB-508 Ash Content Tester
Summary
  The instrument is designed and made as per national standard of People's Republic of China GB/T508 and ASTM D482 Standard Test Method for Ash Content of Petroleum Products. It is suitable to determine ash content in the petroleum products as per GB/T508. It could not be used to determine ash content in the petroleum products containing ash-forming additives (including additives containing certain phosphorus compounds), lubricating oils containing lead, and used engine crankcase oils.
  The method summary of ash content test: Take ashless filter paper as ignition core. Ignite the sample in the crucible to make it burning to ash and carbon residue. Heat the carbon residue at 775ºC in the high temperature furnace to make it convert to ash. Then cool down and weigh the mass.

I. Main technical features

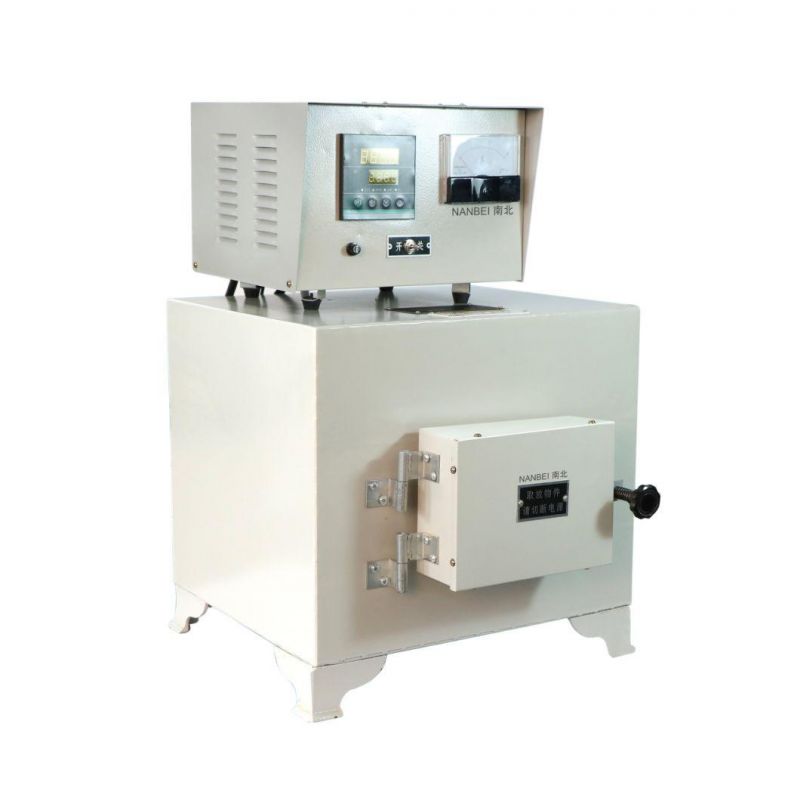

1. The instrument is composed of a box-type heating furnace, a temperature control stand and an electric heating plate. It is small size and needs less land.
2. The box-type furnace adopts all-in-one structure. Special fire-resistant material and heating components. The heating time is short and it has a long lifetime.
3. An adjustable LED temperature controller is equipped in the control stand. The overshoot is small and temperature control is stable.
4. The size of heating plate is Φ85mm. Small size and good durability.

II. Main technical specifications
1. Box-type heating furnace
(1) Power supply: AC220V±10%, 50 Hz
(2) Rated power: 2.5 kW
(3) Rated temperature: 1000ºC
(4) Temperature rising time for empty furnace: ≤50 min
(5) Power consumption for empty furnace:≤800W
(6) Heat savings:  ≤5kW.h
(7) Furnace temperature uniformity: ≤15ºC
(8) Thermocouple: WRN-010
(9) Size of furnace chamber: 200mm×120mm×80mm
(10)Dimension: 575mm×3850mm×480mm

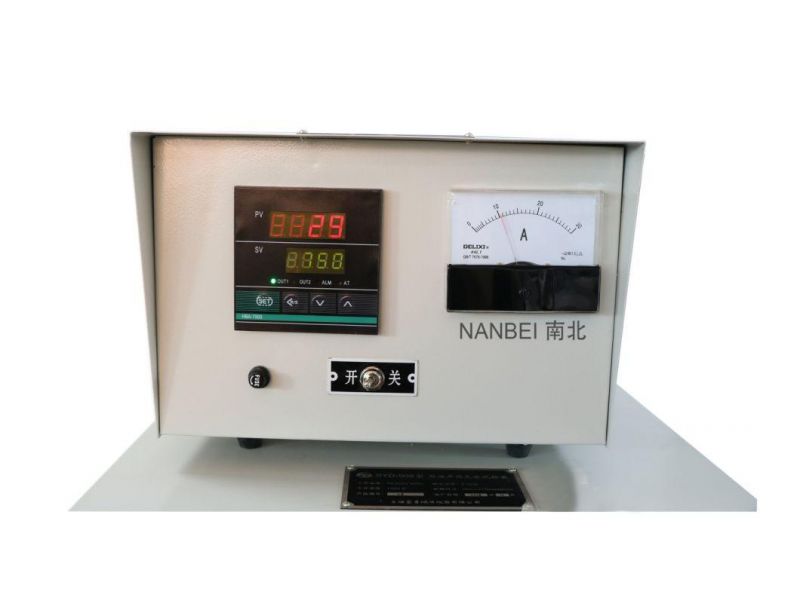

2. Temperature control stand
(1) Rated controllable power:   5000W
(2) Power supply:    AC(220±10%)V, 50Hz
(3) Maximum control temperature:  1200ºC
(4) Temperature controller:   DTW2001
(5) Thermocouple:   WRN-010
(6) Dimension:   500mm×300mm×235mm
3. Electric heating plate
(1)Rated power:   1500W
(2) Power supply:   AC(220±10%)V, 50Hz
(3) Rated temperature:   400ºC
(4) Heating power:  (1~6)grades, continuously adjustable.
(5) Diameter of heating plate:   Φ85mm
(6) Dimension:   280mm×250mm×90mm

NB-508 Ash Content Tester Accessories and Documents List


No.	Name	Unit	Qty	Memo
1	High temperature heating furnace(Including accessory)	Set	1
2	Temperature control stand (Including accessories)	Set	1
3	Electric heating furnace (including accessories)	Set	1
4	Thermocouple	Piece	1
5	Compensating lead wire(has been connected with thermocouple)	Piece	1
6	Ceramic crucible (50 ml)	Piece	10
7	Ceramic crucible (100 ml)	Piece	10
8	Crucible tongs(16 inch)	Pair	1
9	Operating Manual	Piece	1
10	Quality Certificate	Piece	1
11	Repair guarantee	Piece	1

NB-508 Ash Content Tester's Reagent and Auxiliary Equipments

No.	Name	Specification	Quantity	Memo
1	Quantitative filter paper diameter 9cm		1 box
2	Hydrochloric acid	Analytical pure 500ml	3 bottles	Used to wash crucible,the ratio 1:4 solvent,put in crucble and boil it for many munites and then clean it by distilled water.
3	Ten thousandth-Balance	Range 200g	1 set
4	Distilled water	3 grade	Some
5	Glass dry vessel		1 piece

Notes:
1,The reagent and equipments for installing the instrument are supplied by end-users themselves.
2,The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
3,PLS read the operation manual and industry standard before using the instrument.
