• Model NO.：GD-5453
• Function：Storage
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Non-Customized
• Name：ASTM D5453 UV Fluorescence Sulfur Analyzer
• Test Method：Ultraviolet Fluorescence Method, UV Fluorescence M
• Test Standards：ASTM D5453, ASTM Method D5453
• Test Mode：Automatic
• Measuring Range：5ppm~5000ppm
• Detection Limit：5ppm or Even Low to Ppb
• Samples Can Be Detected：Solid, Liquid and Gas Samples
• Features：PC Is Equipped, All Testing Is Automatic, Low Dete
• OEM Supply：Yes
• Warranty Period：1 Year
• Transport Package：Packed in Veneer Case
• Specification：Refer to detailed description
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-5453 Function Storage Weight 0-100Kg Power Source AC220V±22V Customized Non-Customized Name ASTM D5453 UV Fluorescence Sulfur Analyzer Test Method Ultraviolet Fluorescence Method, UV Fluorescence M Test Standards ASTM D5453, ASTM Method D5453 Test Mode Automatic Measuring Range 5ppm~5000ppm Detection Limit 5ppm or Even Low to Ppb Samples Can Be Detected Solid, Liquid and Gas Samples Features PC Is Equipped, All Testing Is Automatic, Low Dete OEM Supply Yes Warranty Period 1 Year Transport Package Packed in Veneer Case Specification Refer to detailed description Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Sets/ Month

Product Description

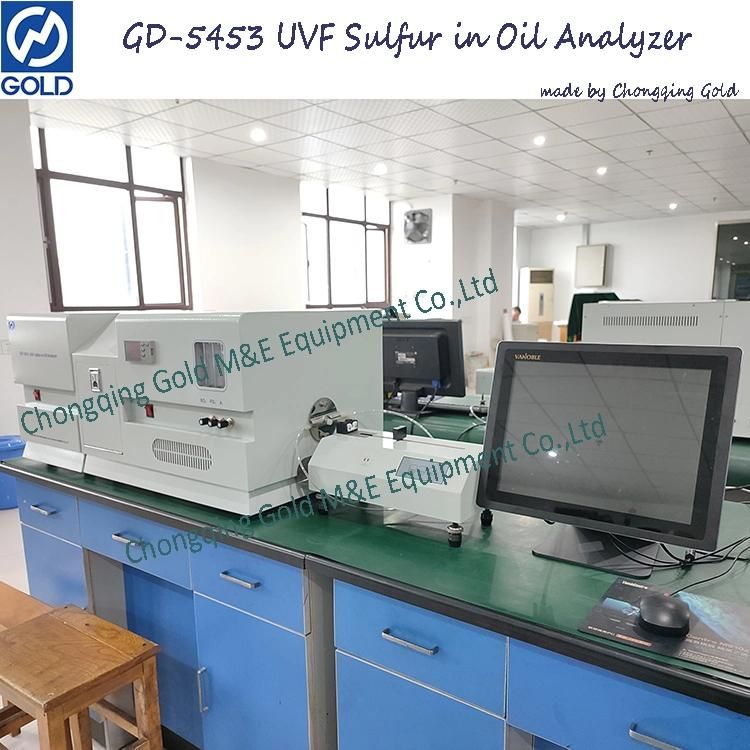

GD-5453 Rapid ASTM D5453 UV Fluorescence Sulfur Analyzer



Introduction:
The ASTM D5453 Total Sulfur Analyzer is used to determine the total sulfur content by ultraviolet fluorescence method. It Improves the ability of anti-jamming and avoids the complicated operation of titration pool and factors of instability which used Coulometry. So the sensitivity of the instrument is greatly improved. The key components of the system adopt imported components to protect the detector light leakage and steam leakage and makes the machine has a reliable guarantee. Standards:SH/T 0689-2000, ASTM D 5453 -2006


Features:
Based on Windows ( 7 , XP , Me, 98 ) English user's interface to make the operation more convenient and fast.. Operator only needs to click the mouse, and it can complete all of the parameter settings. The data collecting, processing, storage and printing are fully controlled by computer.


Specifications:
Standard configuration:Printer+Computer+GD-5453 Ultraviolet Fluorescence Sulfur Analyzer+Liquid injector
Other optional parts:Solid sample injector, gas sample injector
Sample types: Solid, gas and liquid
Determination method:  Ultraviolet fluorescence method(S)
Sample injection quantity:Solid:1-20mg; Liquid:5-20μL; Gas:1-5mL
Measuring range:5ppm ~5000ppm(High concentration should be diluted, Low concentration gas sample is up to 0.1ppm)
Measuring range:

Concentration values (ppm)	Injection quantity(µL)	RSD(%)
5	10	10
50	10	5
100	10	3
5000	10	3

Temperature range:Ambient to 1150ºC
Temperature control precision:±1ºC
Air supply requirements:High purity argon:above 99.9% ; High purity oxygen:above 99.9%
Power supply:AC220V±22V,50Hz±0.5Hz,1500 W
Dimension:  a.Host:305mm*460mm*440mmm;   b.Temp controller:550mm*460mm*440mm
Net weight: a. Host:20kg;     b. Temp controller:40kg;
