Dual Wavelength Portable Turbidity Meter Ntu Analyzer
Shanghai Lianhua Industrial Co., Ltd.- After-sales Service：on-Line Support
- Warranty：One Year
- Application：Water Turbidity Testing
- Detect Time：10 Second
- Measurement Range：0 to 1000 Ntu
- Accuracy：3%
Base Info
- Model NO.：LH-NTU2M(V11)
- Model：Lh-Ntu2m(V11)
- Function：Double Beam
- Transport Package：Express, Carton
- Specification：224*108*78mm
- Trademark：Lianhua or no logo
- Origin：China
- HS Code：9031809090
- Production Capacity：50000 Units , Year
Description
1 >Product Introduction

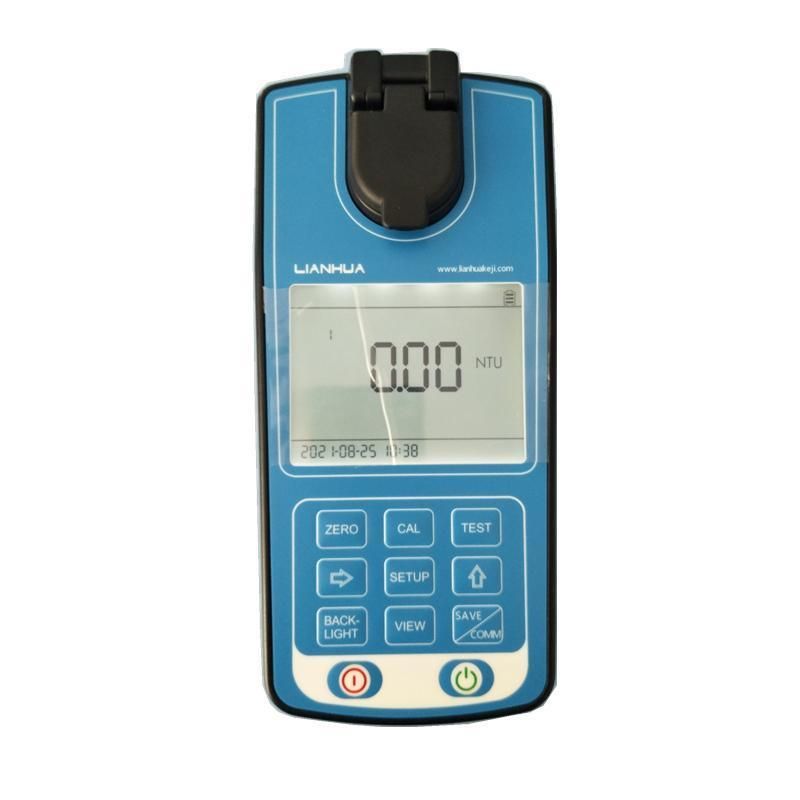

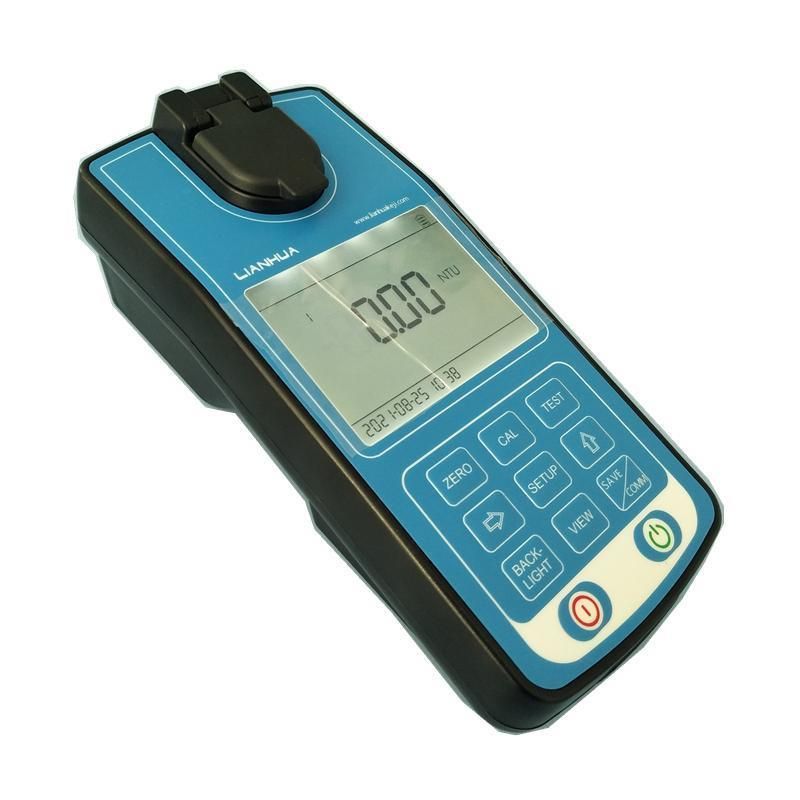

This is a portable turbidity instrument. Use 90° scattering method to eliminate chromaticity interference. With dual-beam, it can automatically switch between high and low ranges.
2 >Functional characteristics
1. Elimination of chromaticity interference by using 90 scattering method,double wavelength.
2. With built-in standard curve, the result of turbidity sample can be read directly;
3. Microcomputer processing chip, the range (0 ~10, 10 ~100100 ~1000) NTU can be switched automatically, and the user can also select the range according to the turbidity concentration of the water sample manually;
4. it can be used to measure the low, medium and high turbidity water samples of 0-1000NTU directly;
5. Show time and date on the instrument.
6. The device is good quality, light and portable, more suitable for field operations;
7. Users can choose two kinds of power supply modes:battery power supply or adapter.
3 >Technical Parameters
| Product name | Portable turbidity meter |
| model | LH-NTU2M(V11) |
| Method | 90 scattering method |
| Range | 0-1000NTU |
| Resolution | 0.01NTU |
| Accuracy | ≤±5%(±2%F.S) |
| Data save | 5000 pcs |
| Measuring by | Ф25mm tube |
| Weight | 0.55kg |
| Size | (224×108×78)mm |
| With portable temperature-sensitive printer | |
| Data upload | USB connector |
