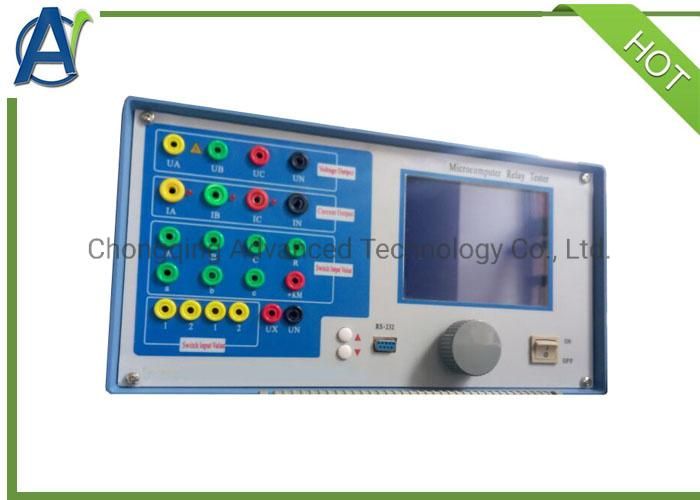

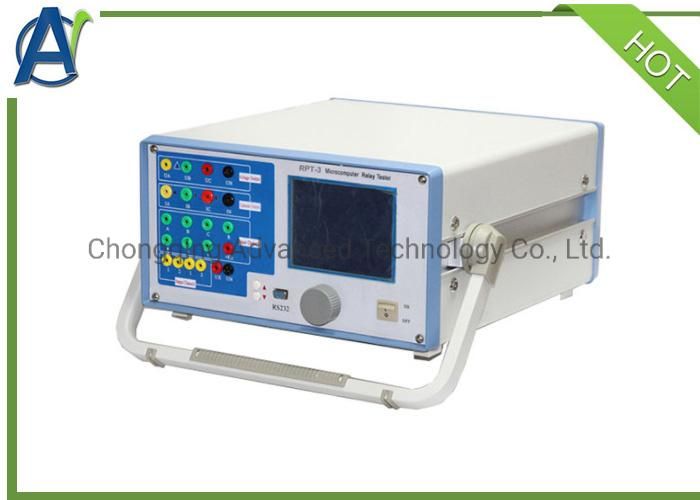

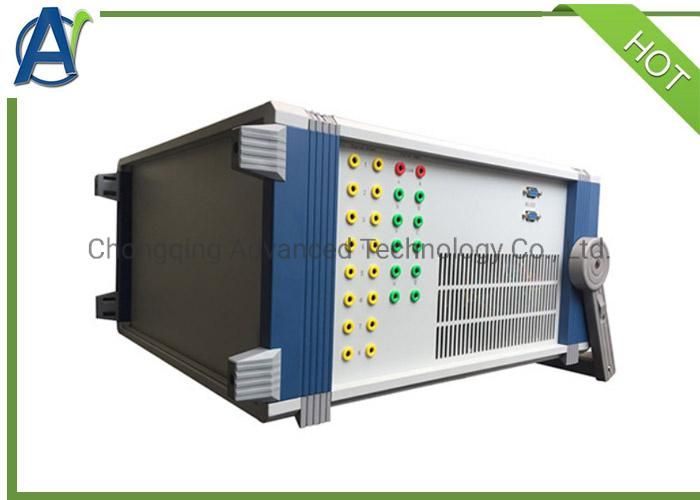

Three-Phase Secondary Current Injection Test Device
Chongqing Advanced Technology Co., Ltd.- After-sales Service：Response in 12 Hours
- Warranty：12 Months
- Phase Current Output：0~40A
- 3 Phase Parallel Current Output：0~120A
- Long-Time Phase Current：10A
- Maximum Output Power of Phase Current：400va
Base Info
- Model NO.：Three Phase Secondary Current Injection Tester
- Maximum Output Power of 3 Parallel Curre：900va
- Frequency Range：20~1000Hz
- Harmonic Time：1~20
- Phase Voltage Output：0~120V
- Line Voltage Output：0~240V
- Line Phase Output Power：80va , 100va
- Time Measuring Range：0.1ms~9999s
- Dimension：400×360×160mm³
- Weight：18kg
- Display：LCD
- Application：Relay Protection Testing
- Transport Package：Plywood Case
- Specification：Small
- Trademark：AI
- Origin：China
- HS Code：9031809090
- Production Capacity：50 Sets,Month
Description
Overview
Detailed Photos
Factory Overview FAQ FAQ
About 15 working days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
