• Model NO.：GD92
• Weight：13kg
• Maximum Power：1kw
• Maximum Hight：680mm
• Lampstand Size：425*300mm
• Application：Building Materials
• Function：Thermal Radiation Dripping Tester
• Material：Stainless Steel
• Radiation Bracket：Rotatable
• Rotation Angle：>90 Degree
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：10

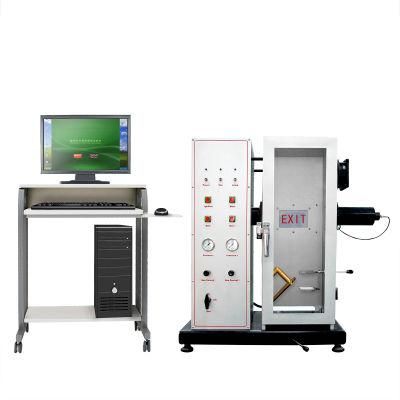

NF P92-501

Model:FTech-NFP92-501

Features:

1, Stainless steel test cabinet, the inner wall is flame resistant material with transparent viewing window;

2, Stainless steel tubular inlet device, equipped with filtration devices shield for indoor sources;

3, 45° of the test stand, equipped with stainless steel foot instructions to calculate the distance of flame spread;

4, Heat radiation device can provide 30KW / m2 heat flux;

5, The power controller controlling the radiation output, adjustable heat radiation;

6, The heat radiating panel display device operating power value, eliminating frequent calibration procedure;

7, The stainless steel burner can ignite the combustible gas automatically;

8, The imported needle valve can control the upper and lower burner flame height, with a flame height measuring;

9, Lasting small flame device is be ignated before the test to convenient upper and lower ignition burners;

10, One-quarter rotation stopper device to facilitate cutting the gas burner and ignite the flame;

11, The top and the air inlet temperature thermocouple monitoring, real-time status display temperature
difference value;

12, The test software can automatically analysis index of flame and burning heat index;

13, Test reports and data can be exported and printed, system has friendly user interface;

14, The test data as follows: raw flame index:i-flame average height index: S- longest flame index:
h-combustion heat index.

Specifiction:
