• Model NO.：AIC-9705
• Conical Collector Size：3000mm X 3000mm, Height 1000mm
• Measuring Range of O2：0-100%
• Measuring Range of CO2：0-10%
• Measuring Range of Co：0-1%
• Imported Filters：(25%, 50%, 79%)
• Range：0-2000 PA
• Sampler：304 Stainless Steel
• Fan Exhaust：Not Less Than 0.5m³,S
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：5 Sets,Month

Stucture of test room

Open

(CFR 1633 standard requires test room can be built as closed or open)

Material of test roomIt is made of rock wool board. There are no openings except door and video surveillance windowsSize of test room3660 ± 25mm in length, 3050 ± 25mm in width and 2438 ±25mm in height.Size of door2032 ± 6 mm high and 965 ± 6 mm wide.Quartz glass monitor window150x150mm

• The fume hood is located outside the door (smoke outlet) to collect smoke;

Open test room:

• The fume hood is positioned directly above the sample and the bottom edge is 2400 mm away from the ground.
• Conical collector size: 3000mm X 3000mm, height 1000mm
• The conical collector has 900mm X 900mm X 900mm X 900mm cubic mixing chamber on the top, and the mixer is installed inside



2.The smoke exhaust pipe consists of a diversion section (x2), a straight section, a measuring section and a fan

The measuring section is equipped with wind speed probe, thermocouple, optical system and sampler.

Smoke exhaust capacity of fan is not less than 0.5m³/s



Control cabinet

• 19 inch standard cabinet, simple appearance, science and technology
• Control system center, integrated computer, display, analyzer, cold trap, control and data acquisition system.
• 19 inch display, Labview control software, electronic control and pneumatic configuration panel.
• Computer: CPU I3, memory 4G, hard disk 500G Win7/Win10 system
• This large furnite calorimeter is equipped with imported analyzer (domestic analyzer is optional)
  • Measurement of Gas Concentration of O2, CO2 and CO.
  • O2:The range is 0-100%, the error is less than 0.01%, the repeatability is less than 0.01%, and the response time is less than 7s.
  • CO2: Range: 0-10%, error: 1% FS, repeatability < 2%, response time < 7s;
  • CO: range 0-1%, error 1% FS, repeatability < 1%, response time < 8s.

• Optical system, one-button 5-level automatic transmittance calibration device;
• Light Source: 0.5mW Laser Generator
• Imported Silicon-based Amplified Photoelectric Detector
• Imported filters (25%, 50%, 79%)
• Motor Driven Optical Wheel and Positioning Device
• Wind Speed Control System
  • Two-way probe, 304 stainless steel, 32mm in length and 14mm in diameter, separated into two separate chambers
  • Imported Micro-differential Pressure Transmitter, Range 0-2000 Pa, Resolution 1%FS
  • Three-phase frequency converter fan, closed-loop control of frequency converter, wind speed can be set, adjustable
• Gas sampling system
  • Sampler, 304 Stainless Steel
  • Ash filter, secondary filter, precision filter (0.2um), three-stage filter system, remove impurity particles in sample gas.
  • Refrigerator, compressor condenser, precise control of the temperature of gas collected at 4ºC±1ºC, condensation dewatering
  • Deep filtration of moisture in sample gas by discolored silica gel
  • Aspirator pump:gas sampling system adopts sampling diaphragm pump displacement of 10L/min~50L/min.
• Gas control system
  • Square Burner for ASTM 1537-16
• Burner:consisting of two T-shaped burners as per ASTM C1822-17 and ASTMC1590-17.
• Mass Flow Controller
  • Mass Flow Controller, control the Gas Flow Accurately.
  • T burner, flow rate 12L/min.
  • Square burner, flow rate 13L/min.
• Ignition Controller
  • 15KV High Voltage Pulse Electron Fire
  • Flame detection function, ignition failure or flame extinction, the controller will automatically cut off the gas valve.

• Weighing system (optional)
  • Weighing platform, range 0-100kg,accuracy 150g;
  • Waterproof design of weighing system to prevent damage to heavy system during fire fighting;
• Video recording
  • 12 Megapixel HD Camera
  • Video Recording Software
• The interface of LABVIEW is modern, simple and rich in functions.
  • The software adopts modular design, independent modules such as system setup, system calibration, test, test report, etc.
  • The test data can be read by engineering units and physical units, and displayed by data windows and curves and charts.
  • The data you want to view can be selected by checking.
  • Provide preview function of test report, which can be printed or saved as Excel or PDF.
  • Test parameters can be viewed and corrected.
  • The test curve can be scaled and dragged.
  • The original data, test results and test reports are provided.

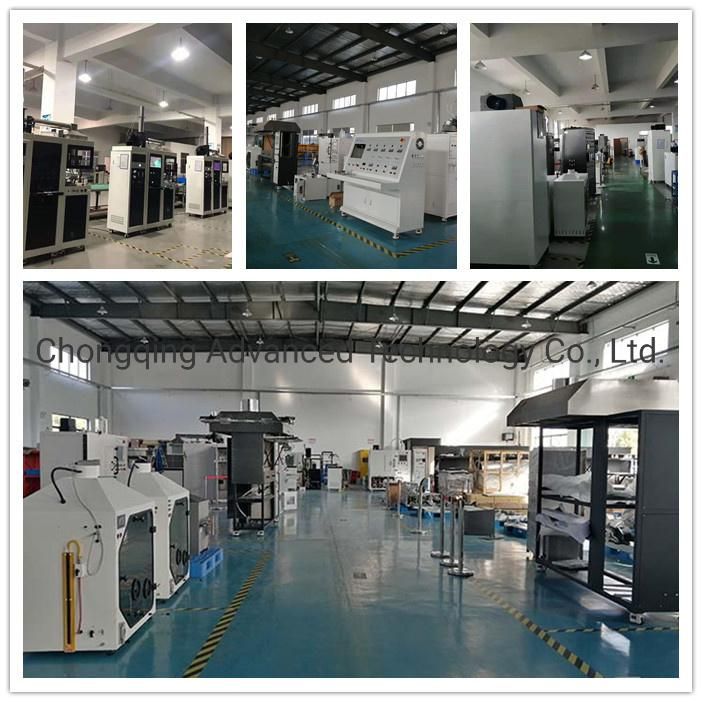

Factory overview

Customer Feedback

Germany

USA

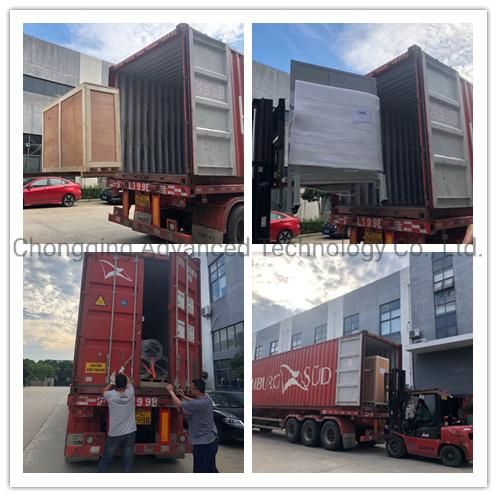

Transporation

FAQ

1.What's the delivery time?
About 6 months.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
