• Model NO.：CHT
• Gas Supplies：Propane and Air Compressed Air
• Heating Temperature：Ambient~500ºC
• Contact Force：49n
• Contact Speed：5mm,S
• Power Consumption：1000W
• Applicating：Protective Clothing Testing
• Color：White
• Display：LCD
• Operation：Automatic
• OEM Service：Available
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. CHT Gas Supplies Propane and Air Compressed Air Heating Temperature Ambient~500ºC Contact Force 49n Contact Speed 5mm/S Power Consumption 1000W Applicating Protective Clothing Testing Color White Display LCD Operation Automatic OEM Service Available Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 10 Sets/Month

Product Description

Introduction
This Contact Heat Transfer Tester is designed according to EN702 and ISO 12127-1standard,and it can meet requirements of Chinese standard AQ6103-2007 Protective gloves for welders.
The test results includes contact temperature,time of starting test,threshold time etc.
The principle is:under set contact temperature,the measuring protective fabric contacts heating column while bearing 49N pressure,the time of temperature raising 10ºC from initial temperature is threshold time,which is used to evaluate thermal protective property.


Features

1. The Contact Heat Transfer Tester adopts high temperature resisting metal heating element,contact diameter is ¢25.2±0.05 mm.
2. Heating temperature range is ambient~500ºC,the HMI can show it directly.
3. Contact area of calorimeter is ¢25±0.05×D5±0.02mm,measuring range is not less than 500ºC.
4. Contact force:49N,contact speed:5mm/s,calorimeter is controlled by Servo motor,which is automatic up and down.All test process are automatically controlled by program.
5. The platform of heating element can be moved horizontally,which is easy for put sample and make sure the operator's safety.
6. LCD display,PLC automatically records start time,threshold time,end temperature of threshold time,real-time temperature.

Introduction of main machined parts

No.	Name	Craft
1	Contact heat source and measuring parts	Stainless steel or brass machined as per standard
2	Control cabinet	Customized by reputable cabinet factory
3	Other auxiliary facilities	Thickness of iron plate is 1.5mm ,seamless welded cabinet with baking finish for cars
4	Heater	Made in China
5	Auxiliary fixtures	Aluminum processing

Main Components of Contact Heat Transfer Tester

No,	Name	Remark
1	Operation method	Touch screen operation
2	Software	Designed by AIC
3	PLC	Delta DVP 16EC00T3
4	Touch Screen	Weinview SK-043AE
5	Motor	Speed adjustable 5GU-90W/reinforced single phase
6	Screw pulley	Taiwan HIWIN
7	Temperature controller	Omron



Customer Feedback

Germany

USA

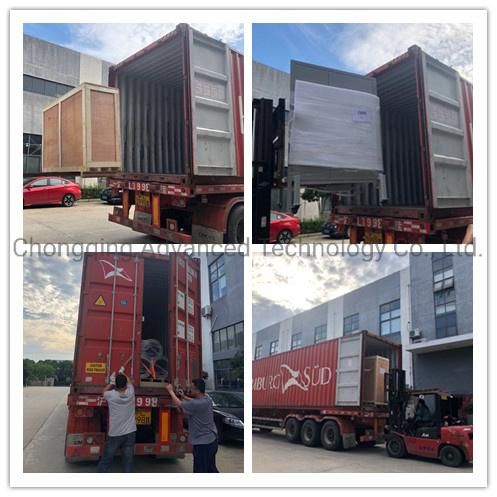

Transporation

FAQ
1.What's the delivery time?
About 60 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
