• Model NO.：G5-WIFI,RS485-GREENHOUSE
• CO2 Adjustment Range：350ppm~1999ppm
• Communication Protocol：RS485
• Operating Mode：Automatic, Manual, Timing
• Optional Panels：White and Gold
• Rated Voltage：AC220V AC230 50Hz
• Transport Package：Standard International Shipping Packaging
• Specification：86mm*86mm
• Trademark：HESSWAY
• Origin：China
• HS Code：8537109090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. G5-WIFI/RS485-GREENHOUSE CO2 Adjustment Range 350ppm~1999ppm Communication Protocol RS485 Operating Mode Automatic, Manual, Timing Optional Panels White and Gold Rated Voltage AC220V AC230 50Hz Transport Package Standard International Shipping Packaging Specification 86mm*86mm Trademark HESSWAY Origin China HS Code 8537109090 Production Capacity 5000PCS/Year

Product Description

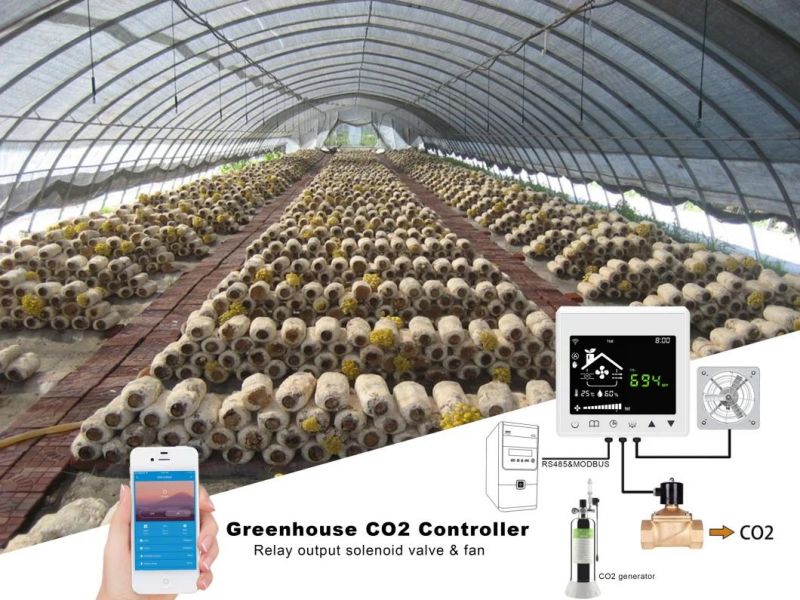

HESSWAY WIFI RS485 laser carbon dioxide co2 sensor controller for greenhouse grow Solenoid valve Ventilation by TUYA APP

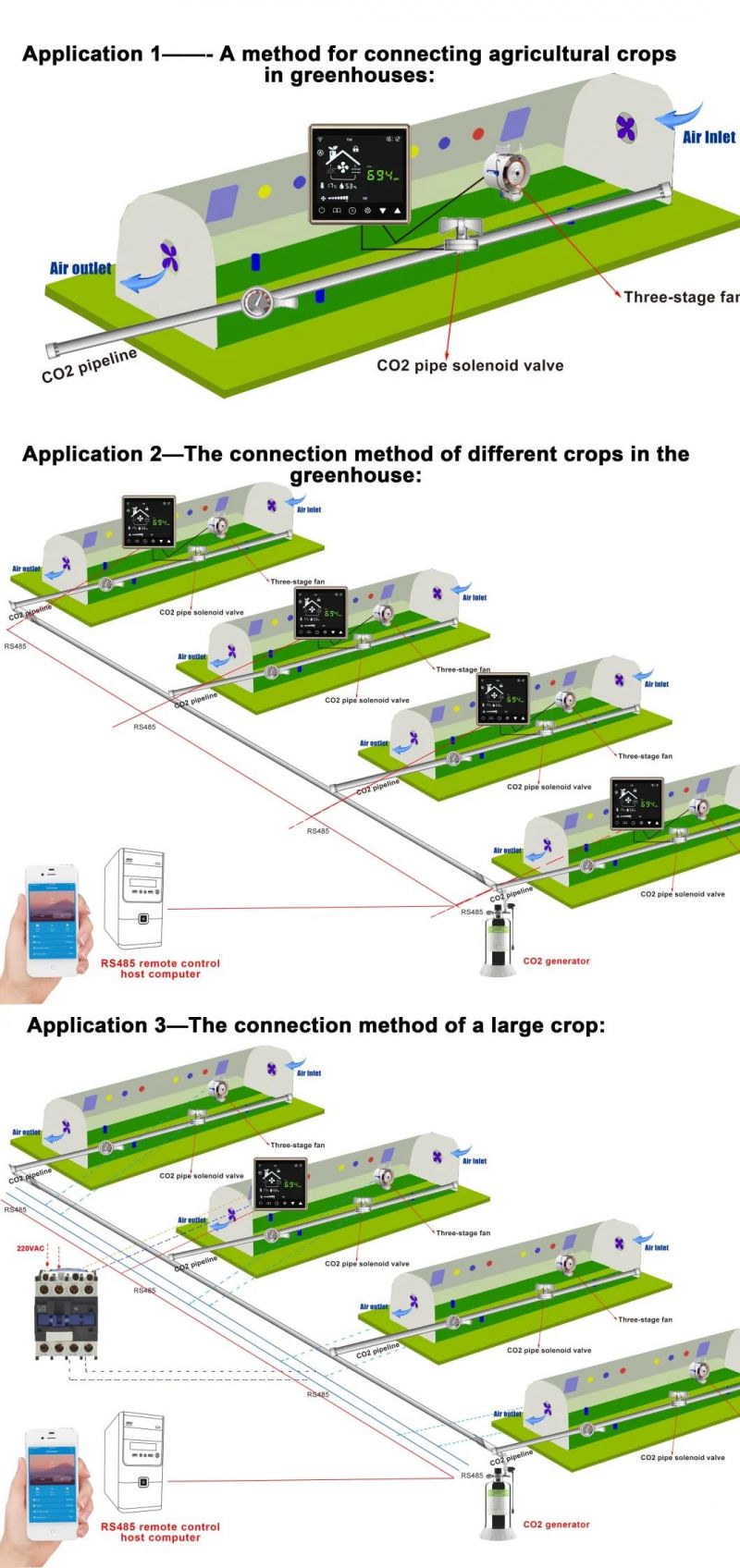

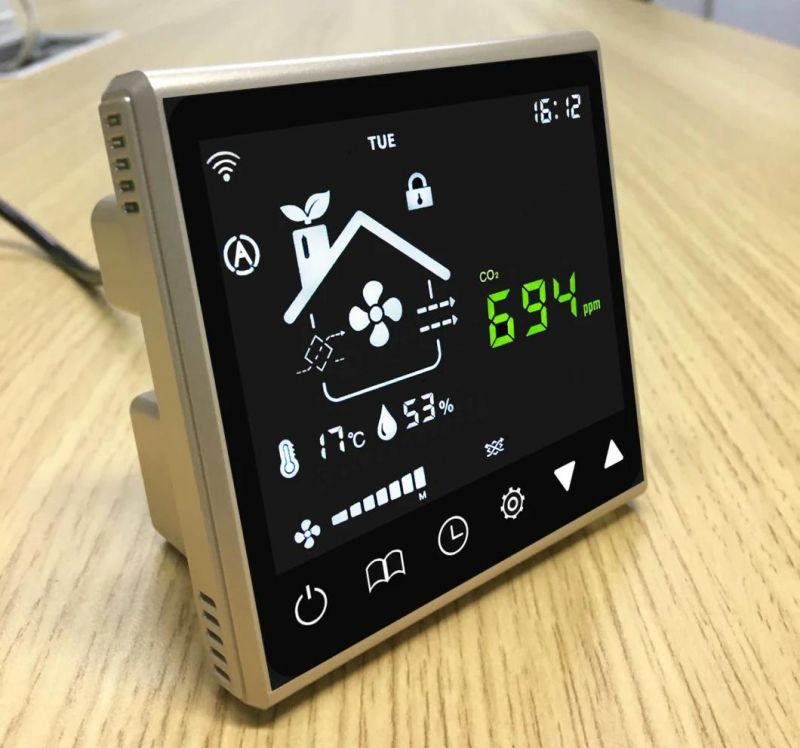

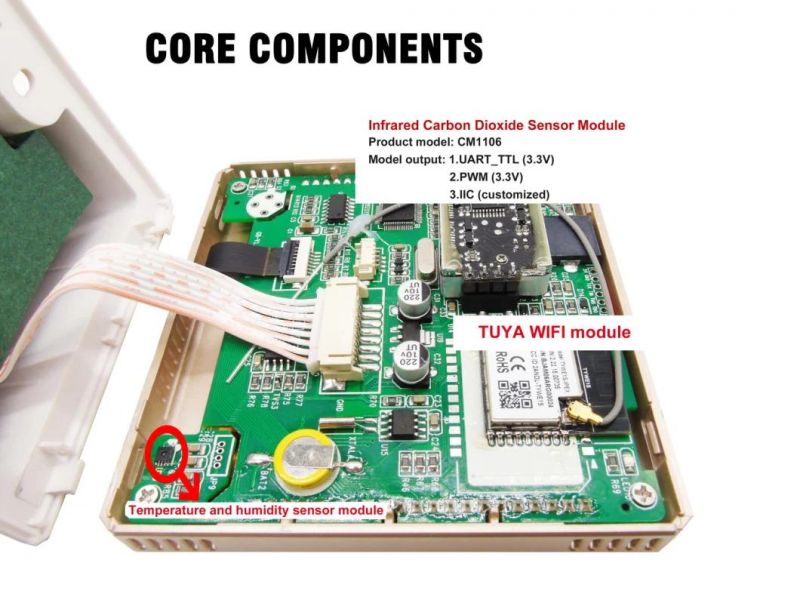

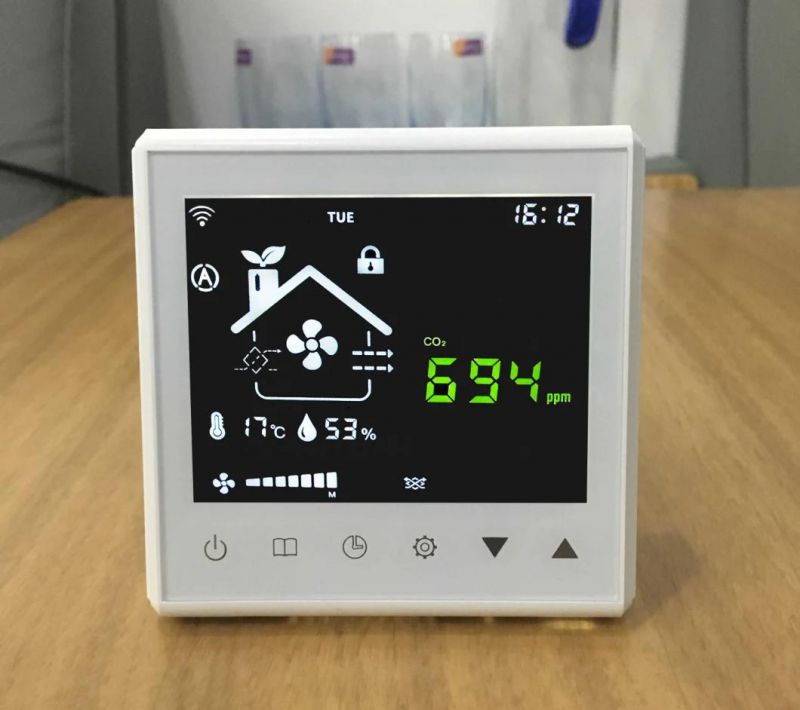

G5 intelligent air controller uses touch button technology, easy to operate. Built-in sensors can monitor real-time greenhouse CO2 concentration. Controller output signal can directly control the startup and speeds of the CO2 generator and fan equipment. It can be Widely used in Agricultural laboratory and quickly cultivate the healthy growth of crops.

Features
CO2 adjustment control range: 350PPM~1999PPM
Operating mode: Automatic, manual, timing
Wind speed mode:High,medium,low and automatic wind speed
Timing Turn on/off the fan and solenoid valve

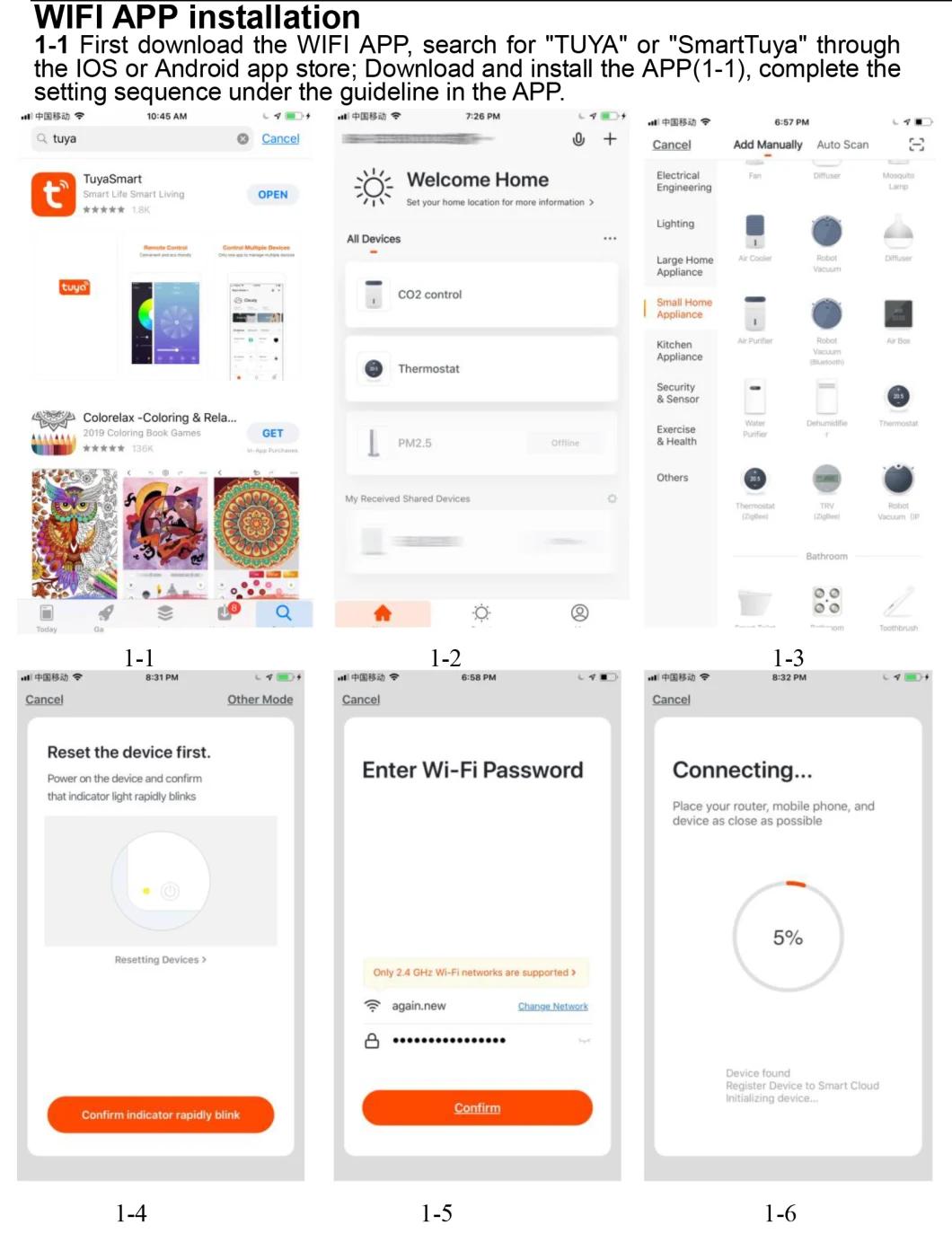

TUYA WIFI mobile APP control

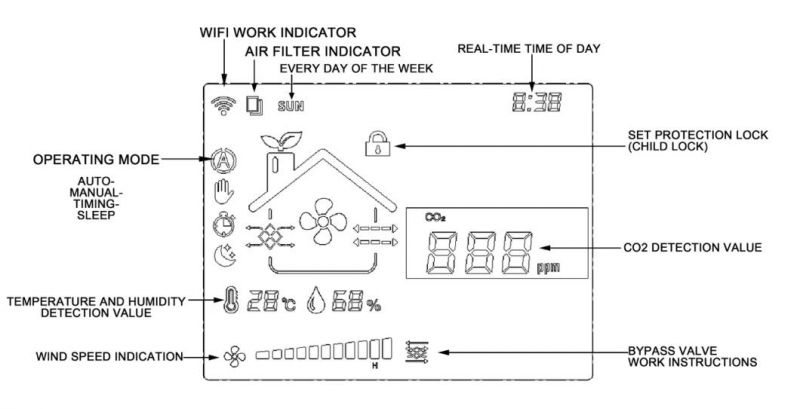

Time display
Temperature display
Humidity display
Automatic & Manual bypass valve control
RS485 communication&Modbus protocol

Parameter
Rated voltage: AC220V/50Hz
Standby power: ≤3.0 W
Control power:≈200 W
CO2 adjustment range: 350~1999ppm
Backlash adjustment: 1~200PPM(lower deviation)
Controlling device:Ventilator with 3 speeds
Warm-up time: 2 min
Response time:≤10 s
Recovery time: ≤30 s
Temperature display range:0~99ºC
Working temperature:-10~+50ºC
Working humidity: 5% ~ 90%
Storage temperature: -10~+60ºC
Storage humidity: <60% RH
Lifetime: ≥3 Year

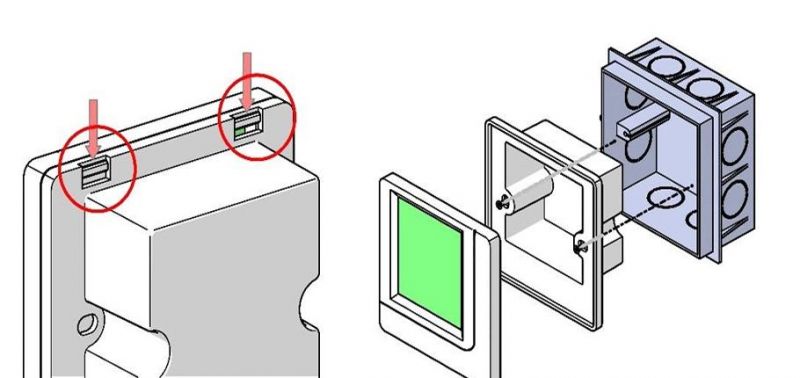

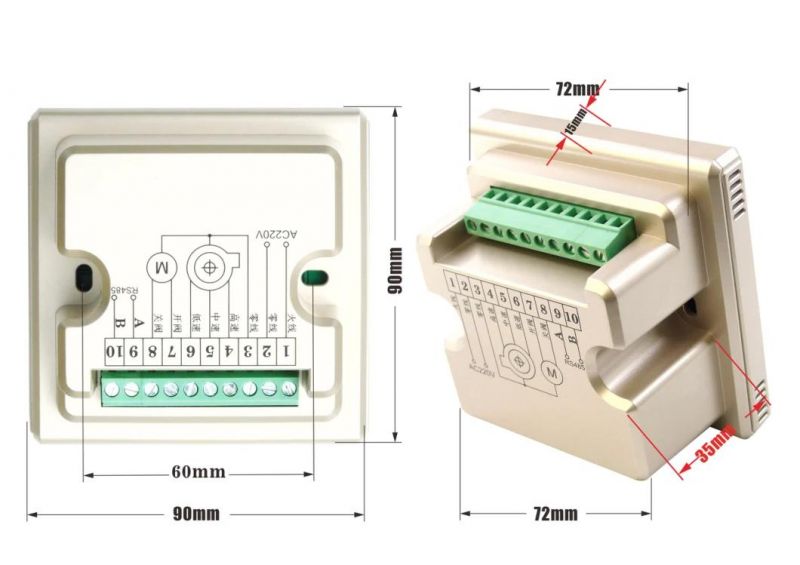

Fixing hole distance: 60 mm (standard)
Dimension: 90×90×35 mm
Wiring terminal:Fit in Max φ2.5 mm2

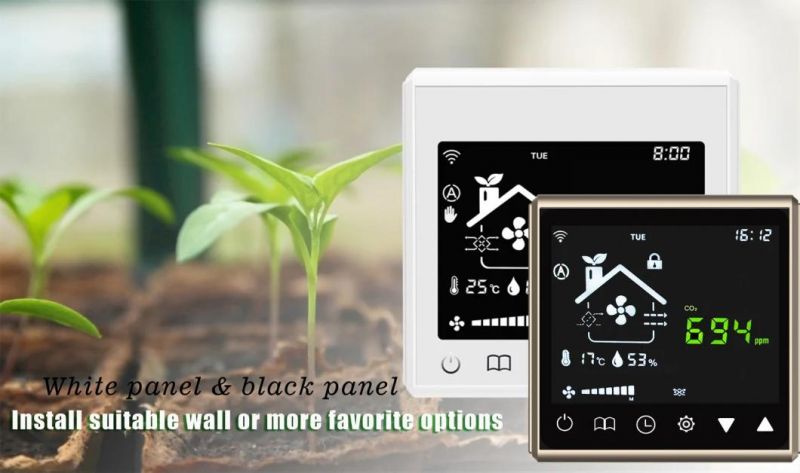

Optional white and gold panel









































Controller × 1

Operating Instructions × 1
RS485 protocol operation manual × 1
Embedded mounting screw × 2
