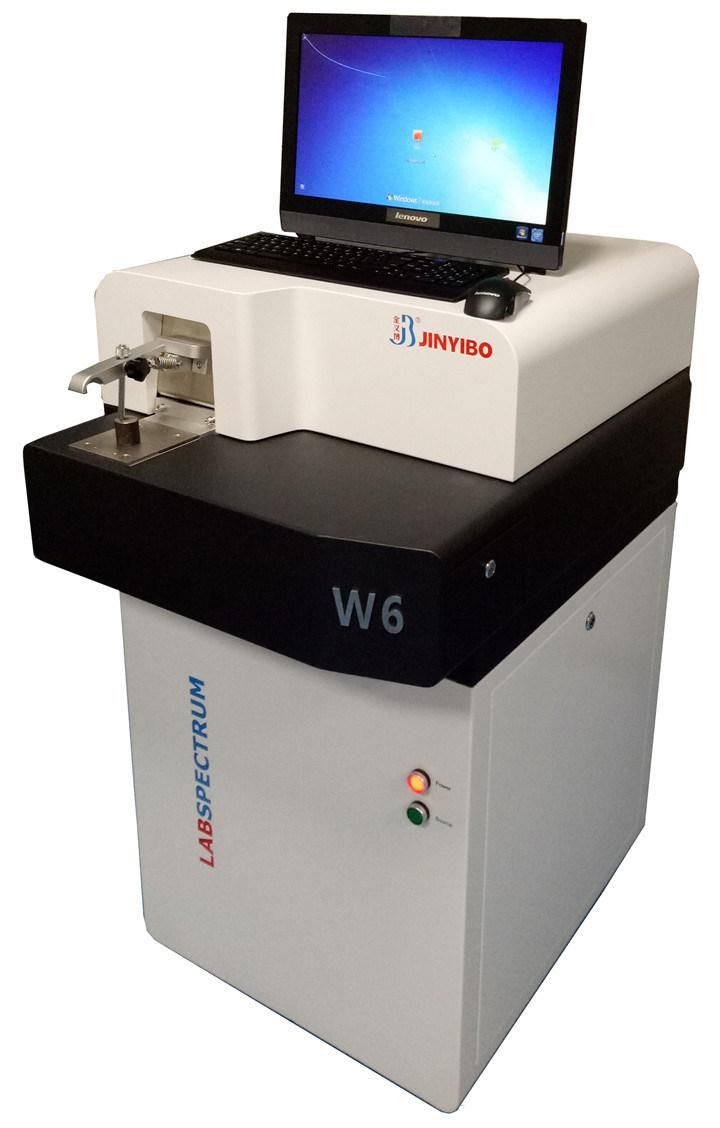

CCD Optical Emission Spectrometer for Cast Iron
Wuxi JinyiBo Instrument Technology Co., Ltd.- Detector：Advanced CCD Detector
- Technological Level：International Standard
- Analytical Method：Full Digital and Spectrum Direct Reading
- CCD Pixel Resolution：6pm
- Grating Lines：3000term,mm
- Light Source Type：All New Adjustable Digital Light Source and Heps
Base Info
- Model NO.：W6
- Excitation Frequency：100-1000Hz
- Vacuum System：Automatic Control and Monitoring Vacuum Software
- Transport Package：Wooden Package
- Trademark：wuxi jinyibo
- Origin：Jiangsu Wuxi
- HS Code：9027300000
- Production Capacity：30 Sets,Month
Description
Item Index Optical System Focal Length400nmWavelength range130nm-800nmDetector High resolution CCD Multi detectorsDegree of vacuumAuto control within 6-20 paPixel resolution30pmGrating line2400m1/mmFirst order spectral line dispersion rare1.2nm/mmAverage resolution ratio10pm/pixelFull spectrumLight room temperature is controlled automaticallySpark SourceType Digital arc and spark sourceSpark frequency100-1000HZPlasma current 1-80AIgnition voltage>15000V
Excitation lightOptimization of discharge parameters designHigh energy precombustion technology HEPS
Processor High-speed data synchronization acquisition and processingSpark Stand Electrode Tungsten electrode technologyMake up Thermal deformation self-compensation designArgon flushed with minimal consumption of ArgonSpray discharge electrode technologyAdjustable electrode technologyOthersMeasurable elementsFe,Al,Cu,Ni,Ti,Co,Zn,Sn,Mg,Pb etcDimension 650mm(L)*860mm*1200mm(H)weightAbout 235kgStorage temperature0ºC-45ºCOperating temperature10ºC-35ºC, 23±2ºC is recommendedPower AC220V/50Hz(Customized)Power consumptionExcitation:700W/Stand by:100WArgon quality99.999%, Argon pressure>4MpaArgon consumption 5L/min during spark modeInterface Ethernet data transmission based on DM9000A
