• Model NO.：VST-6000
• Power(W)：220V( as Needed)
• Weight：45kg
• Color：Gray
• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE
• Trademark：TOP Oil Purifier
• Origin：Chongqing, China
• HS Code：84212990
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. VST-6000 Power(W) 220V( as Needed) Weight 45kg Color Gray Transport Package Standard Export Wooden Case Specification ISO/CE Trademark TOP Oil Purifier Origin Chongqing, China HS Code 84212990 Production Capacity 100 Sets Per/Mouth

Product Description

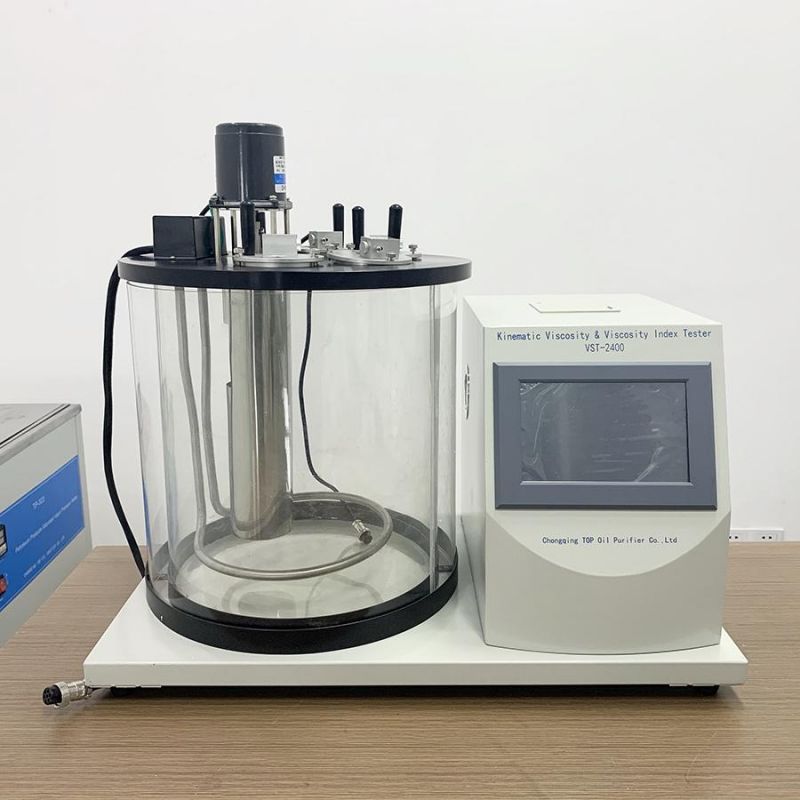

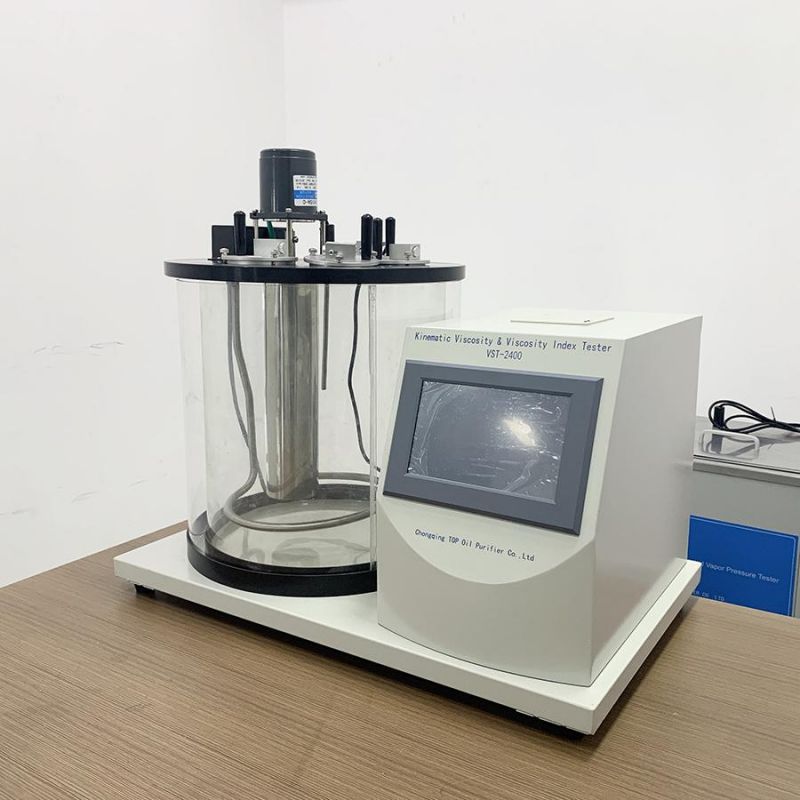

 Application:The tester is applicable for GB265-88, GB1814, ASTM D445, IP71 and other standards. It adopts advanced Single Chip Microcomputer control and color large-screen operation prompts. It has functions of automatic storage of test results, automatic printing of high-speed thermal printers, uniform temperature in the constant temperature bath, placing four viscometers simultaneously and conducting experiments. It can also be used as a high-viscosity constant temperature water bath for other experiments.
Main features:

1. Advanced SCM control, intelligent temperature control, large color LCD display, menu input prompts.
2. With unique modular technology, it can take measurements regardless of low or high viscosity range.
3. Timely display the working status of the instrument such as temperature, time, and parameters.
4. 10-liter thermostatic bathtub, outer plexiglass insulation cover, uniform temperature distribution in the bath, good temperature control effect.
5. The heater and other parts are made of stainless steel, which is corrosion-resistant and durable. It is illuminated by a ring-shaped fluorescent lamp and is easy to observe.
6. Four viscometer mounting holes allow parallel tests on more than two oil samples at the same time.
7. The capillary meter card adopts three-point vertical type, which is flexible and convenient in operation and reliable in clamping.
8. Automatically calculate the kinematic viscosity value and the test average value, and automatically print and store the measurement result.
9. Accurate detection, intuitive display, automatic timing, automatic calculation, and automatic printing of results.

Main technical parameters:

Working standards	GB265-88, GB1814, ASTM D445, IP71, etc.
Capillary Viscometer	SH/T0173-92 Glass Capillary Viscometer Technical Conditions, JJG155 Verification Regulations for Working Capillary Viscometer
Display mode	8 inch LCD touch screen display
Temperature control range	room temperature - 199.99ºC(can be set arbitrarily)
Test range	Kinematic viscosity test range: 0.5-20000mm2/s Dynamic viscosity test range: 0.3-40,000mPa.s
Temperature control accuracy	±0.1ºC or 0.01ºC
Timing accuracy	±0.1S
Timing range	0.1 s-999.9 s
Thermostatic bathtub	250×250mm double layer
Printer	Low energy consumption thermal printer, paper width: 55mm
Temperature measuring element	Imported precision platinum resistance
Stirring speed	1520 r/m
Maximum power	1200W
Number of samples	4
Working environment	Ambient temperature: 15-35°C; Ambient humidity: <less than 85%
Power supply	220V AC±10%50Hz±1Hz
Maximum dimension	560×370×520 (L×W×H)
Weight	20kg



Our Service

Pre -sale Service:                                                       After-sale Service:

1. Reply promptly in 24 hours with fluent English           1. The warranty period is 24 months from commissioning
and professional knowledge.                                          acceptance date on. After the warranty period is over we
2. Provide best necessary spare parts at low                 provide lifelong maintenance and technical service.
price (some for free).                                                      2. We guarantee the maintenance time no more than 3
3. If there is something wrong with the equipment,       working days and response time within 1 hour.
give a response and provide the solutions in 24h          3. We build instrument service profile for our clients to
4. Provide long term technical support and innovation    record the product service and maintenance conditions.
upgrade guidance.                                                          4. After instruments start service, we will pay follow-ups
5. OEM is available for TOP Products.                               to collect the service conditions.
6. Protect sales area, ideas of design and all your
private information.

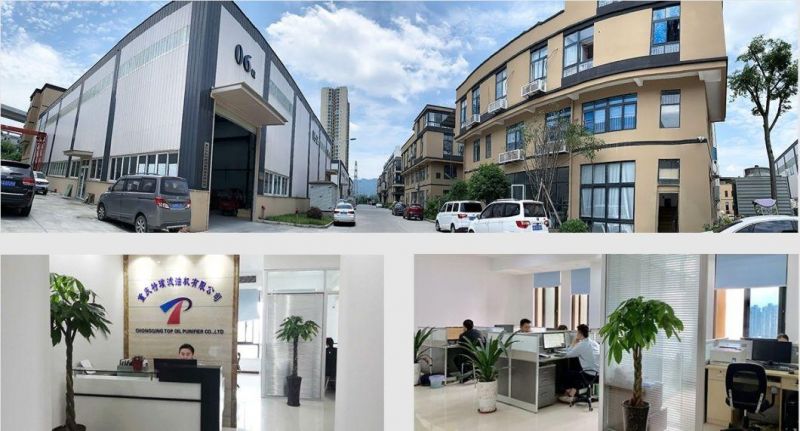

Our Company:


Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We have tremendous strength in the fields of research, development and manufacturing with professional mass-production ability, perfect sales network, excellent after-sales service as well as a perfect image we earned in the competitive market.

Our main products are: Insulting Oil Purifier, Turbine Oil Purification machine, Hydraulic Oil Purifier, Lubricating oil filtration machine, Transformer Oil filtering machine, fuel oil restoration, Steam-Turbine Oil reconditioner, Dielectric fluid regeneration system, Circuit-Breaker Oil recovering system, Compressor Oil recovering machine, Gear Oil renewal machine, Coolant Oil treatment, Quenching Oil reclaiming machine, Oil and Water Separator, Steel-Rolling Oil regeneration equipment, Waste automobile Oil Recycling equipment, petroleum machine and Oil Tester, etc.

Our oil filtration machine:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine

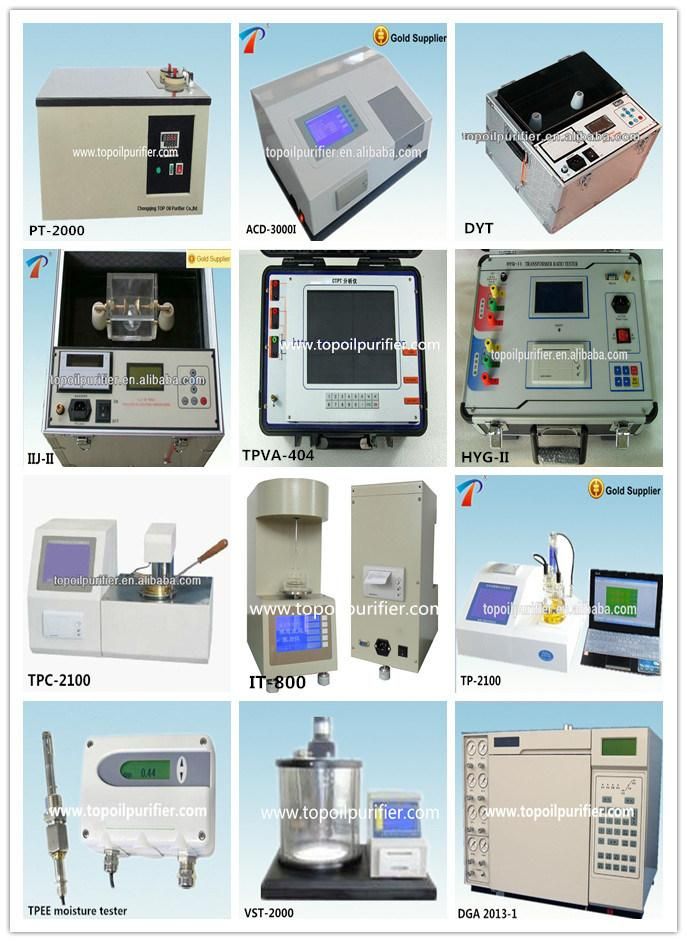

Petroleum Products General Testers:
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800
8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000
14.Multi-functional Vibration Tester VBT-2000
15.Automatic Potentiometric Titrator TP668
16.Petroleum Products Density Tester DST-3000
17.Petroleum Products Density Tester TP-109A
18.Karl Fischer Volumetric Water Content Titrator TPD
19.Distillation Range Tester DIL-201
20.Online Oil Quality Tester PTT-002
21.Liquid Phase Corrosion Tester TPS-05
22.Copper Corrosion Tester TP-113
23.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
24.Dew Point Tester DPME-P
25.Portable Chilled Mirror Dew Point Tester TP-1500
