• Model NO.：GDE-1B-1
• Applicable Environment：Temperature: (15 ~ 28)C
• Warranty Period：One Year
• Transport Package：Packed in Plywood
• Specification：Refer to detailed description
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GDE-1B-1 Applicable Environment Temperature: (15 ~ 28)C Warranty Period One Year Transport Package Packed in Plywood Specification Refer to detailed description Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Sets/ Month

Product Description

Digital Engler Viscometer for Engler Specific Viscosity Test


Introduction of Engler Viscometer:

1. This Engler Viscometer is designed and made as per national standard GB/T266 Petroleum Products- Determination of Engler Viscosity, T0622 Bitumen Engler Viscosity Determination(Engler viscometer method) in national industrial standard JTG052 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering and Shanghai enterprise standardQ/YXYY11 WNE-1 Engler Viscometer.

2. The Engler Viscometer is suitable to determine the rate of time(seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20ºC under certain temperature and cubage. This rate is the Engler viscosity. Unit is Engler degree.


Main Features:

1. The Engler Viscometer is a desktop, one-piece, double inner pot structure, both the inner and outer pots are all made of stainless material.
2. The Engler Viscometer has an integrated refrigeration module, which can fully meet the 25 °C test environment required by the test procedures.
3. The outflow time digital display, parallel tests of two samples can be carried out simultaneously.
4. The temperature controller adopts digital temperature controller with P, I and D position adjustment functions, which is convenient for parameter setting and high temperature control precision.
5. The designed combined Engla viscometer out of the plug was granted a national patent, Patent No.: ZL201821773073.4


Main Parameters:


1	Power supply	AC (220±10%)V, 50Hz
2	Overall Power Consumption	≤1200W
3	Standard water value	K20=(51 ± 1) seconds, (asphalt test:K20 × 0.224)
4	Measuring temperature	(20 ~ 100)ºC
5	Refrigeration temperature control	(20 ± 0.1) ºC, (25 ± 0.1)ºC
6	Temperature control accuracy	± 0.1ºC
7	Applicable environment	temperature: (15 ~ 28)ºC, relative humidity: ≤ 85%
8	Dimension	420mm × 380mm × 590mm
9	Net weight	24kg

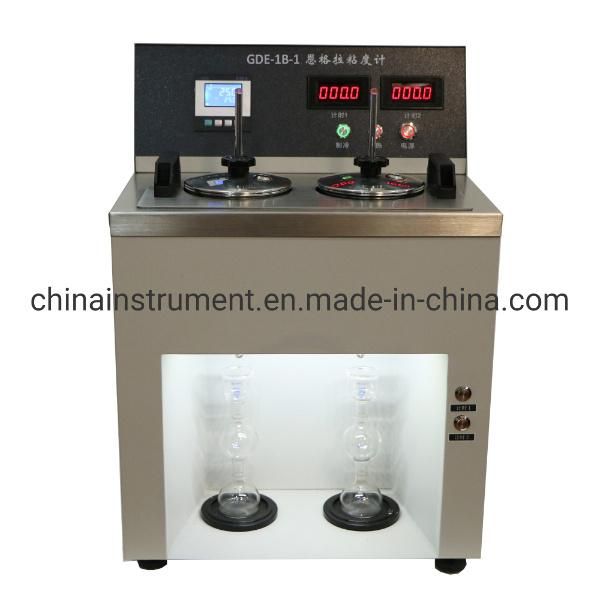

Real Picture:
