• Model NO.：GC-MS3200
• Spectrometer Detector：Si(Li)
• Stationary Phase：Liquid Solvent
• Mobile Phase：Gas
• Chromatography Type：Gas Chromatography
• Chromatographic Column Type：Preparative Column
• Chromatographic Column Length：10~20cm
• Chromatographic Column Diameter：20~40mm
• Transport Package：Wood Case
• Specification：550*400*300mm
• Trademark：NANBEI
• Origin：China
• HS Code：3701100000
• Production Capacity：1000sets,Month

Working Conditions

l Power

220 V, 50 Hz

l Temperature

15ºC-35ºC

l Humidity

25%-80% RH

Specifications

Gas Chromatograph

l Column oven temperature

Room temperature + 10ºC-400ºC

l Temperature stability

≤±0.03ºC

Maximum heating rate

40ºC/min

Maximum run time

999.99 min

10-segment programmable temperature control

l Split/splitless inlet (3rd generation EPC)

Maximum temperature: 400ºC

Electronic controlled pressure, flow rate and split ratio

Pressure range: 0-999 kPa

Flow range: 0-200 mL/min

Autosampler (optional)

Mass Spectrometer

l Main Specifications

Mass range

1.5 - 1024.0 amu

Mass stability

Better than 0.1 amu/48 h

Resolution

Unit mass

Sensitivity

DB-5MS 30m*0.25mm*0.25um fused silica capillary column or similar column.

EI source, full scan: (range 100-300 amu).

1 pg OFN  S/N≥100:1

Maximum scan rate

10,000 amu/s

Dynamic range

105

l Ion source

Electron impact ionization source (EI), standard.

Chemical ionization source (CI), optional.

Dual filaments

Programmable switch

Maximum filament current

3 A

Emission current

10 - 350μA adjustable

Ionization energy

5 - 150eV adjustable

Ion source temperature

150 - 320ºC adjustable, individually controlled

l Mass analyzer

Quadrupole.

Full scan, selected ion monitoring (SIM) and acquisition.

At most 128 groups in SIM mode.

At most 128 ions in each group.

l Detector

electron multiplier + high-energy dynode back focusing assembly

l GC-MS interface

Individually controlled through transmission cable, 150 - 320ºC adjustable

l Vacuum system

Turbo molecular pump (250 L/s), mechanical pump (180 L/min)

Wide range compound cold cathode gauge

l Data processing system

Hardware

Computer (optional)

Printer

Laser printer (optional)

Software

MS3200RT Real-time data acquisition application and MS3200P data processing application

Optional Accessories

DIP 100 liquid/solid direct injection probe assembly

Thermal desorption device

Dynamic headspace sampler

Purge-and-trap sample concentrator

FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.

Pre-sale service
· 24hours online to ensure quick response to customers' inquiry or online message;
· Guide customers to choose the best suitable machine model;
· Offer detailed specification and competitive prices;
Contract execution
· Machine production will be arranged strictly according to the contract;
· Machine photos will be sent to you for inspection during production;
· Send customs clearance documents by DHL;
· Update latest news after delivery and prepare customs clearance;
After-sale service
· 12 months warranty except for wear parts;
· Broken spare parts (except for wear parts) will be sent for free due to quality problems;
· In time response to customers technical problems;
· New products update for customers' reference

Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!

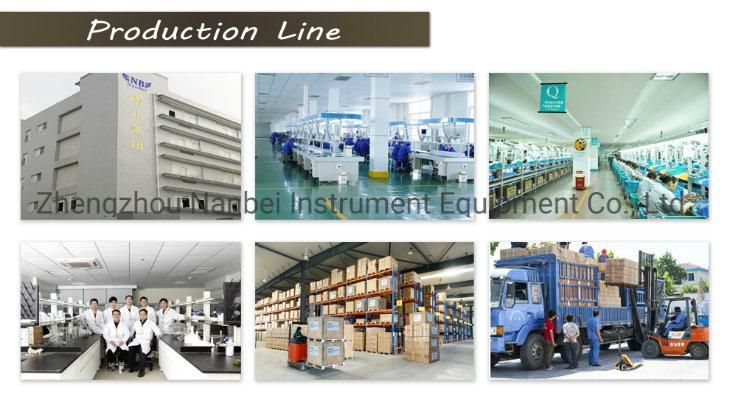

Factory Show:


Certification:
Our products have international certifications such as SGS, CE, ISO!

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
