• Model NO.：PFG-3085
• Specification：SGS
• Trademark：BOQU
• Origin：Shanghai
• HS Code：9027809900
• Production Capacity：1000piece,Month

Basic Info.

Model NO. PFG-3085 Specification SGS Trademark BOQU Origin Shanghai HS Code 9027809900 Production Capacity 1000piece/Month

Product Description

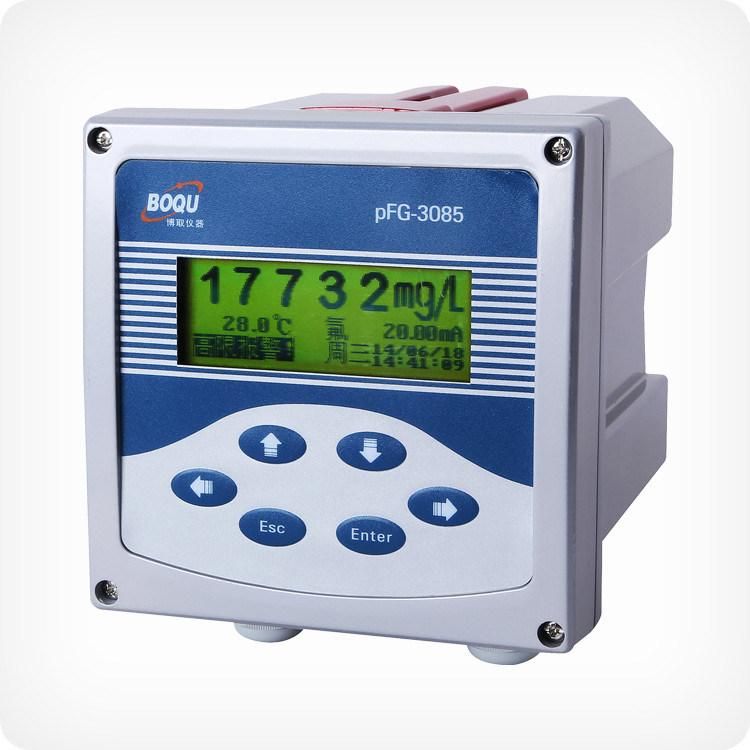

PFG-3085 Industrial Fluorine Ion Detector is our company's latest micro-computer based high-end instrument. It is designed to measure fluorine ion on-line monitoring. It is suitable for the occasion of containing fluoride ion.

Features
New Design, Aluminium shell, Metal texture, high level E-time water analyzer.
English LCD display, English menu operation, English notepad: It adopt menu structure similar to computer operation, simple operation, the steps throughout the English tips, without instructions, it can be completed
Multi-parameter display: The concentration value, temperature, time and status can be displayed on the screen at the same time.
Intelligent: On-line Fluorine Ion Detector adopts high-precision AD conversion and single chip microcomputer processing technologies. It can be used for the measurement of the Fluorine ion concentration value and temperature, automatic temperature compensation, self-checking etc various functions
Reliability: All the components are arranged on one circuit board. No complicated functional switch and adjusting knob
Strong interference immunity: Its current output adopts optoelectronic isolating technology. This meter has strong interference immunity and the capacity of long-distance transmission as well as excellent electromagnetic compatibility
Waterproof and dust-proof design: Its protection grade is IP54. It is applicable for outdoor use
Automatic timing calibration: It can ensure the stability and reliability of the measurement instrument
RS485 communication interface: It can be easily connected to a computer to perform monitoring and
communication.
Solution grounding: It can eliminate all the disturbance of the ground circuit
Instrument not crash: Watchdog procedures to ensure that the instrument will not working continuously crash
Software set current output:0~10mA or 4~20mA outputs, it does not require users to dial any switch

Technical Indexes

1. Measuring range: fluorine ion concentration:0.2ug/L~5000mg/L temperature:0~99.9ºC

2. Resolution: fluorine ion concentration:0.1ug/L, temperature:0.1ºC

3. Automatic temperature compensation range:: 0~99.9ºC,with 25ºC as the reference temperature

4. Accuracy:±2.5%,±0.3ºC

5. Solution tested:: 0~99.9ºC, 0.6MPa

6.Stability:±1.5%/24h

7.Response speed:32/s 25ºC,50/s 15ºC

8. Clock accuracy: ±1 minute/month

9. Isolated current output: 0-10mA (load resistance <1.5KΩ);

4-20mA (load resistance <750Ω)

10. Output current error: ≤±1%FS

11. Data storage capacity: l month (1 point/5 minutes)

12. Alarm relay: AC220V, 3A

13. Communication Interface: RS485(optional)

14. Power supply: AC220V±22V, 50Hz±1Hz,24V DC(optional)

15. Protection grade: lP54, it is applicable for outdoor use.

16. Overall dimension: 146 (length) x 146 (width) x 150 (depth) mm; dimension of the hole: 138 x 138mm

17. Weight: 1.5kg

18. Working conditions: ambient temperature: 0-60ºC; relative humidity <85%





Attention:
Output signal 4~20mA: current output of measured fluorine ion value
If you need a temperature corresponding to the 4~20mA current output of dual output, because of requires special order, you must specify when ordering.
