• Model NO.：TPC-3000
• Dimension：397*305*240mm
• Transport Package：International Standard Export Box
• Specification：CE
• Trademark：TOP TESTER
• Origin：China
• HS Code：9031809090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. TPC-3000 Dimension 397*305*240mm Transport Package International Standard Export Box Specification CE Trademark TOP TESTER Origin China HS Code 9031809090 Production Capacity 100 Sets/Month

Product Description

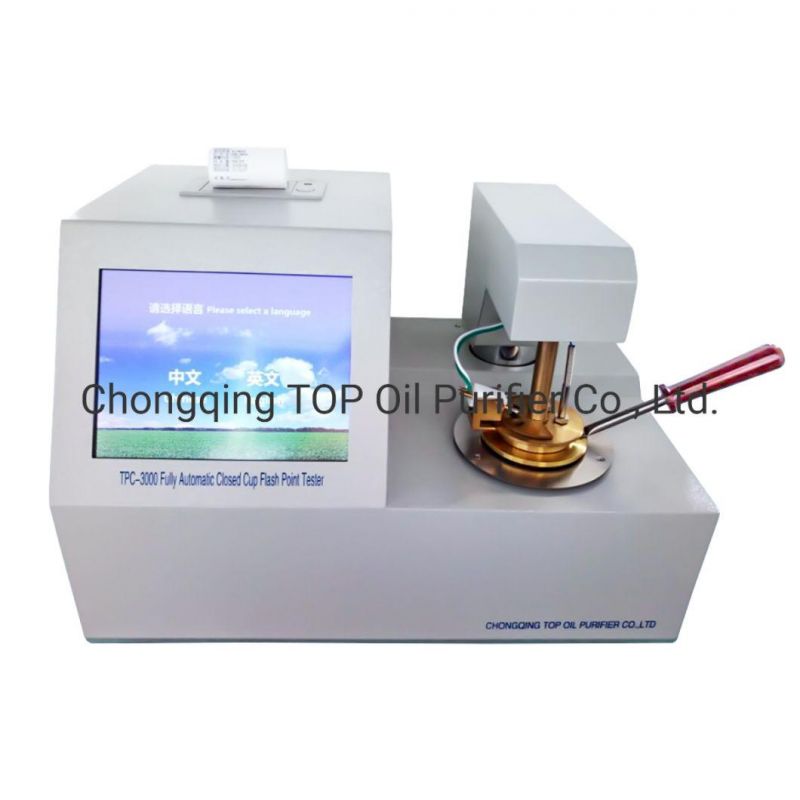

TPC-3000 Fully Automatic Flash Point Analyzer (Closed-Cup)
Application:
TPC-3000 fully automatic flash point analyzer(closed-up) is designed in accordance with ASTM D93 IGB261-2008, SH/T0315 etc. It adopts microcomputer technology to achieve completely automatic operation. It has the function of self fault checking ,highly accurate testing, with strong repeatability, stable and reliable performance. It is an ideal flash point analyzer(closed-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.

Main Features:
1.Color touch LCD screen display, man-machine conversation interface in English with menu instructions.
2.Adopts high speed signal processor: precision simulation/digital converter circuit.
3.Adopts PID control algorithm: automatically adjust the heating curve according to standards.
4.Built-in automatic atmospheric pressure detector: automatic to detect and correct the atmosphere pressure and self-adjust the flash point.
5.Aspiration,stirring,testing,alerting,cooling,printing are fully automatic.
6.Automatically finish the whole testing process, opening the lid, alerting, cooling, printing etc.
7.Security airless source of platinum alloy :stable,reliable and high precision
8.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
9.With parameters reminders like: test date, test time etc.
10.Data storage: store 300 groups testing data.

Technical parameter

Display	Color touch LCD display screen
Test method	Thermocouple differential detection
Test range	Room temperature-350ºC
Resolution	0.1ºC
Repeatability	National standard: flash point<104ºC,allowed ±1ºC; flash point≥104ºC allowed ±2ºC National standard: flash point≤110ºC,allowed ±1ºC; flash point>110ºC allowed ±2ºC
Printer	High speed thermal printer,paper size:55mm
Temperature test	Imported platinum resistance (Pt100Ω)
Ignition mode	Automatically electronic without need of gas source
Self-checking	automatic fault checking
Power	<550w
Temperature	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power supply	AC220V±10%
Dimension	397*305*240 mm
Weight	About 15 kg
