• Model NO.：SD-033A
• Specification：ISO,CE
• Trademark：TOP
• Origin：China(Mainland)
• HS Code：9101199000
• Production Capacity：200,Month

Basic Info.

Model NO. SD-033A Specification ISO/CE Trademark TOP Origin China(Mainland) HS Code 9101199000 Production Capacity 200/Month

Product Description

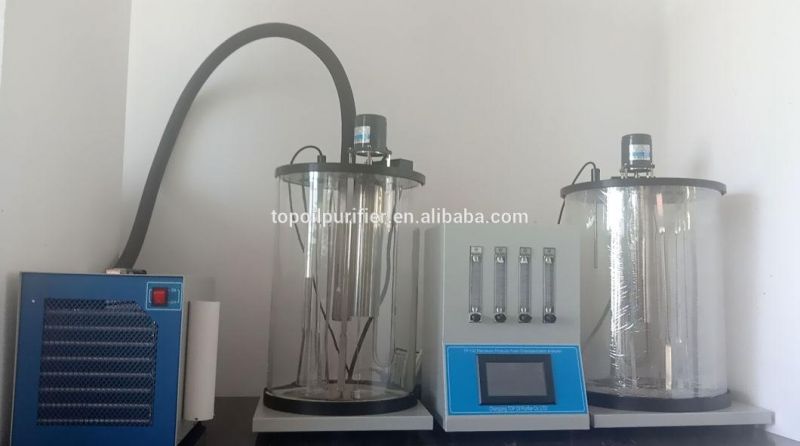

Lubricating Oil Foam Characterization Analyzer Model SD-033A

Model
SD-033A
Standards
This instrument is designed and manufactured in accordance with GB / T 12579 "Determination of Lubricating Foam Characteristics", ASTMD892 and IP146. It is suitable for the determination of lubrication according to GB / T 12579, ASTMD892 and IP146 standard test methods, used for determination of the foam forming tendency and the stability of the foam.


Features
1. Standard control: embedded system temperature control, large-screen LCD display.
2. The air flow is separately controlled and adjustable.
3. Bath: Has 24ºC and 93.5ºC two sets of bath temperature and flow which are controlled separately.
4. Hard glass cylinder bath, beautiful appearance, convenient observation.
5. Automatic timing and alarm function.

Technical Parameters
1,Temperature range: 20~100ºC
2,Heating power: 3.0KW /3
3,Temperature control point: 24ºC±0.1ºC / 93.5ºC±0.1ºC
4,Temperature control accuracy: ±0.1ºC
5,Air flow: 94mL/min±5mL/min
6,Timer: 0~99min59s with resolution of 1s1s
7,Power supply: AC220V±10% 50Hz

Standard configuration


No.	Name	Model & Specification	Unit	Quantity
1	Host		set	1
2	Foam measuring cylinder	-5ºC~+400ºC (The graduation is 1ºC)	piece	4
3	Ventilation rod		piece	2
4	thermometer	0~50ºC,50~100ºC	piece	1 for each
5	Gas diffusion joint		piece	4
6	Silicone tube		meter	3
7	Test tube stopper		piece	4
8	Air dryers		piece	1
9	air pump		piece	1
10	refrigerator		piece	1
11	power cable		piece	1
12	fuse		piece	2
13	Instructions		piece	1
14	Certificate		piece	1
15	Dust cover		piece	1
