• Model NO.：GD-ISO1716
• Inner Cylinder Volume：2000ml
• Maximum Power：0.5kw
• Stirring Speed：375r,Min
• Transport Package：Plywood Case
• Specification：ISO
• Trademark：Gold
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. GD-ISO1716 Inner Cylinder Volume 2000ml Maximum Power 0.5kw Stirring Speed 375r/Min Transport Package Plywood Case Specification ISO Trademark Gold Origin Chongqing, China HS Code 9031809090 Production Capacity 300 Sets Per Month

Product Description

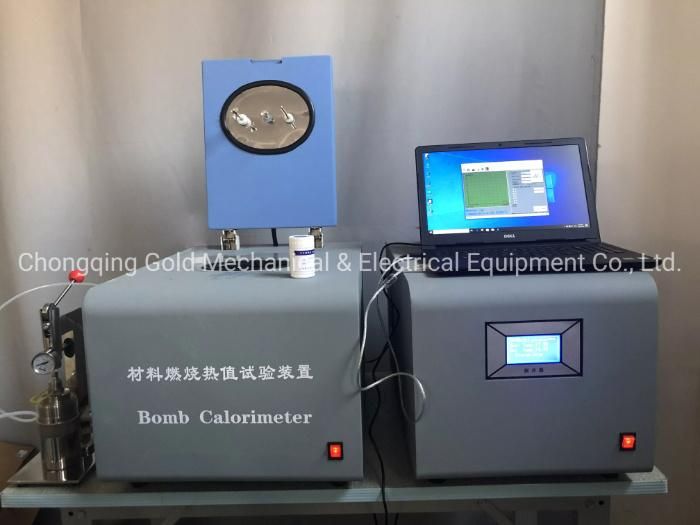

           ISO1716 Bomb Calorimeter for Building Materials

Introduction:The combustion calorific value test device for building materials was developed according to the GB14402 standard. In order to test the calorific value of building materials, a certain quality of building materials is put into a constant volume oxygen bomb calorimeter to test the calorific value of burning materials

Standard:
•ISO 1716-2002
•GB/T 14402-2007
•GB/T8624-2012

Main Features:
1, The apparatus including  calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer, and control system (which can record and display the curve), LCD screen and software;
Crucible made of stainless steel;
2, Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean;
3, Ignition wire break is detection and automatic ignition.4, The test procedure automatically turns off.
5, Test abnormalities have a sound alarm.
6, Computer control system:
7, Control box with USB / RS232 serial port with an external brand desktop or laptop operating control; High degree of automation, test procedure safe and reliable, easy to operate;

Specification:
1, Bomb capacity: (300 ± 50) mL.
2, Oxygen bomb pressure range: 0.5 ~ 3.5MPa, no leakage. The bomb pressure 21Mpa.
3, Timer: accuracy of 0.5s;
4. Maximum power: 0.5KW;
5, Ambient temperature: (10 ~ 35) ºC, humidity ≤80%;
6, Heat capacity of the instrument: about 10000J / K;
7. Heat repeatability error: ≤0.2%;8, Temperature range: (4.5-50) ºC;
9, Temperature detection: 0.0001 ºC resolution, using the PT100 sensor;
10,Inner cylinder volume: 2000ml; Oxygen bomb Sealing: oxygenation pressure 2.5 ~ 3.5MPa, no leakage;
11, Motor power: 3W; stirring speed: the inner tube (375r/min);
12, Power supply voltage: AC220V ± 10% 50Hz
