• Model NO.：TRGC-MS-4100,4110,4200
• Stationary Phase：Solid Adsorbent
• Mobile Phase：Gas
• Chromatography Type：Mass Spectrometry
• Chromatographic Column Type：Mass Spectrometry
• Chromatographic Column Length：10~30cm
• Chromatographic Column Diameter：0.2~0.5mm
• Quality：Same as OEM
• Weight of The Instrument：42kg
• Scanning Speed：Adjustable to a Maximum 10000amu,Sec
• Warranty Period：2 Years
• Transport Package：Paper,Wood Box
• Specification：AC 100-240V, 50Hz,60Hz
• Trademark：TRYTE
• Origin：China,Hongkong
• Production Capacity：1500PCS,Year

Fast and efficient qualitative analysis. Quantitative analysis is accurate and reliable.
High degree of automation featuring EPC controlled gas flow and pressure
Two scan modes are available: SCAN and SIM
Software is available with Chinese and English interface
Software can be configured with international standard libraries, such as NIST, WILEY, DRUG and among others, also features automated quick search and match
This instrument is designed for on-site emergency response and meets the "Mobile Laboratory Equipment General Technical Requirements"
Mass range: 1.5 - 800 amu
Mass resolution (FWHM defined): 1.5 - 2 M
Scan speed: Adjustable, maximum 6000 amu/sec
Mass accuracy: ± 0.2 u
Mass stability: ± 0.15 u/24 hours
Sensitivity: 1pg octafluoronaphthalene (signal to noise ratio > 30:1)
MS interface: direct connection to capillary column, helium carrier gas flow rate ≤ 1 mL/min
Vacuum System: Standard 70 L/s air-cooled molecular turbo pump with pre-pump, optional 250 L/s molecular turbo pump
Custom suspension system design, with specialized gas supply and power system
Applications: Public safety, environmental monitoring, food safety and other emergency mobile laboratory applications

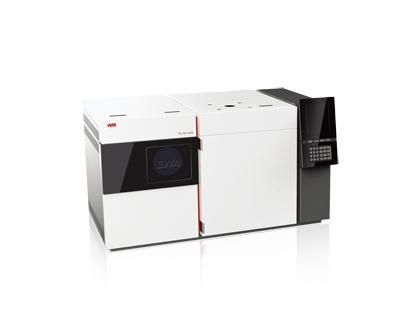

TRGC-MS 4200 Gas Chromatograph - Mass Spectrometer (Quadrupole)

China's first commercialized second-generation GC-MS product
Features include an improved filament control module that intelligently adjusts the electron emission current and electron energy, and a unique DC equalization technique that further improves the signal to noise ratio.
An industry-first high-speed DC compensation technology optimizes the relative ion transmission rate, effectively improving resolution.
The adjustable positive chemical ionization (PCI) feature improves the overall performance of the system while simultaneously expanding the instrument's applications.
High-speed scan and sampling circuit allows for a sufficiently large amount of data points.
Our new GC with improved GC temperature control accuracy and our latest electronic pressure and flow control module has vastly improved the system's repeatability.
The GC-MS 3200 is more reliable, and easier to operate, install and maintain.
Features a new industrial design that elegantly combines both form and function.

Packing:



Company Information:

      As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
      TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.
