• Model NO.：GE3842T-S
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Non-Customized
• Temperature Range：0~100ºC
• Heating Rate：4.5ºC,S
• Cooling Rate：4ºC,S
• Uniformity：≤±0.2ºC
• Accuracy：≤±0.1ºC
•  Capacity：384well
• Transport Package：Standard Carton Packing
• Specification：390mm×270mm×255mm (L×W×H)
• Trademark：WESTTUNE
• Origin：China
• HS Code：9027809990
• Production Capacity：1000

Basic Info.

Model NO. GE3842T-S Power Supply 220V Weight 0-50kg Certification CE Customized Non-Customized Temperature Range 0~100ºC Heating Rate 4.5ºC/S Cooling Rate 4ºC/S Uniformity ≤±0.2ºC Accuracy ≤±0.1ºC  Capacity 384well  Transport Package Standard Carton Packing Specification 390mm×270mm×255mm (L×W×H) Trademark WESTTUNE Origin China HS Code 9027809990 Production Capacity 1000

Product Description

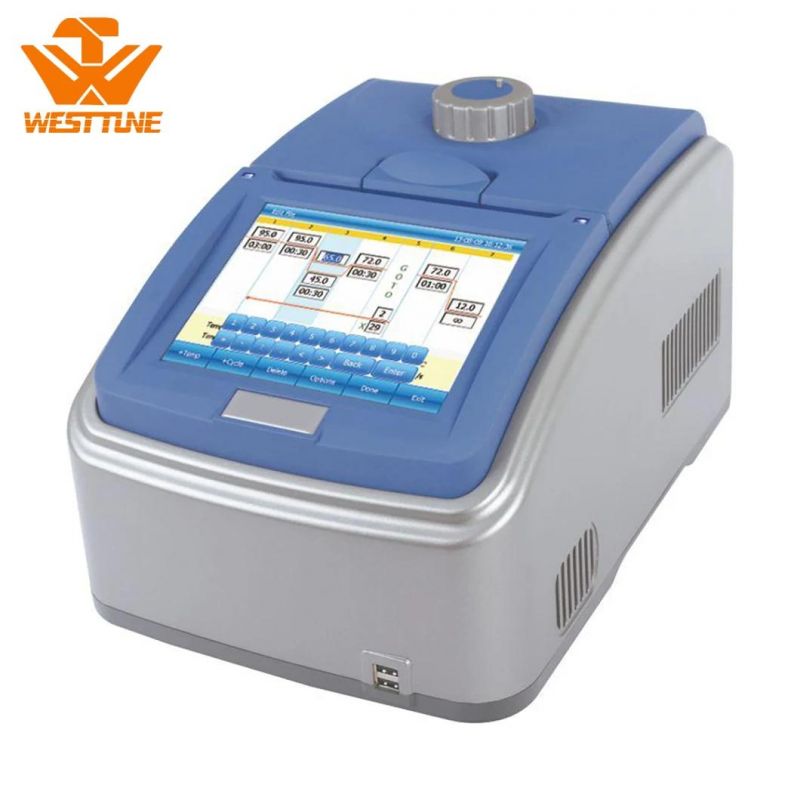

GE3842T-S 384 in situ gradient PCR Six Pieces Peltier Heating Units
   GET-S uses 6 pieces of standard Marlow(US) peltier. Its max. ramping rate is 4.5 ºC/s and cycle times is more than 200,000. The product combines a variety of advanced technologies: Windows system; color touch screen; several block as options; PC on-line function; printing function; big storage capacity and support USB device. All above functions allow PCR's excellent performance and meet higher experiment's need.






Features:

1. Six pieces of long service life Peltier heating units and form 3 circuits to control 3 temperature zones;
2. Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
3. High heating and cooling rate, max. Ramping rate 4.5 ºC/s, can save your precious time;
4. Stepless adjustable hot lid, fit tubes of different heights to avoid tube melt and evaporation.
5. Windows interface, 8" ( 800×600, 16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
6. Built-in 11 standard program file template, can quickly edit the required files.
Folder management, user can build directory.
7. The running program and left time can be displayed in real time, allow to edit file when program is running.
8. One-click quick incubation function can meet experiment's needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
9. Internal flash memory for 10000 typical PCR files in free configurable folders.
10. Hot lid temperature and hot lid work mode can be set to meet different experiment's need.
11. Automatic restart after power failure. When power is restored it can continue to run unfinished program.
12. GLP report records every step to provide accurate data support for experiment result analysis.
13. User Login Management, three-tier permission, password protection function to ensure data security.
14. Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
15. Support USB and LAN to update software.
16. One computer can control many sets of PCR via network connection.
17. Min type Bluetooth printer as an option, easily record information.


Specification:

Model No.	GE3842T-S
Capacity	384well
Temperature Range	0~100ºC
Heating Rate	4.5ºC/s
Cooling Rate	4ºC/s
Uniformity	≤±0.2ºC
Accuracy	≤±0.1ºC
Display Resolution	0.1ºC
Temperature Control	BlockTube
Ramping Rate Adjustable	0.1~4.5ºC
Gradient Uniformity	≤±0.2ºC
Gradient Accuracy	≤±0.2ºC
Gradient Temp. Range	30~100ºC
Gradient Spread	1~30ºC
Hot Lid Temperature	30~110ºC
Hot Lid Height Adjustable	Stepless Adjustable
Number of Programs	10000 +(USB FLASH)
Max.No.of Step	30
Max.No.of Cycle	100
Time Increment/Decrement	1 Sec ~ 600 Sec
Temp. Increment/Decrement	0.1~10.0ºC
Pause Function	Yes
Auto Data Protection	Yes
Hold at 4ºC	Forever
Language	English
Print	Yes
LAN to computer	Yes
LCD	8 inch,800×600 pels,
Communication	USB2.0 , LAN
Dimensions	390mm×270mm×255mm (L×W×H)
Weight	9kg
Power Supply	85~264VAC , 47~63Hz , 600 W
