Automatic Limited Oxygen Index Loi Analyzer ASTM D 2863
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Item Name:Automatic Limited Oxygen Index Loi Analyzer
- Standard:ASTM D 2863, ISO 4589-2
- Application:Plastics Oxygen Index Burning Chamber
- Oxygen Concentration Measurement Range:0 to 100%
- Controller:Automatic Mass Flow
- Size:600mm(W) * 370mm(D) * 350mm(H)
Base Info
- Model NO.:GD-01005
- Power:220V, 60 Hz, 10.25A
- Manual:Provided
- Transport Package:Plywood Case
- Trademark:GOLD
- Origin:Chongqing China(Mainland)
- HS Code:9031809090
- Production Capacity:500 Sets, Year
Description
Basic Info.
Model NO. GD-01005 Power 220V, 60 Hz, 10.25A Manual Provided Transport Package Plywood Case Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ YearProduct Description

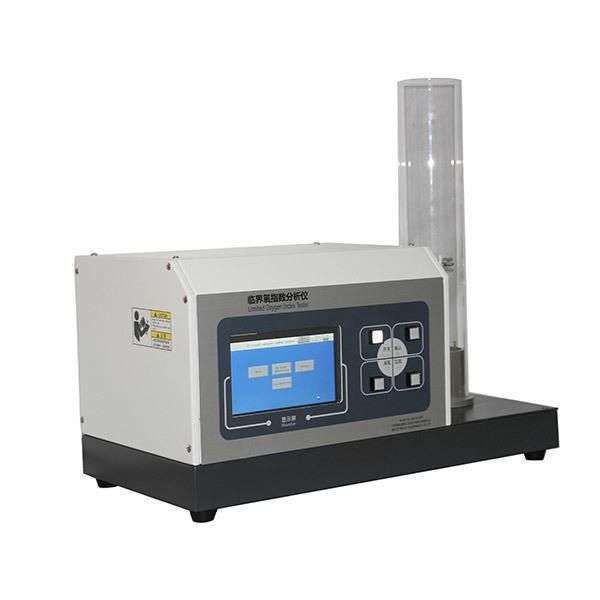

GD-01005 Automatic ASTM D 2863, ISO 4589-2 Limited Oxygen Index LOI Analyzer
Introduction:
The oxygen index tester is designed to test combustibility by oxygen concentration, letting the user know minimum oxygen concentration as necessary for combustion.
The working principle is: Place the specimen into the testing chimney, filling with oxygen and nitrogen into the chimney, ignite the specimen, then measure the min concentration of oxygen to support continuous combustion.
Reference Standards:
ASTM D 2863
ISO 4589-2
NES 714
Specifications:
Oxygen concentration measurement range | 0-100% |
Resolution | 0.1% |
Accuracy | +/-0.2% |
Response time | <300ms |
Oxygen stability time | <30s |
Oxygen concentration sensor | England Servomex Paramagnetic type oxygen sensor, accuracy: +/-0.1% |
Gas displacement | 50L/S |
Size | 600(W)*310(D)*545(H)mm |
Workbench size | 1500(W)*600(D)*800(H)mm |
Weight | 30kg |
Power supply | AC 220V, 50/60Hz, 5A |
Features:
Adopts England original Servomex Paramagnetic type oxygen sensor, which accuracy can be up to +/-0.1%;
The sensor is better than the traditional electrochemical sensor because it doesn't need to change oxygen battery, so, it has long lift time more accurate and faster response time.
Equipped with 2pcs Mass Flow Controller(MFC) to control N2 and O2 mixing ratio;
Equipped with high-temperature quartz glass tank;
Equipped with supported and unsupported sample clamps;
Equipped with portable ignition device, gas tank connector, accurate pin valve to adjust the flame;
Digital setting N2 and O2 concentration;
Computer+LABVIEW software to control N2 and O2 mixing ratio, read O2 concentration in mixing chamber, and store&print out test results;
Reserve a calibration port to calibrate the sensor;
Stainless steel air channel design, equipped with one way fire-resistance valve, magnetic valve, a fine filter, so, it is stable and safe;
Patented design gas mixing chamber, which ensures the gases can mix the gases in short time, data is more accurate;
