• Model NO.：TP-6698
• pH Measuring Resolution：0.001pH
• pH Measuring Accuracy：0.003pH
• Temperature Measuring Range：0~100c
• Max Titration Station：6
• Max Liquid Filling Module：4
• Burette：5ml, 10ml, 25ml
• Burette Resolution：1,48,000
• Transport Package：International Standard Export Box
• Trademark：TOP TESTER
• Origin：China
• HS Code：9031809090
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. TP-6698 pH Measuring Resolution 0.001pH pH Measuring Accuracy 0.003pH Temperature Measuring Range 0~100c Max Titration Station 6 Max Liquid Filling Module 4 Burette 5ml, 10ml, 25ml Burette Resolution 1/48,000 Transport Package International Standard Export Box Trademark TOP TESTER Origin China HS Code 9031809090 Production Capacity 60 Sets/Month

Product Description

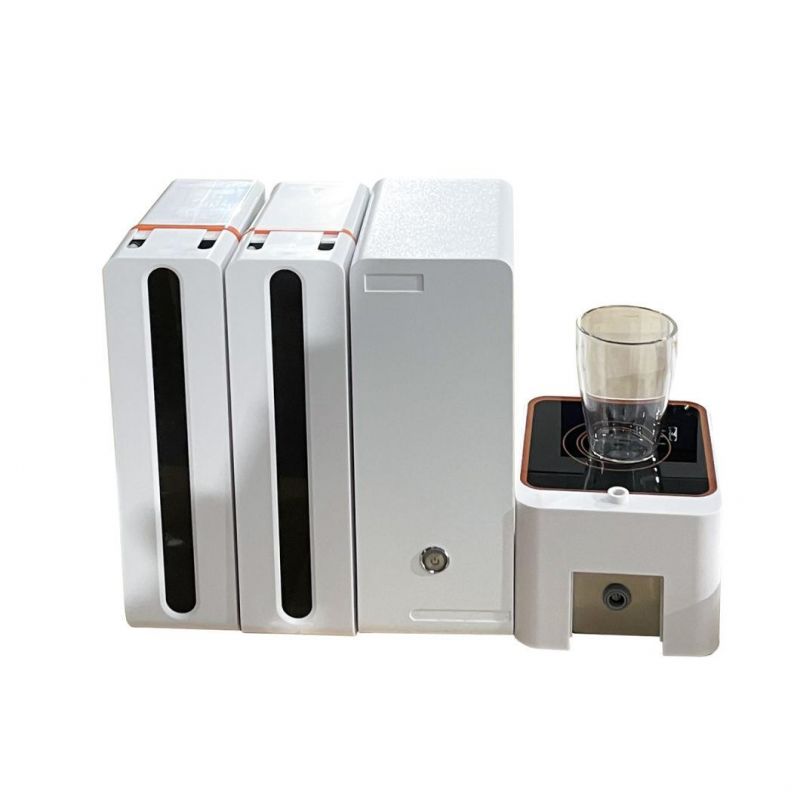

TP-6698 TAN TBN Automatic Titrator

Introduction:
TP-6698 Automatic Titrator meet the demand of mult complex liquid inlet automatically. There is no need to add solution manually. With the most secure built-in burette, to avoid contact with harmful chemicals which protect user security; Cloud services , connect via the Ethernet port ,to achieve the sharing between the instrument and Hanon huge database.Lead the laboratory instruments to Cloud generation.

Characteristics:

1.  Multi-Channel modular combination, combine up to 4 dosing units & 6 channels work at   same time.
2.  3 standard burettes (5ml/10ml/25ml) available for options according to different application
3.  Unique built-in dosing unit to avoid the harmless chemical leak.
4.  Multiple self-checking function to avoid mis-operating.
5.  Flexible application edit functions, users can storage your own titration mode according to your testing and use the storage mode next time with one click.
6.  RS232/USB port,with networked CAN bus communication functions
7.  Can work with external 16-samples auto-sampler, making the multitasking operation much easier.

Technical Data:

MV measuring range	-2500.0MV~+2500.0MV
MV measuring Resolution	0.1MV
MV measuring Accuracy	0.1MV
pH measuring range	-20.000PH~+20.000PH
pH measuring Resolution	0.001PH
pH measuring Accuracy	0.003PH
Temperature measuring range	0~100ºC
Temperature measuring accuracy	±0.1ºC
Interface	2xUSB, 1xRS232, 1xEthernet
Max titration station	6
Max liquid filling module	4
Burette	5ml, 10ml, 25ml
Burette resolution	1/48,000
Burette rehydration time	16 seconds (100% filling rate)
Operation	Controlled by PC
Electrode Interface Type	Q9, Q6, Combination electrode connector
Sampling	Up to 16 samples  (16 positions Auto-sampler is optional)

Welcome your inquiry
