• Model NO.：HST320
• Transport Package：Carton
• Specification：Wood carton
• Trademark：HST
• Origin：Shandong
• HS Code：9017800000
• Production Capacity：50000 Set,Year

Basic Info.

Model NO. HST320 Transport Package Carton Specification Wood carton Trademark HST Origin Shandong HS Code 9017800000 Production Capacity 50000 Set/Year

Product Description

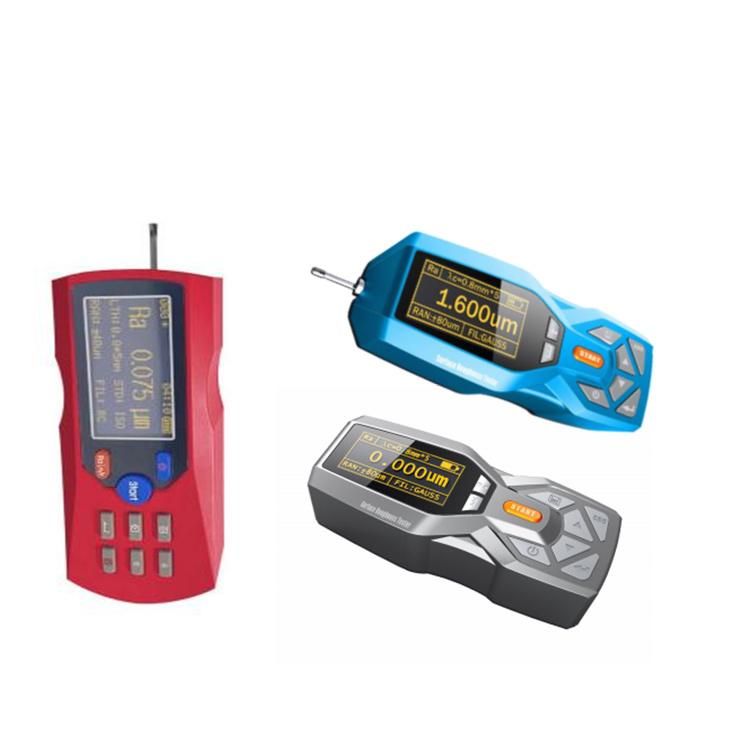

HST300/310 Surface Roughness Tester-NDT equipment
Main feature:
1.      Electromechanical integration design,small volume,light weight,easy to use
2.      Using DSP chip to control and data processing,high speed,low power consumption
3.      128*64 OLED dot matrix display,digital/graphic display, highlight no perspective
4.      Intuitive and rich display information,can display all the parameters and graphics
5.     Measurement information display,menu prompt information,false information and switch machine and other tips that information
6.    Can be connected to a computer and printer
7.     Compatible with ISO,DIN, ANSI,JIS national standards
8.      Residual quantity icon,prompting the user to charge
9.     Continuous working time: more than 20 hours.
10.   Real-time clock settings and display, convenient data recording and storage
1 1.   With automatic dormancy, automatic shutdown and power saving function
12.   Reliable control motor to go dead circuit and software design
13.   Optional different sensor,measuring platform,mini printer, extension rod and other accessories
14.  Plastic shell, inspired by TRANSFORMERS stylish design,portable,high reliability
Technical Parameters

	HST320
Testing parameters	Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr,
Measuring range	Ra: 0.005- 16.000;Rz: 0.02- 160.00
Sample length (mm)	0.25, 0.80, 2.50
Evaluation	( 1-5)L
Maximum drive	17 5mm/0 7inch
Indication accuracy	0.001
Indication error	±(7- 10)%
Variability	<6%
Data Storage	100 groups
Power	Rechargeable li-battery
Working temperature	-20ºC~40ºC
Relative humidity	<90%
Size	158mmx63.5mmx46mm
