Get3X Intelligent Three Slot Gradient PCR Instrument
Hangzhou West Tune Trading Co., Limited- Sample Type:Solidity
- Processing Method:Screening
- Warranty:1 Year
- Environment:Normal Pressure and Temperature
- Display:Digital Display
- Performance:Automatic
Base Info
- Model NO.:GET3X
- Power Supply:220V
- Weight:0-50kg
- Certification:CE
- Customized:Non-Customized
- Temperature Range:0-100ºC
- Heating Rate:4.5ºC,S
- Cooling Rate:4ºC,S
- Uniformity:≤±0.4ºC
- Accuracy:≤±0.3ºC
- Capacity:3×(32×0.2ml )
- Transport Package:Standard Carton Packing
- Specification:390mm×270mm×255mm (L×W×H)
- Trademark:WESTTUNE
- Origin:China
- HS Code:9027809990
- Production Capacity:1000
Description
Basic Info.
Model NO. GET3X Power Supply 220V Weight 0-50kg Certification CE Customized Non-Customized Temperature Range 0-100ºC Heating Rate 4.5ºC/S Cooling Rate 4ºC/S Uniformity ≤±0.4ºC Accuracy ≤±0.3ºC Capacity 3×(32×0.2ml ) Transport Package Standard Carton Packing Specification 390mm×270mm×255mm (L×W×H) Trademark WESTTUNE Origin China HS Code 9027809990 Production Capacity 1000Product Description

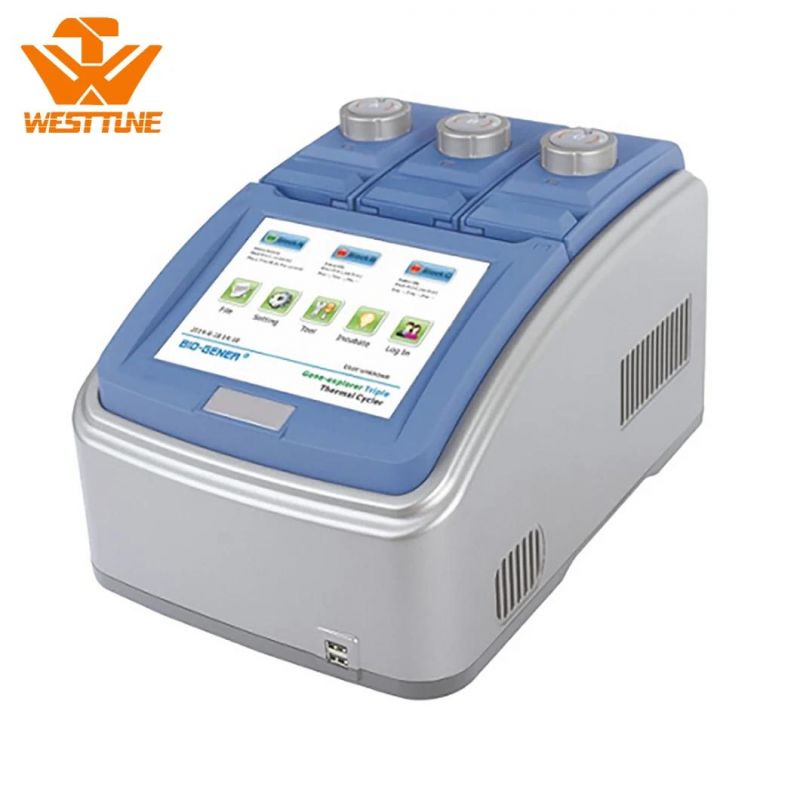

GET3X Intelligent Three Slot Gradient PCR instrumentGene-Explorer Triple uses Marlow(US) peltier. Its max. Ramping rate is 4.5 ºC/s and cycle times is more than 200,000. The product combines a variety of advanced technologies: Windows system; color touch screen; 3 blocks can run independently; PC on-line function; printing function; big storage capacity and support USB device. All above functions allow PCR's excellent performance and meet higher experiment's need.
Features:
1. 6 long service life Peltier heating units and form 3 circuits to control 3 temperature zones.
Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
2. High heating and cooling rate, max. Ramping rate 4.5 ºC/s, can save your precious time;
3. 3 blocks independently controlled and can run 3 different PCR programs simultaneously.
4. Stepless adjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation.
5. Windows interface, 8" ( 800×600, 16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
6. Built-in 11 standard program file template, can quickly edit the required files.
7. Folder management, user can build directory.
8. The running program and left time can be displayed in real time , allow to edit file when program is running.
9. One-click quick incubation function can meet experiment's needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
10. Internal flash memory for 10000 typical PCR files in free configurable folders.
11. Hot lid temperature and hot lid work mode can be set to meet different experiment's need.
12. Automatic restart after power failure. When power is restored it can continue to run unfinished program.
13. GLP report records every step to provide accurate data support for experiment result analysis.
14. User Login Management, three-tier permission, password protection function to ensure data security.
15. Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
16. Support USB and LAN to update software.
17. One computer can control many sets of PCR via network connection.
18. Min type Bluetooth printer as an option, easily record information.
Specification:
Model No. | GET3X |
Capacity | 3×(32×0.2ml ) |
Temperature Range | 0~100ºC |
Heating Rate | 4.5ºC/s |
Cooling Rate | 4ºC/s |
Uniformity | ≤±0.4ºC |
Accuracy | ≤±0.3ºC |
Display Resolution | 0.1ºC |
Temperature Control | BlockTube |
Ramping Rate Adjustable | 0.1~4.5ºC |
Gradient Mode | Individually set 3 gradient temp. |
Gradient Temp. Range | 30~100ºC |
Hot Lid Temperature | 30~110ºC |
Hot Lid Height Adjustable | Stepless Adjustable |
Number of Programs | 10000 +(USB FLASH) |
Max. No. of Step | 30 |
Max. No. of Cycle | 100 |
Time Increment/Decrement | 1 Sec ~ 600 Sec |
Temp. Increment/Decrement | 0.1~10.0ºC |
Pause Function | Yes |
Auto Data Protection | Yes |
Hold at 4ºC | Forever |
Language | English |
Yes | |
LAN to computer | Yes |
LCD | 8 inch,800×600 pels, TFT |
Communication | USB2.0 , LAN |
Dimensions | 390mm×270mm×255mm (L×W×H) |
Weight | 9kg |
Power Supply | 85~264VAC , 47~63Hz , 600 W |
