• Model NO.：SF-CCP
• Specification：1.1*1.1*0.12
• Trademark：SEFU
• Origin：China
• HS Code：902790000
• Production Capacity：200000PCS,Month

Basic Info.

Model NO. SF-CCP Specification 1.1*1.1*0.12 Trademark SEFU Origin China HS Code 902790000 Production Capacity 200000PCS/Month

Product Description

                      Thernal analysis cup for casting industry

Description :
  The thermal analysis cup is made of resin coated sand, straight quartz tube, T1 and T2 thermocouple wires and Sealing cement and other components. When the molten iron is poured into the sample cup, the molten iron gradually solidifies with time. The thermal analysis measures and calculates the CEL, C, Si and other components according to the temperature platform of the cooling curve. It is widely used in molten iron (gray iron, ductile iron, malleable iron).


Principle of measurement:
Collection of temperature curves is conducted by microprocessor. Contents of carbon and silicon, and quality of molten iron can be calculated by crystallization process of molten iron.

Cup-CE without tellurium; is used for "Carbon Equivalent" determination of cast iron.

Cup-C with tellurium reliable data for thermal analysis to read CE, C & Si of cast iron.

Cup-HC is specially used for determination of high carbon equivalent of cast iron / S.G. Iron.


Technical Date


Product Name:	Carbon cup	Temperature Range:	1250ºC~1370ºC
Carbon Equivalent:	3.2%~4.8%±0.05%	Carbon Content:	2.8%~4.2%±0.05%
Silicon Content:	0.9%~3.0%±0.1%	Type:	Round And Square Type
Measurement function:	thermal analysis towards cast iron	Measuring time:	240 seconds at most

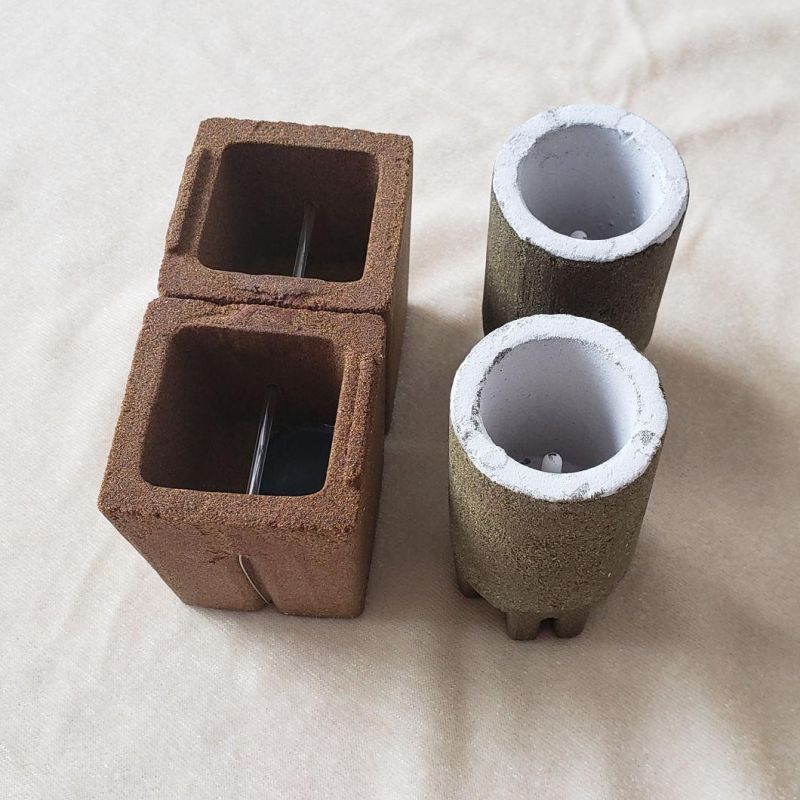

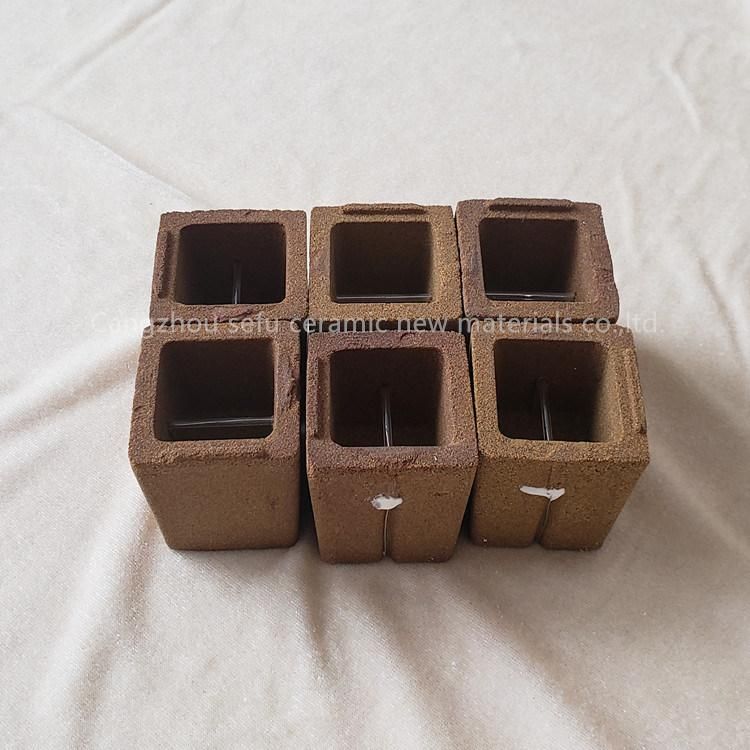

Product Show:






Shipping
Lead time: 10-15days after signed the contract


Packing

1.  Inside packing: Filters are put in small box and Layered packaging. There is cardboard between each layer.
2. Outside packing: Cartons&Pallets. Three layer corrugated cartons and export special pallets .
3. The mark on cartons can be designed according to the customer's request.

FAQ
Q: Are you Factory?
A: Definitely, we are factory.  Welcome to visit us!
Q: What Parameters should I provide to you for proper quotation?
A: Application, pore size, dimension, color, quantity, packing requirements, trade terms.
Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001.
Q: What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
Q: Do you provide Samples?
A: Yes, our factory provide samples for testing, pls send detail parameters to us. (if customized, with drawing is best) The samples will be charged or free according to the specific requirements.
Q: What's the Payment Terms?
A: We accept T/T, L/C, West Union, etc.
Q: How can I get samples?
A: We are honor to offer you the samples.
Q: What about your Packing?
A: We provide carton box, pallet, etc. OEM packing available too.
Q: Do you have R&D services?
A: Yes, we have R&D department to assist you in new product development.
Q:Does your company accept customization?
A:We accept OEM service.
Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
