10kv Dielectric Loss Insulation Power Factor Tester Transformer Capacitance & Tan Delta Test Equipment

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Auto./Manual：Fully-Automatic
  • PF Range：No Limit, Resolution 0.001%, C,L,R Specimen Test
  • Input Current Range：10μa~1A
  • Internal Hv：0.5~10kv,200mA(Max)
  • Hv Accuracy：±(Reading*1%+10V) Resolving 1V
  • Test Time：40s Typical

Base Info

  • Model NO.：GDGS
  • Power Supply：180V~270V 50Hz,60Hz Auto
  • Dimention：550*490*580mm
  • CVT Range：10 ~ 10000
  • Weight：28kg
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • HS Code：9030849000
  • Production Capacity：1000 Sets , Month

Description

Item NameGDGS Automatic Transformer Power Factor TesterUse Condition-15 ºC ~ 40 ºCRH<80%Anti-interferenceFrequency ConversionPowerAC 220V ± 10%Allowable GeneratorHigh Output0.5 kV ~ 10 kVevery 0.1 kVPrecision2%Maximum Current200ACapacity2000VASelf-excited PowerAC  0V~50V/15A45HZ/55HZ   47.5HZ/52.5HZ55HZ/65HZ   57.5HZ/62.5HZAutomatic Double FrequencyResolving Powertgδ: 0.001%Cx: 0.001pFPrecisionΔtgδ: ± ( Reading*1.0%+0.040% )ΔCx : ± ( Reading*1.0%+1.00PF )Measuring RangetgδUnlimitedCx15pF<Cx<300nF 10kVCx < 60 nF 5kVCx < 150 nF 1 kVCx < 300 nFCVT TestCx < 300 nFCVT Range10 ~ 10000Accuracy0.10%Resolving Power0.01Exterior Dimension350(L)×270(W)×270(H)Memory SizeThe 200 Group Supports U Disk Data StorageWeight28Kg

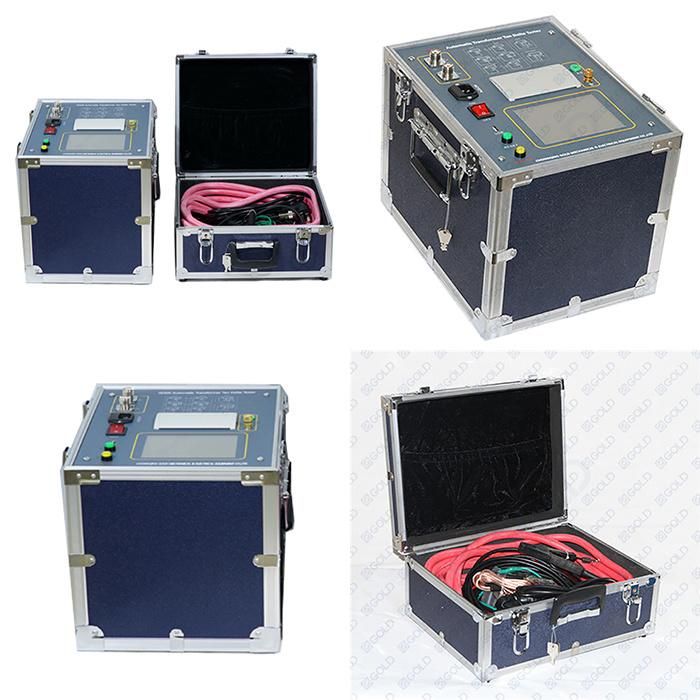

  • Product Show:

10kv Dielectric Loss Insulation Power Factor Tester Transformer Capacitance & Tan Delta Test EquipmentPacking & Shipping

10kv Dielectric Loss Insulation Power Factor Tester Transformer Capacitance & Tan Delta Test Equipment
  • Quality Assurance
    We have more than 20 years' experience in designing and manufacturing these equipment, so our equipment is stable, reliable, with high quality and good reputation.
    All the products have been run well and adjusted to good condition before delivery, operator only need to follow the user manual to operate it.
  • Technical Support
     Our technical team supports our customers at all time with our long experience, expert advice and the unlimited spirit to always providing the best customer service.
    You can arrange your engineer to our company to get free training. If necessary, we can also arrange our engineer to your company for training and commissioning at your cost.
  • Service
    Provide professional advice and reasonable offers within 2 hours at working time, and within 12 hours at non-working time.
    One year warranty for all the products, life time technical consulting, life time provision of spare parts, free software upgrades.
    Pre-sale Service:
    Inquiry will be replied within 24 hours.
    Welcome to visit our factory.
    Technical data and operation manual sent for evaluation.
    After-sale Service:
    Training how to install the machine, training how to use the machine at our factory.
    Engineers available to service machinery overseas at customers' cost.
  • FAQ
    What's the delivery lead time?
    "For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."
    What's the payment term?
    "For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."
    What's the warranty period?
    "Warranty period is 1 year."
