• Model NO.：GD-12441
• Control Box：800 mm* 500 mm* 500 mm
• Power：22V, 50Hz, 300W
• Specimen Size：900mm*900mm*5mm + 0.2mm First-Class Five-Layer
• Control：PLC + Na View Professional Software
• Display：Touch Screen
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：10

Basic Info.

Model NO. GD-12441 Control Box 800 mm* 500 mm* 500 mm Power 22V, 50Hz, 300W Specimen Size 900mm*900mm*5mm + 0.2mm First-Class Five-Layer Control PLC + Na View Professional Software Display Touch Screen Transport Package Plywood Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 10

Product Description

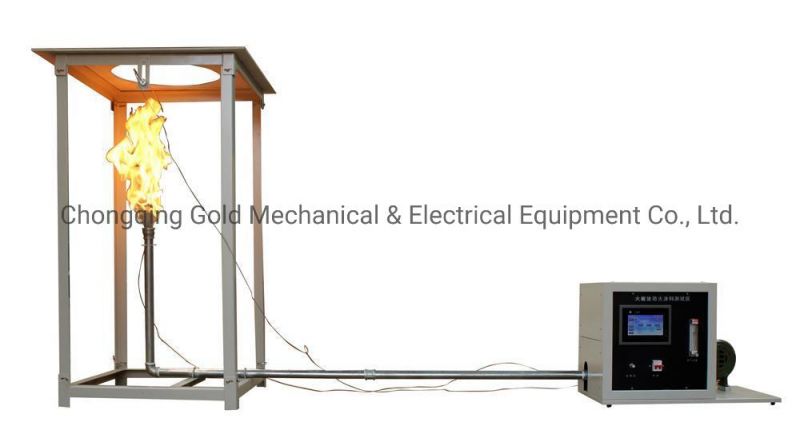

Fire retardant coating tester (large plate method) GB 12441

Introduction:
Fire retardant coating tester (large plate method) is suitable for testing the flame resistance characteristics of decorative fire retardant coatings applied to the surface of flammable substrates under specified conditions according to the technical indicators and requirements specified in the national standard GB12441-2018.

Standard:
GB12441-2018

Features:
1. The degree of automation is high, and the temperature error is lower than the national standard
2. Reasonable structure design, convenient operation, and maintenance
3. Touch screen control, easy to test

Technical Parameter:
1. PLC + NA view professional software, touch screen control, easy to operate
2. Voltage and power: 220V±10%, 50HZ, 300W
3. Working environment: indoor without forced ventilation
4. The air volume of the blower (1~5) m3/min can be adjusted
5. Armored thermocouple: the outer diameter is not more than 3mm, the wire diameter is 0.5mm, the accuracy is not lower than class II, and the range is 1300ºC
6. The timer error is not more than 1s/h
7. Five-way thermocouple temperature measurement on the back fireside, automatic alarm when the temperature reaches 220 ºC
8. Ambient temperature: -5ºC~30ºC
9. Relative humidity: ≤85%
10. Gas source: liquefied petroleum gas (Note: the user provides gas source and connector)
11. Dimensions of the instrument: Test plate bracket: 760 mm* 760 mm* 1500 mm; Control box: 800 mm* 500 mm* 500 mm;
12. Specimen size: 900mm*900mm*5mm + 0.2mm first-class five-layer plywood
13. Automatically control time - temperature rise curve and record
14. Automatic alarm when the backfire temperature reaches 220ºC
