• Model NO.：MOT200-C2H6
• N.W：1.2kg
• G.W：1.5kg
• Detection Range：0-30000ppm
• Screen Size：2.4 Inch LCD HD Color Screen
• IP Rating：IP 65
• Explosion Proof Sign：Exdll CT4 (Ia)
• Power：24VDC
• Analog Digital Output：4-20mA Output(0-5V, 0-10V Optional)
• Material：Aluminum, Explosion and Corrosion Proof
• Modbus Digital Output：RS485 Output
• Transport Package：Standard Carton Packaging 26*21*14cm

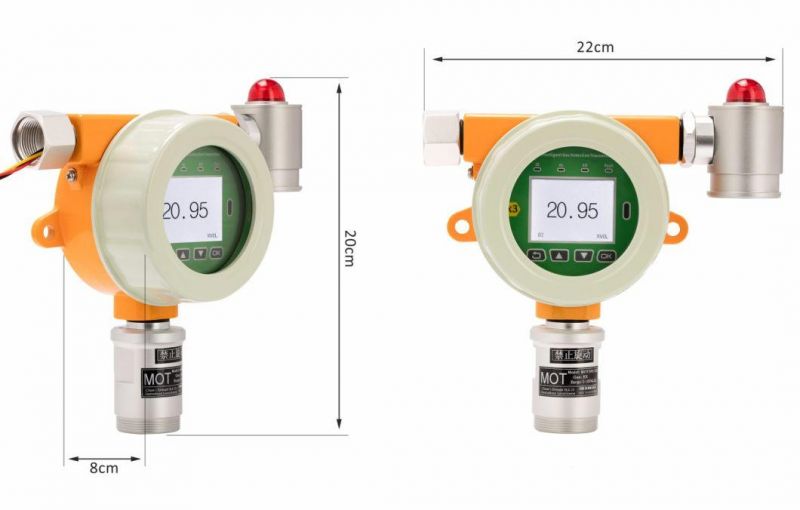

• Specification：Product size: 20*17*8cm
• Trademark：Korno or customized
• Origin：China
• HS Code：9027100010
• Production Capacity：10000pieces,Month

Product Type:Online,Ethane(C2H6)Sensor: Electrochemical Gas sensorDetection Pattern:Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detectionDetection Range:0-5000,10000,30000ppmResolution:1ppmDetection Accuracy:≤±3%F.SLinearity error:≤±1%F.SReaction Time:≤20S(T90)Zero drift:≤±1%(F.S/Year)Recovery Time:≤20SRepeatability:≤±1%F.SRelay output:Two relays output,Contact rating:24VDC 3A/220VAC 3AExplosion Proof Sign:ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807Outputs:              Analog:4-20mA signal,0-5V,0-10V
              Modbus: RS485 signal
              Pulse signal or TCP/IP signal,optionalAlarm Setting:Two alarm set points
Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarmControllers:Compatible with DN3000/DN9000,as well as most DCS/PLC systemsIP Rating :IP65Material:Aluminum
,Explosion and corrosion proofConnection:3/4″NPT,1/2″NPTDimensions:200×160×80mm(L×W×H)Weight:1.5 Kg(Net weight)Operating
Temperature:-30 ~ 60ºCRelative Humidity:≤90%RH,Non-condensingOperating
Pressure:0 ~ 200KpaOperating Voltage:24VDC(9~30VDC)Standard Accessories:-User manual
-Certification
-Calibration coverOptional Accessories:-hose(5*8mm),drying tube,water separator or pumping pump
-infrared remote control
-temperature and humidity sensor,SMS alarm,3G module or wireless transmission module
>>> Details


>>> Our certificates



>>> Company Information

  Shenzhen Korno Import& Export Co.,Ltd,is one of the top gas detector manufacturer in China,with more than 10 years research and production experience.Our products mainly include handle gas detector,Portable gas detector,Online gas detector,Controller,Gas pretreatment System etc.

  More than 100 employees,Factory covers an area of 10000 square meters.We have our own r&d departments,processing plants,assembly plants,after-sale technical support departments,domestic sales and overseas sales departments etc.

  The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service. In addition, with the powerful and professional R&D team, advanced and perfect concept of sales service made the products of our company a high reputation and market share both at home and abroad.

  Our main market is Asia ,Europe and America,more than 30 countries.
  Our customers are:Mordoch University,HUANGKUANG University ,Humboldt University Berlin, S.P.Refinery.CO.,Ltd,China National Petroleum Corporation,etc.



>>> Our service

1. All products and accessories have been 100% tested before shipping.
2. We provide 12-Mounths warranty for non-deliberate damage.
3. OEM & ODM are welcomed~

>>> Payment Terms
 1.  T/T, WU, 100% prepaid
 2.  Lead time:3-5days after payment

>>> Contact US
