• Model NO.：SYS-200
• Power Supply：220V
• Weight：0-50kg
• Certification：CE, ISO9001
• Customized：Customized
• Item：Test Sieve Shaker
• Material of Wire Mesh：Stainless Steel 304
• Type of Wire Mesh：Wove Wire Sieves
• Function：Particle Size Analysis
• Voltage：220 V or 110 V as Request
• Transport Package：Wooden Case
• Specification：360*300*736mm
• Trademark：Hengyu
• Origin：Xinxiang, China
• HS Code：84741000
• Production Capacity：300 Per Week

Basic Info.

Model NO. SYS-200 Power Supply 220V Weight 0-50kg Certification CE, ISO9001 Customized Customized Item Test Sieve Shaker Material of Wire Mesh Stainless Steel 304 Type of Wire Mesh Wove Wire Sieves Function Particle Size Analysis Voltage 220 V or 110 V as Request Transport Package Wooden Case Specification 360*300*736mm Trademark Hengyu Origin Xinxiang, China HS Code 84741000 Production Capacity 300 Per Week

Product Description

Item: Vibratory Analysis Electromagnetic 100 Micron Test Sieve Shakers Laboratory

Introduction:
Sieving is an effective method for particle size measurement. It is commonly used for Quality Control in almost all industries such as chemicals, mining and metallurgy, food, cosmetics, pharmaceuticals and any laboratory involved in particle size analysis. The displayed soil test sieve shaker is a good helper for particle size analysis.

Features of test seive shaker:
1. Accurate mesh size guarantees precise analysis of sample
2. Application: evaluation of size analysis
3. Typically requires 50-150g of sample material
4. Setting time limits for 1 second -9999 seconds
5. Up to 9 fractions in one sieving operation
6. Approved ISO 9001:2008, CE and BV certificates
7. One person can pick up it

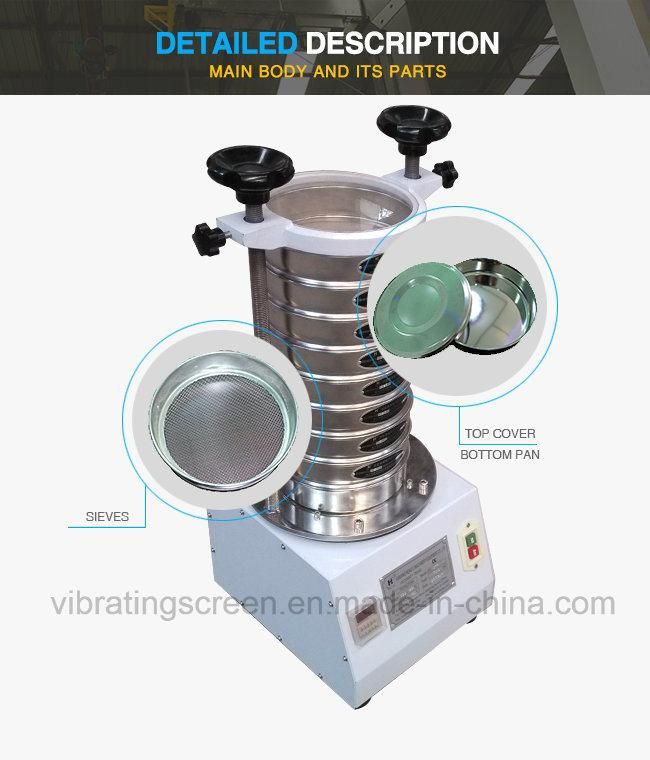

Photo show main body and parts

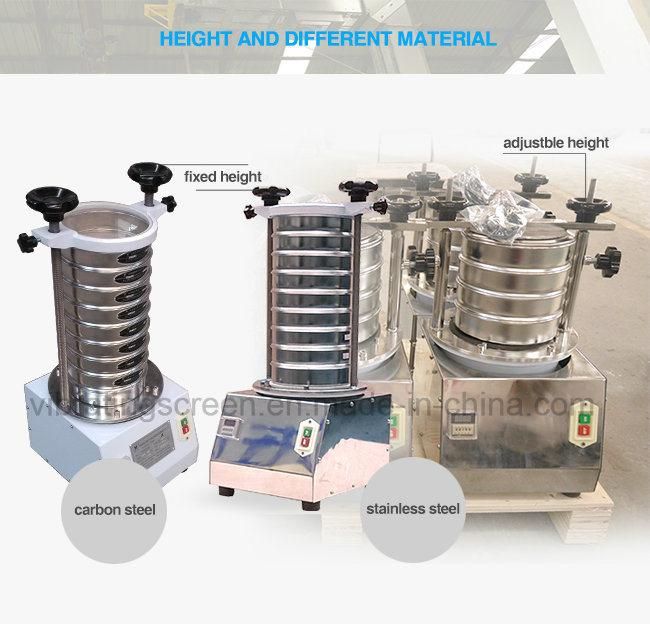

Height and material

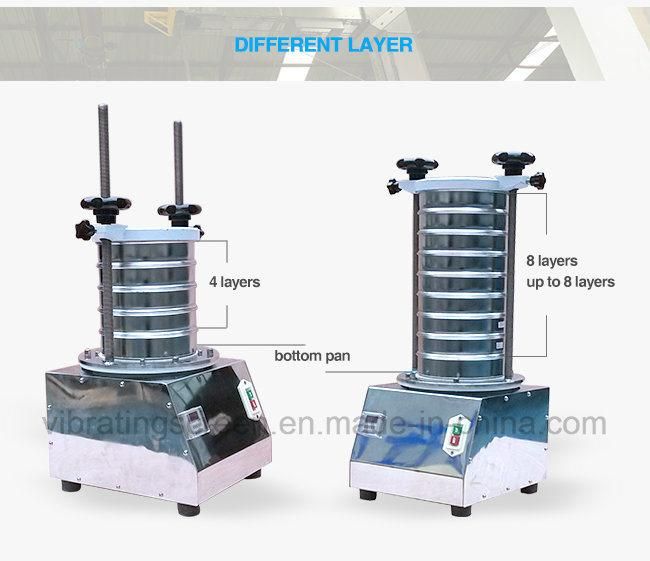

Layer suggest from 3-8 layer

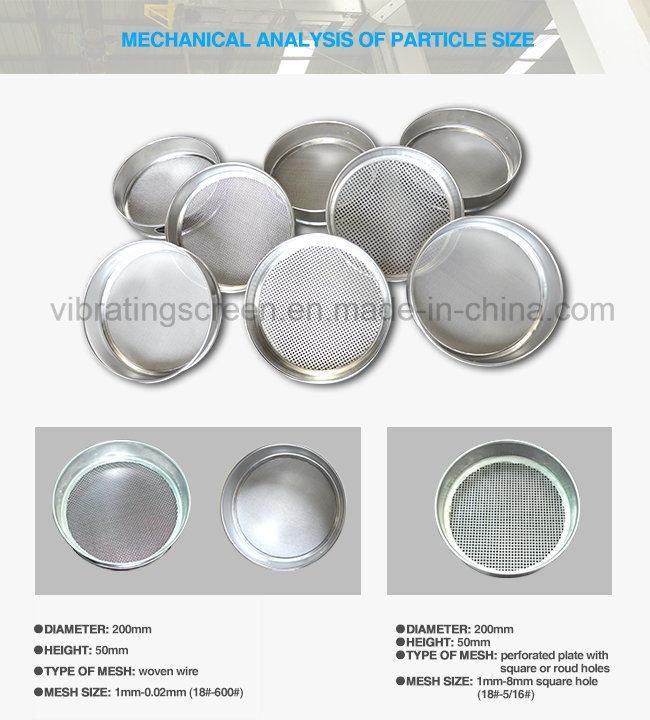

Mesh size for reference


Technical parameters:

Number	Name	Unit	Data
1	layers	layer	1-8
2	diameter	mm	200
3	granularity	mm	0.038-3
4	noise	dB	50
5	feed capacity(once)	g	200
6	amplitude	mm	5
7	voltage	v	220
8	speed	r/min	1400
9	power	KW	0.12
10	overall dimension	mm	360*300*736
11	weight	Kg	36


How to use the model?
1. Place sieves with required mesh onto the machine base sequentially.
2. Pour sample in the top sieve, suggest less than 200g.
3. Lid down and clamp the fasteners, set the timer and start the shaker.
4. After the end of the set time, loosen the fasteners
5. Weight sample on each sieve to get the analysis reslut.

If you need one set of test sieve shaker, please let's know the following requirements:
1. How many sieves you need at once
2. The mesh size of each sieves
3. Please suggest the voltage in your plant
