• Model NO.：GDVA-405
• Memory Capacity：>1000 Groups Test Results
• Working Condition Temperature：-10ºC~50ºC; Moist ≤90%
• Dimension：49*36*19cm
• Weight：15kg
• Transport Package：Standard Wooden Case
• Trademark：GOLD
• Origin：China
• HS Code：9030849000
• Production Capacity：1000 Sets , Month

Test StandardsIEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13Power SupplyAC220V±10%, 50/60Hz±10%Voltage Output0.1~180V (AC)Current Output0.001~5A(RMS)Power Output500VAMax.  Knee Voltage Measurement45KVCurrent MeasurementRange0~10A (automatically change  range in 0.1/0.4/2/10A)Error<±0.1%+0.01%FSVoltage MeasurementRange0~200V (automatically change range in 1V/10V/70V/200V)Error< ±0.1%+0.01%FSTurns ratio measurement Range1~350001~2000, error<0.05%2000~5000,error<0.1%5000~35000,error<0.2%Phase MeasurementError±2minResolution0.01minWinding Resistance MeasurementRange0~8kΩ (automatically change range in 2 Ohm/20 Ohm/80 Ohm/800 Ohm/8k Ohm)Error< 0.2%RDG+0.02%FSMaximum Resolution :  0.1mΩTemperature Measurement-50~100 Celsius degree; error<3 Celsius degreeCT Secondary BurdenRange0~160ohm (automatically change range in 2 Ohm/20 Ohm/80 Ohm/160 Ohm)Error<0.2%RDG+0.02%FSMaximum Resolution : 0.001ohmPT Secondary BurdenError0~80k Ohm (automatically change range in 800 Ohm/8k Ohm/80k Ohm)Maximum<0.2%RDG+0.02%FSResolution0.1ohmPT Ratio MeasurementRange1~35000,1~10000 error<0.1%,10000~35000 error<0.2%PT Ratio Error Measurement :Typical Error<0.05%,  Maximum Error<0.1%PT Phase Angle Measurement Maximum Error < 3minMake evaluation for test results according to selected standardsMake word report for test resultMake word reports one time for multi-group test records on the PCCalculate the ratio errors and phase angle errors at rated burden and working burden in one time testCompare excitation curves with saved excitation curves in the same windowMemory Capacity>1000 groups test resultsWorking Condition Temperature-10ºC~50ºC; moist ≤90%

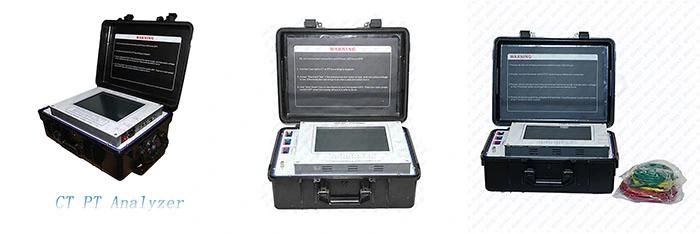

• Product Show:

• Packing & Shipping

• Quality Assurance
  We have more than 20 years' experience in designing and manufacturing these equipment, so our equipment is stable, reliable, with high quality and good reputation.
  All the products have been run well and adjusted to good condition before delivery, operator only need to follow the user manual to operate it.
• Technical Support
   Our technical team supports our customers at all time with our long experience, expert advice and the unlimited spirit to always providing the best customer service.
  You can arrange your engineer to our company to get free training. If necessary, we can also arrange our engineer to your company for training and commissioning at your cost.
• Service
  Provide professional advice and reasonable offers within 2 hours at working time, and within 12 hours at non-working time.
  One year warranty for all the products, life time technical consulting, life time provision of spare parts, free software upgrades.
  Pre-sale Service:
  Inquiry will be replied within 24 hours.
  Welcome to visit our factory.
  Technical data and operation manual sent for evaluation.
  After-sale Service:
  Training how to install the machine, training how to use the machine at our factory.
  Engineers available to service machinery overseas at customers' cost.
• FAQ
  What's the delivery lead time?
  "For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."
  What's the payment term?
  "For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."
  What's the warranty period?
  "Warranty period is 1 year."
