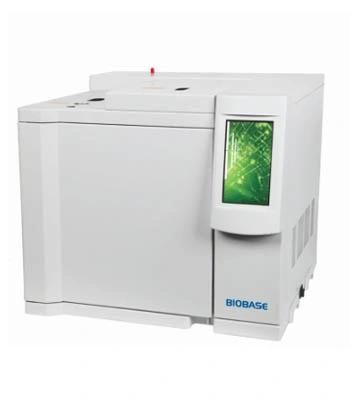

• Model NO.：BK-GC7820
• Stationary Phase：Solid Adsorbent
• Mobile Phase：Gas
• Chromatography Type：Gas Chromatography
• Chromatographic Column Type：Capilary Column
• Chromatographic Column Length：10~30cm
• Chromatographic Column Diameter：0.2~0.5mm
• Oven Temp. Range：Rt~450 Degree
• Oven Temp. Program：16-Phase
• Oven Max. Temp. Heating Rate：40degree,Min
• Fid Detection Limit：<=3*10-12g,S
• Fid Baseline Drift：<=1*10-13A,30min
• Fid Linear Range：>=107
• Standard Accessory：Fid Detector, Chromatography Workstation Software
• Transport Package：Wooden or Carton
• Specification：FID detector
• Trademark：BIOBASE
• Origin：China
• Production Capacity：200units,Month

Model

BK-GC7820

Oven

Temp. Range

RT ~ 450ºC

Temp. Accuracy

±0.1ºC

Temp. Program

16-phase

Max. Temp. Heating Rate

40ºC / min

Detector

Hydrogen Flame Ionization Detector (FID)

Detection limit:≤3×10-12g/s

(Sample: n-hexadecane)

Baseline drift:≤1x10-13A/30min

Linear range:≥107

Thermal Conductivity Detector (TCD) (Optional)

Sensitivity: >10000mv.ml/mg

(Sample: n-hexadecane)

Linear range:≥105

Electron Capture Detector (ECD) (Optional)

Detection limit:≤1×10-14g/ml

(Sample: n-hexadecaneδ-666)

Linear range:≥103

Flame Photometric Detector (FPD) (Optional)

Detection limit:≤2×10-11g/s (S of thiophene)

Detection limit:≤1×10-12g/s (P of methyl parathion)

Linear range (S):≥102

Linear range (P):≥103

Nitrogen and Phosphorus Detector (NPD) (Optional)

Detection limit:≤1×10-12g/s (Azobenzene)

Detection limit:≤1×10-12g/s (Marla sulphur phosphorous)

Linear range:≥103

Power Supply

AC110/220V±10%, 50/60Hz

Standard Accessory

FID detector, Chromatography workstation software

Optional Accessory

Sample injection system, TCD, ECD, FPD and NPD detector, Chromatographic column.

Package Size (W*D*H)

800*570*650mm

Gross Weight

75kg

Features:

1. 7-inch LCD display indicates temperature, gas flow and heating curve.
2. Self-test function and automatic fault recognition function.
3. 8 pcs external extension interfaces can connect with control valve.
4. Equipped with a flame ionization detector (FID) which adopts APC control.
5. Multi-core and 32-bit embedded hardware system ensures the reliable operation.
6. Synchronous external trigger function and the external signal (auto sampler, hot analytical instruments, etc.) can start the equipment and workstation software at the same time.
7. With chromatography workstation software to process data.

Technical Parameters:

Model

BK-GC112A

Oven

Temp. Range

RT + 5ºC ~ 400ºC

Temp. Accuracy

±0.02ºC

Temp. Program

9-phase/ 10 platform

Max Temp. Heating Rate

60ºC / min

Sample injector

Temp. Range

RT + 7ºC ~ 420ºC

Column or split injector can be installed.

Split mode can directly set the split ratio.

Constant pressure mode.

A separate injection system is connected.

Detector

Temp. Range

RT + 7ºC ~ 420ºC

Hydrogen Flame Ionization Detector (FID)

Logarithmic amplifier

High voltage switch control

Baseline signal display

Ignition coil control

Detection limit:≤3*10-12g/s

(Sample: n-hexadecane)

Dynamic range: 107

Thermal Conductivity Detector (TCD)

(Optional)

Bridge voltage switch control

Bridge current setting: 0-220mA

Sensitivity: 6000mv.ml/mg

Dynamic range: 105

Power Supply

AC220V±10%, 50/60Hz

Standard Accessory

FID detector, Capillary injection system, Chromatography workstation software.

Optional Accessory

TCD detector, Chromatographic column, Gas purifier.

Package Size (W*D*H)

1020*660*740mm

Gross Weight

82kg
