• Model NO.：BK-AII
• Performance：Automatic
• Power Supply：220V
• Weight：0-50kg
• Certification：CE, RoHS
• Customized：Customized
• Model：Bk-Aii
• Type：Gradient Thermal Cylcer
• Standardmodule：96 Module: 96 Wells*0.2ml or 9677module: 96 Wells*
• Heating and Cooling Technology：Newest Generation Peltier-Based Technology, with L
• Language：English
• USB Flash Drive：Unlimited Storage of Protocols with USB Flash Driv
• Communications Ports：2USB 2.0 and LAN
• Mode of Temperature Control：SIM-Tube & Block Mode
• Ramping Rate Adjustable：Yes
• Height of Heated Lid：Steplessly Adjustable Lid,
• Open Method：Innovative Top-Open Technology Realizesopen and Li
• Auto Shut-off：Yes
• Max.Step &Max.Cycle：30 Steps,100 Typicalcycles, Max60,000nestingcycles
• Time & Temp. Increment/Decrement：Yes, Available for Long PCR & Touchdown PCR
• Power：Global Switch Power Supply:85V~265V,50-60Hz Max.60
• Transport Package：Wooden
• Specification：430mm*344mm*345mm
• Trademark：BIOBASE
• Origin：Shandong, China
• Production Capacity：100units,Month

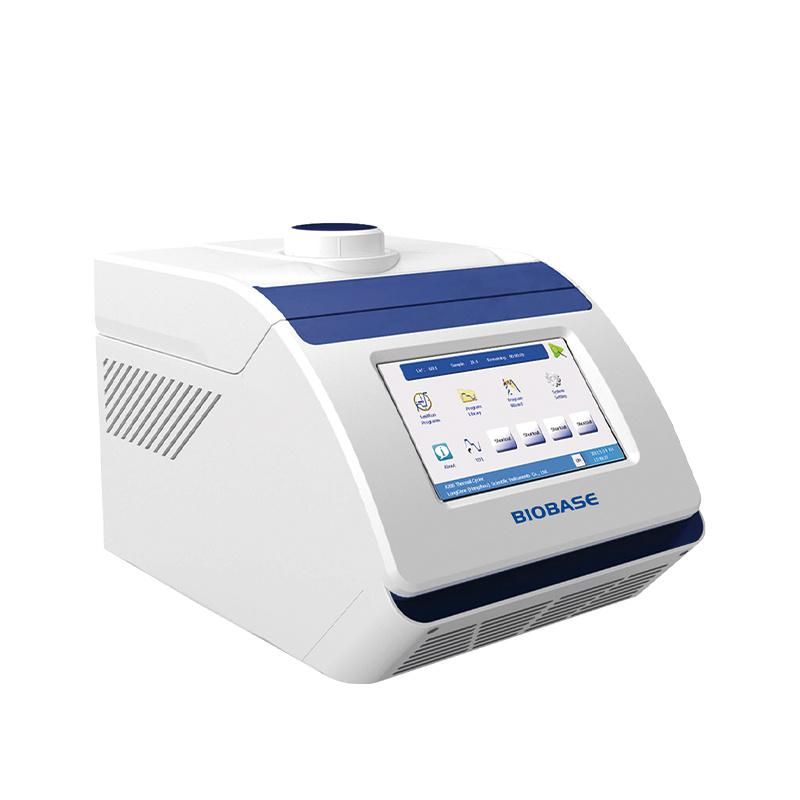

Model

BK-AI

BK-AII

Type

Standard Thermal Cycler

Gradient Thermal Cylcer

StandardModule

96 Module: 96 wells*0.2ml or 9677Module: 96 wells*0.2ml+77 wells*0.5ml

Optional Module

48Module:48wells* 0.2ml+48wells*0.5ml

384 Module: 384 wells

Multi-purpose Module: 9677 Module+In-situ Adapter

Heating And Cooling Technology

Newest generation Peltier-based technology, with long life up to 1,000,000 cycles

Display

7°Color Touch Screen, graphical display of protocols and running status

Language

English

USB Flash Drive

Unlimited storage of protocols with USB flash drive

Communications Ports

2USB 2.0 and LAN

Temperature

Block Temperature Range

0ºC~100ºC

Max. Heating Rate

5ºC/s

Max. Cooling Rate

4ºC/s

Temperature Uniformity

≤ ±0.2ºC(at 95ºC)

Temperature Accuracy

≤ ±0.2ºC(35ºC-100ºC)

Mode Of Temperature Control

Sim-tube & Block mode

Ramping Rate Adjustable

Yes

Gradient

Gradient Accuracy

/

≤ ±0.3ºC(35ºC~100ºC)

Column Uniformity

/

≤ ±0.3ºC (at 95ºC)

Gradient Range

/

35ºC~99.9ºC

Temp. Differential Range

/

1ºC~30ºC

Gradient Capability

/

12 Column

Heat LID

Height of Heated lid

Steplessly Adjustable lid, accommodatesall kinds of PCR tubes, strips and plates

Open method

Innovative TOP-OPEN technology realizesopen and lift the lid in one step

Heated Lid Temperature Range

30ºC~99.9ºC

Auto Shut-off

Yes

Software

Max. Number of Programs

Max.10,000 programs onboard, unlimited storage of protocols with USB flash drive

Max.Step &Max.Cycle

30 steps,100 typicalcycles, max60,000nestingcycles

Time & Temp. Increment/Decrement

Yes, available for long PCR & Touchdown PCR

Auto Pause/Auto Restart

Yes

Multi-userlogin

Password-based authentication prevents from view, copy and alteration ofprotocols

Tm Calculator

Automatically calculates the melting and annealing temperaturethrough inputtwo primer sequences

Hold At 4ºC

Yes, an infinite incubation time at low temperature forovernight working

Programwizard

Yes, create PCR protocols with only a few clicks

Running Report

Yes, provideobjective andpreciseinformation forwhole running process

PC Connection

PC remote control to manage more than 100 units of A100/A200 across the network

Other Features

Power

Global switch power supply:85V~265V,50-60Hz Max.600W

Approvals

ISO 9001:2000 ,CE, RoHS

Packing Size(L*W*H)

430mm*344mm*345mm

Gross Weight

9.8kg
