• Model NO.：SUP-DO700
• Measurement Accuracy：Do: 3% of The Measured Value; Temperature:0.5c
• Pressure Range：<0.3MPa
• Calibration：Air Automated Calibration,Sample Calibration
• Body：SUS316L + PVC(Fresh Water), Titanium Alloy (Marine
• O-Ring：Fluorine Rubber; Cable: PVC
• Transport Package：Standard
• Specification：96*96 145*125
• Trademark：Supmea
• Origin：China
• Production Capacity：50000peic

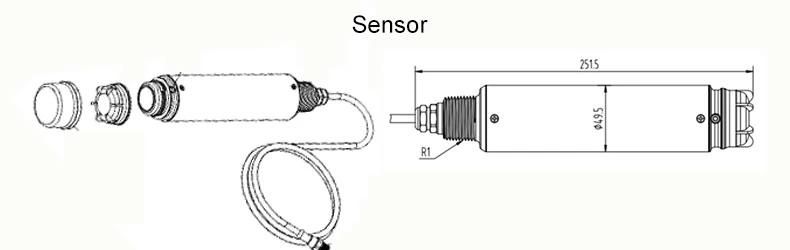

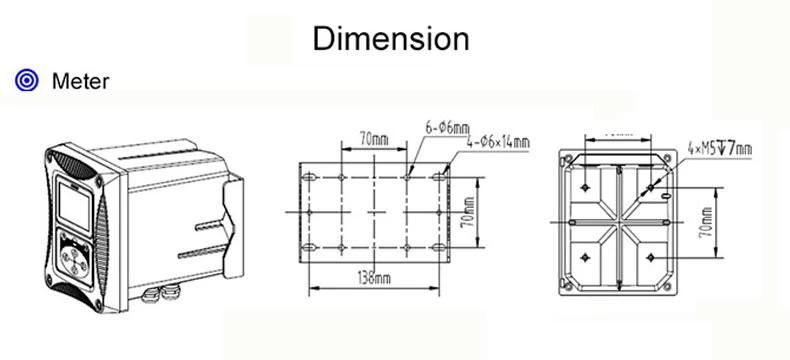

Measurement rangeDO: 0-20 mg/L,0-20 ppm; Temperature: 0-45ºCMeasurement AccuracyDO: ±3% of the measured value; Temperature: ±0.5ºCPressure range≤0.3MpaCalibrationAir automated calibration,sample calibrationMain materialBody: SUS316L + PVC(fresh water), Titanium alloy (marine);O-ring: fluorine rubber; Cable: PVCPower supplyAC:100-240VAC (50/60HZ)DC: 9~36VDCOutput2-way 4-20mARelaySetting three-way relays,programmed response parameterand response value.Communication protocolMODBUS RS485Storage temperature-15-65ºCMeasuring temperature0-45ºCDimensionsSensor: Dia55mm*L 342mmTransmitter: 145*125*162mm(L*W*H)WeightSensor: 1.85KG;Transmitter: 1.35KGProtective rateSensor: IP68/NEMA6P; Transmitter: IP65/ NEMA4XCable lengthStandard: 10m, the maximum may be extended to 100m






Packing & Delivery:

Electromagnetic flow meter is packed in cartons ,and wooden boxes (from DN80)

Lead time : Most products within 7 working days(if have stock, could be sent same day), customized product would be longer

Delivery process:


1.Use customer's own delivery account, or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)

2.Delivery time is 2-7 working days, some products have stock in Malaysia.

3.Help to do the destination customs clearance

Overseas Service Center Address:

Singapore/ Philippines/ Malaysia/ Kroea/ Indonesia/ Germany/ India






FAQ:

Q: How long will you give me the reply?
A: we will contact you in 3 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory,Our factory and office are all in Hangzhou,Zhejiang.

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance

Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance.

Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately. For some products we have it in stock.

Q: Could you provide me the shortest lead time?
A: For somre standard products we have it in stock . Pls tell me your detailed requirements, we will send to you as early as we can.
