• Model NO.：SYS-200
• Power Supply：220V
• Weight：0-50kg
• Certification：CE, ISO
• Customized：Customized
• Product Name：Lab Test Sieve
• Type of Wire：Woven Wire Mesh

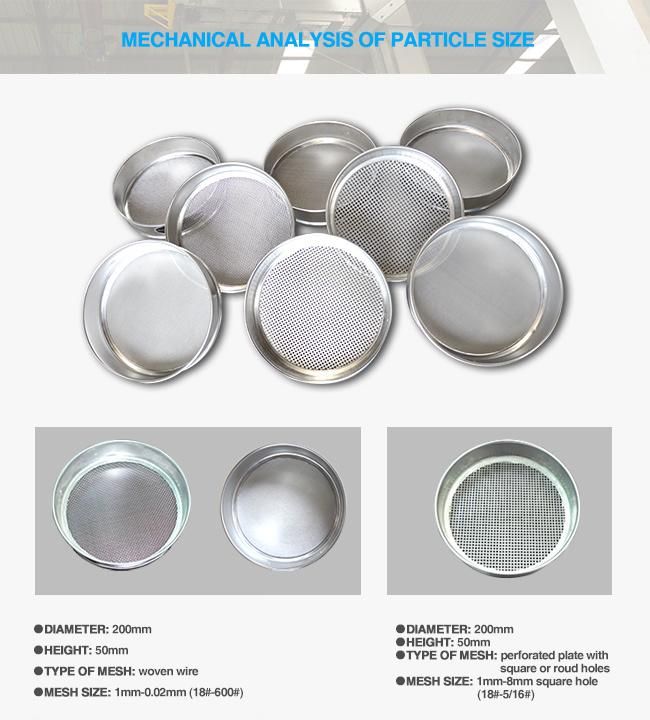

• Material of Wire Mesh：Stainless Steel 304
• Diameter of Sieves：200mm
• Height of Sieve：50mm

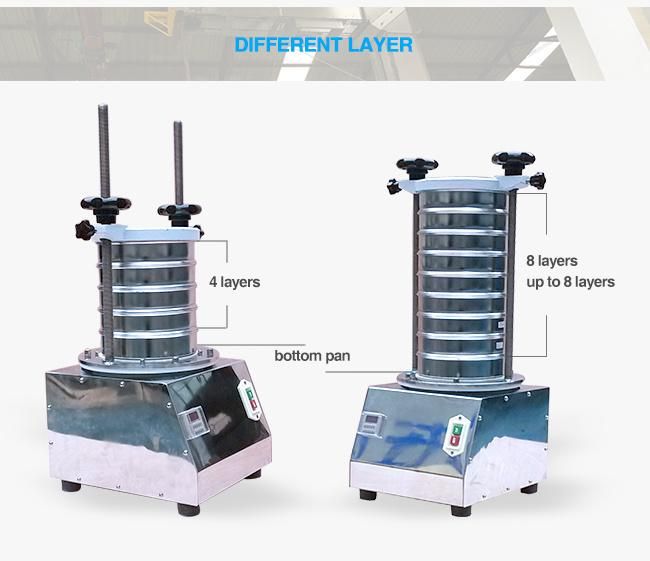

• Layer：3-8 Layers
• Voltage：220V, 110V
• Hertz：50 or 60 Hz
• MOQ：1 Set
• Transportation：Air or Sea, Express
• Transport Package：Wooden Case
• Specification：360*300*736mm
• Trademark：Hengyu
• Origin：China
• HS Code：84741000
• Production Capacity：300 Per Week

Basic Info.

Model NO. SYS-200 Power Supply 220V Weight 0-50kg Certification CE, ISO Customized Customized Product Name Lab Test Sieve Type of Wire Woven Wire Mesh Material of Wire Mesh Stainless Steel 304 Diameter of Sieves 200mm Height of Sieve 50mm Layer 3-8 Layers Voltage 220V, 110V Hertz 50 or 60 Hz MOQ 1 Set Transportation Air or Sea, Express Transport Package Wooden Case Specification 360*300*736mm Trademark Hengyu Origin China HS Code 84741000 Production Capacity 300 Per Week

Product Description

Description of Sieve Analysis Test Sieve, Lab Test Sieve

Sieving is an effective method for particle size measurement. It is commonly used for Quality Control in almost all industries such as chemicals, mining and metallurgy, food, cosmetics, pharmaceuticals and any laboratory involved in particle size analysis. The displayed lab test sieve is a good helper for particle size analysis.

Features of lab test sieve
1. Typically requires 50-150g of sample material
2. Setting time limits for 1 second -9999 seconds
3. Up to 9 fractions in one sieving operation
4. One person can pick up it
5. Approved ISO 9001:2008, CE and BV certificates
6. Accurate mesh size guarantees precise analysis of sample



Technical Parameters

Number	Name	Unit	Data
1	layers	layer	1-8
2	diameter	mm	200
3	granularity	mm	0.038-3
4	noise	dB	50
5	feed capacity(once)	g	200
6	amplitude	mm	5
7	voltage	v	220
8	speed	r/min	1400
9	power	KW	0.12
10	overall dimension	mm	360*300*736
11	weight	Kg	36

How to operate for getting good analysis result?
Step 1: Weighing the tested material
Step 2: Place sieves with required mesh on the machine base sequentially
Step 3: Pour the tested material into the top of sieve
Step 4: The above step is OK, then cover with the lid and set the right time
Step 5: Power on
Step 6: It's time to set up, power off
Step 7: Remove the lid and sieves one by one from the top to bottom
Step 8: Summary: measure the weight of test material leaved on each sieve and bottom pan, and then gets their proportion and other related analysis result.

If you need one set of lab test sieve, please let's know the following requirements:
1. How many sieves you need
2. The mesh size for each sieves
3. Please suggest the voltage in your plant

Email us and get the best quotation.
