• Model NO.：SKZ1054-CO2 H2S O2 CH4
• Gas：CO2 H2s O2 CH4
• Type：Electrochemical Gas Analyzer
• Measure Range：CH4 0-100%Lel CO2 0-5000ppm O2 0-30%Vol
• Measure Range2：H2s:0-100ppm
• Resolution：CH4 0.01%Lel CO2 1ppm O2 0.01%Vol H2s 0.01ppm
• CE Certification：Exia II CT4, IP66
• Response Time：Less Than 10s

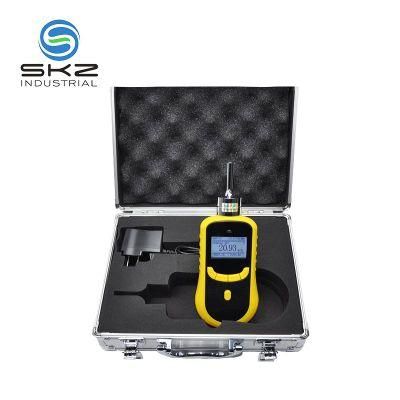

• Transport Package：Customed Foam Inner to Fixed The Detector, Aluminu
• Specification：27X23X11 cm
• Trademark：SKZ
• Origin：China
• HS Code：9027100090
• Production Capacity：50000PCS,Year

Gas Detected

Carbon dioxide hydrogen sulfide methane oxygen CO2 H2S O2 CH4

Detection principle

O2 H2S:Electrochemical principles
CH4:Catalytic combustion principles

CO2:Infrared principles

Sampling Method

Pump- suction, flow up 1L/min, pump suction size ten stalls adjustable

Data logger

100,000 sets of data can be stored, storage interval available set, minimum 5S, can be browse

Measure Range

CH4 0-100%LEL

CO2 0-5000ppm

O2 0-30%VOL

H2S 0-100ppm

Resolution

CH4 0.01%LEL

CO2 1ppm

O2 0.01%VOL

H2S 0.01ppm

Precision

2% FS

Response Time

≤ 10S

Repeatability

≤ ± 1%

Zero shift

≤ ± 1% (F.S / Year)

Operating language

Support in English

Temperature

-40 ºC ~ 70 ºC

Explosion-Proof

Exia II CT4

Alarm mode

Sound, light, vibration

Dimensions

205*75*32mm

Recovery Time

≤ 10S

Linearity error

≤ ± 1%

Display

LCD

Gas unit

multiple gas unit

Humidity

0-95% RH

Degree of protection

IP66

Operating time

100 hours (off pump)

Weight(net)

300g

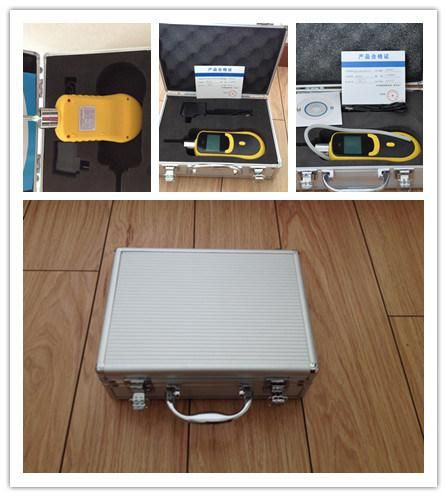

Packaging & Shipping
