• Model NO.：BK-TC
• Performance：Automatic
• Power Supply：220V
• Weight：0-50kg
• Certification：CE, RoHS
• Customized：Customized
• Model：Bk-Tc
• Type：Gradient Thermal Cylcer
• Standardmodule：96 Module: 96 Wells*0.2ml or 9677module: 96 Wells*
• Heating and Cooling Technology：Newest Generation Peltier-Based Technology, with L
• Language：English
• USB Flash Drive：Unlimited Storage of Protocols with USB Flash Driv
• Communications Ports：2USB 2.0 and LAN
• Mode of Temperature Control：SIM-Tube & Block Mode
• Ramping Rate Adjustable：Yes
• Height of Heated Lid：Steplessly Adjustable Lid,
• Open Method：Innovative Top-Open Technology Realizesopen and Li
• Auto Shut-off：Yes
• Max.Step &Max.Cycle：30 Steps,100 Typicalcycles, Max60,000nestingcycles
• Time & Temp. Increment/Decrement：Yes, Available for Long PCR & Touchdown PCR
• Power：Global Switch Power Supply:85V~265V,50-60Hz Max.60
• Transport Package：Wooden
• Specification：430mm*344mm*345mm
• Trademark：BIOBASE
• Origin：Shandong, China
• Production Capacity：100units,Month

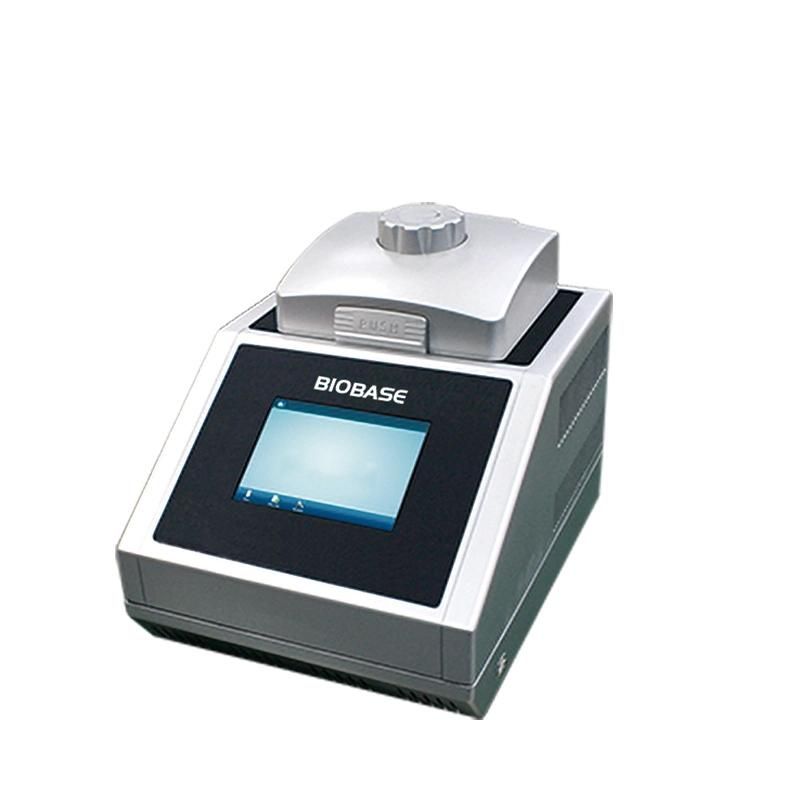

Detailed Photos

Model

BK-EO

BK-TC

Sample Capacity

96-PCR plate(full-skirted)

96*0.2ml tubes

12*8-strip

Cooling Technology

Peltier-based

Display

LCD display and touch creen(5.7 inch)

6.5 inch, 262 144 color LCD display and touch screen

Temp. Range

4.0~99.9ºC

Heating Speed Of Ramping

Up to 4ºC/sec

Cooling Speed Of Ramping

Up to 4ºC/sec

Temp. Uniformity

≤±0.3ºC

≤±0.2ºC

Temp. Accuracy

≤±0.1ºC(50ºC), ≤±0.2ºC (≥90ºC)

Temp. Control Modes

BLOCK or TUBE

Ramping Range Adjustable

0.1ºC~4ºC

Memory

≥250 typical programs onboard, unlimited with USB flash drive expansion

Max. No. Of Cycle

99. Suitable for nested PCR

Time Up/Down

0~9 min59s, suitable for long PCR

Temp. up/down

0~9.9ºC,suitable for touchdown PCR

Auto Pause/Power Protection

yes

Soak Function

Yes

Gradient Range Of Temp. Difference

1~30ºC

Gradient Range

30~99.9ºC

Hot-lid Temp. Range

Room temperature +5ºC~110ºC(default 105ºC)

Height Of Hot-lid

Automatic Adjusted

Auto Shut-off Function Of Hot Lid

While block temperature is lower than set temperature or program ends, the hot-lid will be automatically closed

Communication Interface

USB

LAN

Power Supply

100~240V, 50/60Hz, 600W

Dimension

335*260*270mm

345*260*270mm

Packing Size(L*W*H)

495*410*395mm

495*410*395mm

Gross Weight

10.5kg

12.5kg

Certificates

Ferrotec Peltier/CE/RoHS2.0
