• Model NO.：TP-MG
• Specification：CE,ISO
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. TP-MG Specification CE/ISO Trademark TOP Origin China HS Code 9027809900 Production Capacity 200 Sets/Month

Product Description

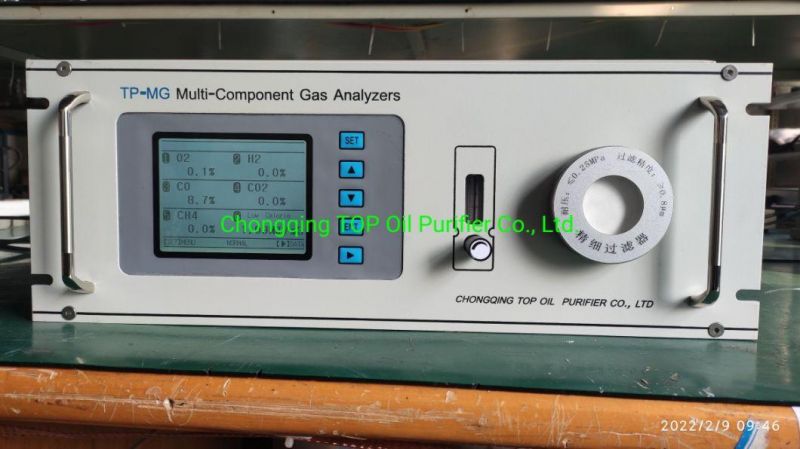

Factory Online Syngas Analyzer(TP-MG)


Product Application
The multi-component gas analyzer adopts analytical calculation method to quickly and accurately analyze the concentration value of one or more gases, and calculate the corresponding calorific value according to the concentration value.
The multi-component gas analyzer adopts imported infrared sensors, fuel cell oxygen sensors and thermal conductivity sensors, and uses advanced digital processing technology to realize continuous, automatic and rapid detection of CO2, CO, CH4, H2, O2, CnHm, etc. online test.

Application field
The product has high measurement accuracy, simple structure, convenient operation and good practicability. It is currently widely used in the fields of steel, chemical industry, coal gasification, biomass gasification and cracking.


Product Features
1.TP-MG type multi-component gas analyzer is an online continuous analysis instrument for as concentration. It can output electrical signals of 4-20mA or customized according to user requirements. It adopts Modbus RTU communication protocol and RS232 or RS485 communication. Mode and computer serial port connection
2.The instrument adopts 320×240 LCD wide viewing angle display, desktop or panel mounting, convenient and simple installation
3.Comes with a precision filter, which greatly improves the service life of the sensor
4.The meter has data backup and data recovery functions
5.Dimensions: 4U standard-484 width × 177 height × 390 depth (mm)
6.Hole size: 4U standard-446 wide × 179 high (mm)

Technical Parameter

Measuring range	CO2:0-100%(Optional range components) CO: 0-100% H2: 0-100% O2: 0-100% CH4: 0-100% CnHm:0-50%
Resolution ratio	0.01%/0.1%(Select according to range)
Accuracy of measurement	≤±2%F.S
Repeatability	≤±1%F.S
Stability	Zero drift:≤±1%F.S/7d          Range drift:≤±1%F.S/7d
Response time	T90≤30S
Preheating time	≤45min
Flow of sample gas	300~1000mL/min
Intake pressure	0.05Mpa≤Inlet pressure≤0.25Mpa
Working power supply	100~240VAC 50/60Hz 1A
Ambient temperature	-5ºC~+45ºC
Ambient humidity	≤90%RH
Signal output	4~20mA Or customized according to user requirements
Cummunication mode	RS232 or RS485(Protocol:Modbus RTU)
Built-in precision air pump (optional)	Built-in precision pump (optional)
