Analysis Instrument

Factory Supply Price Methane CH4 Gas Test Analyser Leakage Machine Testing Alarm Unit

SKZ International Co., Ltd.
  • After-sales Service:24 Hours Online Customer Service
  • Warranty:1 Year
  • Customized:Customized
  • Portable:Portable
  • Certification:CE
  • Gas:CH4

Base Info

  • Model NO.:SKZ1050-CH4
  • Type:Infrared Absorption Analyzer
  • Measure Range:0-5000, 10000ppm, 5, 50, 100%Vol, 100%Lel
  • Resolution:1ppm, 0.01%Lel, 0.01%Vol
  • CE Certification:CE Marks
  • Response Time:Less Than 10s
  • Waterproof:IP66
  • Sensor:Imported High Precision Sensor
  • Alarm Points:Two Sound and Light Alarm Points
  • Transport Package:Customed Foam Inner to Fixed The Detector, Aluminu
  • Specification:27X23X11 cm
  • Trademark:SKZ
  • Origin:China
  • HS Code:9027100090
  • Production Capacity:50000PCS,Year

Description

Gas Detected

Methane CH4

Detection principle

Infrared principles

Sampling Method

Pump- suction, flow up 1L/min, pump suction size ten stalls adjustable

Data logger

100,000 sets of data can be stored, storage interval available set, minimum 5S, can be browse

Measure Range

0-5000,10000ppm,5,50,100%Vol,100%LEL

Resolution

1PPM, 0.01%VOL, 0.01%LEL

Precision

2% FS

Response Time

≤ 10S

Repeatability

≤ ± 1%

Zero shift

≤ ± 1% (F.S / Year)

Operating language

Support in English

Temperature

-40 ºC ~ 70 ºC

Explosion-Proof

Exia II CT4

Alarm mode

Sound, light, vibration

Dimensions

205*75*32mm

Recovery Time

≤ 10S

Linearity error

≤ ± 1%

Display

LCD

Gas unit

multiple gas unit

Humidity

0-95% RH

Degree of protection

IP66

Operating time

100 hours (off pump)

Weight(net)

300g


Standard

1 detector, 1 USB data cable, 1 charging plug, 1 aluminum alloy packing box, 1 manual, 1 warranty card.
 Optional

Data download (EXCEL fromat to computer) function, detachable needle, hose, holster, waterproof and dustproof filter, high temperature probe (up to 1200 degrees)
 Factory Supply Price Methane CH4 Gas Test Analyser Leakage Machine Testing Alarm Unit

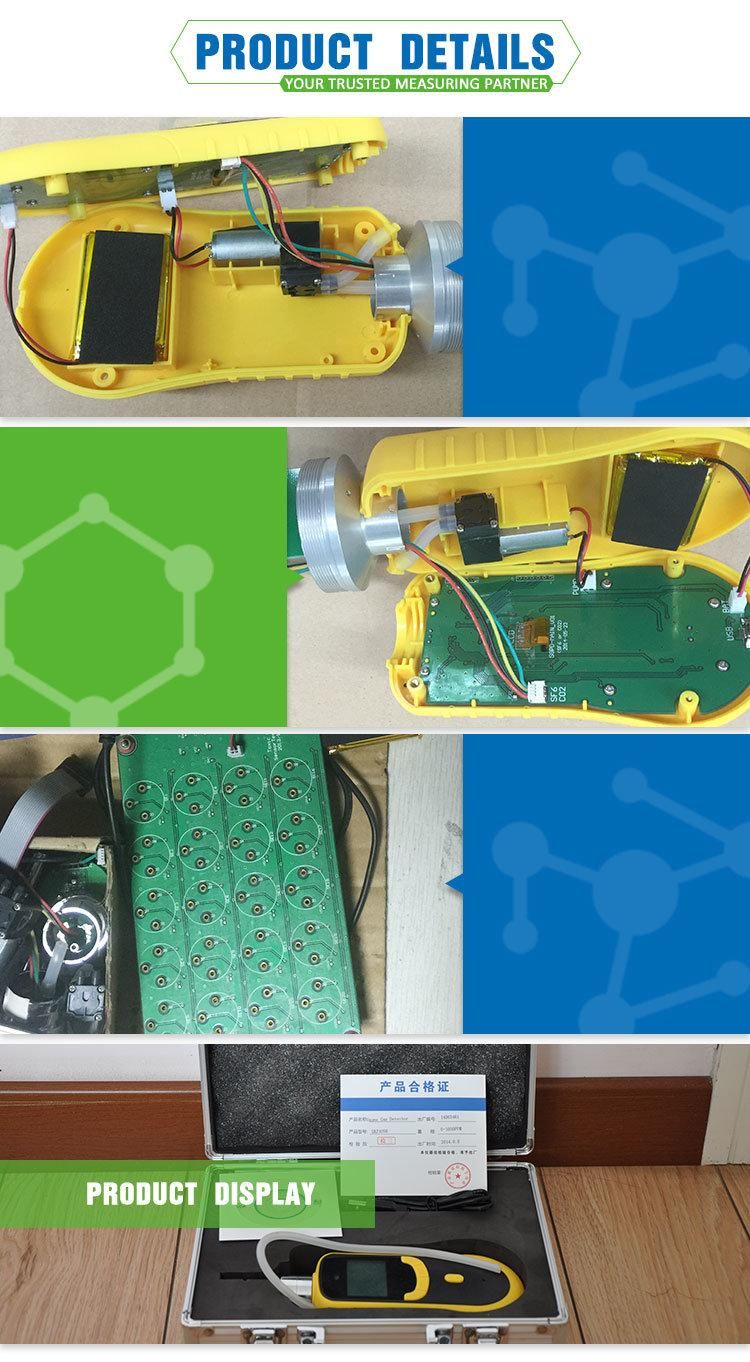

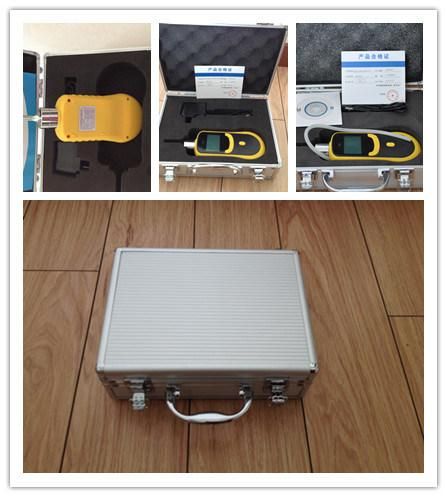

Packaging & ShippingFactory Supply Price Methane CH4 Gas Test Analyser Leakage Machine Testing Alarm Unit
