• Model NO.：MOT500-O2
• IP Rating：IP 65
• Explosion Proof Sign：Exdll CT4 (Ia)
• Power：24VDC
• Analog Digital Output：4-20mA Output(0-5V,0-10V Optional)
• Material：Aluminum,Explosion and Corrosion Proof
• Operating Pressure：0-200kpa
• Modbus Digital Output：RS485 Output
• Relay Output：2-3 Relays Output
• Display：LCD Displayed
• Sampling：Diffusion
• Transport Package：Standard Carton Packaging 26*21*14cm

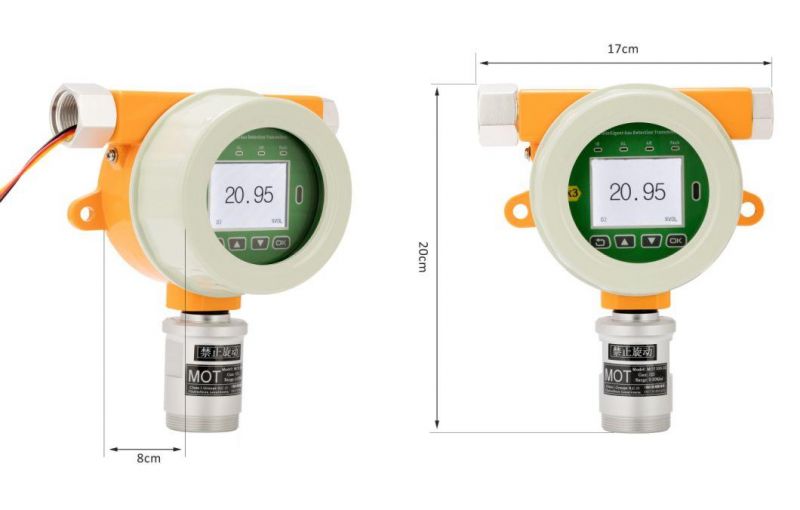

• Specification：Product size: 20*17*8cm
• Trademark：Korno or customized
• Origin：China
• HS Code：9027100010
• Production Capacity：10000pieces,Month

Product Type:Online,Oxygen (O2)Sensor:Thermal conductivity Gas sensorDetection Pattern:Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detectionDetection Range:0-100%VOLResolution:0.01%VOLDetection Accuracy:≤±3%F.SLinearity error:≤±1%F.SReaction Time:≤20S(T90)Zero drift:≤±1%(F.S/Year)Recovery Time:≤20SRepeatability:≤±1%F.SRelay output:Two relays output,Contact rating:24VDC 3A/220VAC 3AExplosion Proof Sign:ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807Outputs:                  Analog:4-20mA signal,0-5V,0-10V
              Modbus: RS485 signal
              Pulse signal or TCP/IP signal,optionalAlarm Setting:Two alarm set points
Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarmControllers:Compatible with DN3000/DN9000,as well as most DCS/PLC systemsIP Rating :IP65Material:Aluminum
,Explosion and corrosion proofConnection:3/4″NPT,1/2″NPTDimensions:200×160×80mm(L×W×H)Weight:1.5 Kg(Net weight)Operating
Temperature:-30 ~ 60ºCRelative Humidity:≤90%RH,Non-condensingOperating
Pressure:0 ~ 200KpaOperating Voltage:24VDC(9~30VDC)Standard Accessories:-User manual
-Certification
-Calibration coverOptional Accessories:-hose(5*8mm),drying tube,water separator or pumping pump
-infrared remote control
-temperature and humidity sensor,SMS alarm,3G module or wireless transmission module
>>> Details

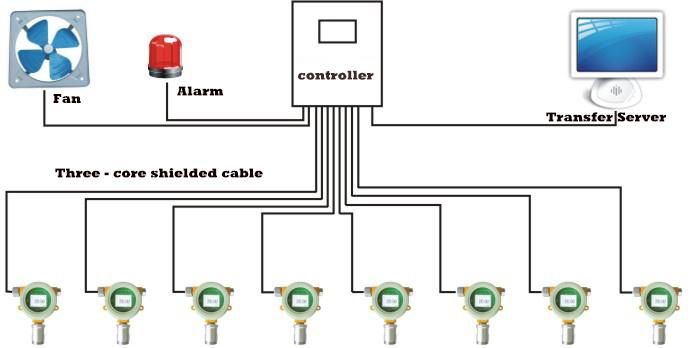

>>> 4-20mA Connection Mode

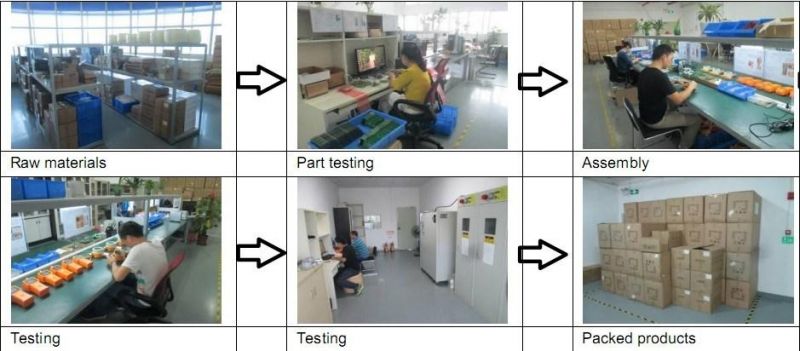

>>>Quality Control




>>> Our service

1. All products and accessories have been 100% tested before shipping.
2. We provide 12-Mounths warranty for non-deliberate damage.
3. OEM & ODM are welcomed~

>>> Contact US
