• Model NO.：ET-V1
• Power Supply：220V
• Weight：0-50kg
• Customized：Non-Customized
• Model：Et-V1
• Gel Trays(W*L)：100*100mm
• Buffer Volume：150ml
• Comb Thickness：0.75, 1.0 &1.5mm
• Comb Throughput：11, 15 Samples
• No. of Samples：11~30
• External Size(L*W*H)：150*120*115mm
• Package Size(L*W*H)：370*300*220mm
• Gross Weight：2 Kg
• Transport Package：Standard Package
• Specification：150*120*115mm
• Trademark：BIOBASE
• Origin：China
• Production Capacity：500,Month

Basic Info.

Model NO. ET-V1 Power Supply 220V Weight 0-50kg Customized Non-Customized Model Et-V1 Gel Trays(W*L) 100*100mm Buffer Volume 150ml Comb Thickness 0.75, 1.0 &1.5mm Comb Throughput 11, 15 Samples No. of Samples 11~30 External Size(L*W*H) 150*120*115mm Package Size(L*W*H) 370*300*220mm Gross Weight 2 Kg Transport Package Standard Package Specification 150*120*115mm Trademark BIOBASE Origin China Production Capacity 500/Month

Product Description

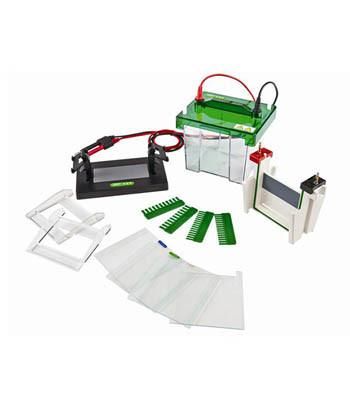

Vertical Electrophoresis tank ET-V1




Features:
* Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
* Dismountable electrodes make maintenance easily.
* The PC transparent top lid prevents liquid volatilization and electricity leakage.
* Auto-switch-off when the lid is removed
* Recommended power supply:BPS-1/BPS-2

Model	ET-V1
Gel Tray (W*L)	100*100mm
Gel Trays(W*L):	82*88mm
Comb Thickness	0.75, 1.0 &1.5mm
Comb Throughput	11, 15 samples
Amount of Gel:	1~2 piece
NO. of Samples	11~30
Buffer Volume	750ml
Standard Accessories	Body tank with electrode*1, Gel casting base*1, Notched glass plates*4, 0.75mm bonded glass spacer*2,  1.0mm bonded glass spacer*2, 1.5mm bonded glass spacer*2,   0.75 mm thickness11 wells comb*2, 1.0mm thickness11 wells comb*2, 1.5mm thickness 11 wells comb* 2, 0.75mm thickness 15 wells comb*2, 1.0mm thickness 15wells comb*2, 1.5mm thickness 15wells comb*2, Gel shovel*1, Clamp version*2, Dummy plate*1
External Size (L*W*H)	150*120*115mm
Package Size(L*W*H)	370*300*220mm
Gross Weight	2kg
