• Model NO.：MOT500-O2
• Type：Electrochemical Gas Analyzer
• Analog Digital Output：4-20mA Output(0-5V,0-10V Optional)
• Material：Aluminum,Explosion and Corrosion Proof
• Operating Pressure：0-200kpa
• Modbus Digital Output：RS485 Output
• IP Rating：IP 66
• Explosion Proof Sign：Exdll CT4 (Ia)
• Power：24VDC
• Relay Output：2-3 Relays Output
• Display：LCD Displayed
• Sampling：Diffusion
• Transport Package：Standard Carton Packaging 26*21*14cm
• Specification：Product size: 20*17*8cm
• Trademark：Korno or customized
• Origin：China
• HS Code：9027100090
• Production Capacity：10000pieces,Month

Product Type:Online,Oxygen (O2)Sensor:Electrochemical Gas sensorDetection Pattern:Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detectionDetection Range:0-100%VOLResolution:0.01%VOLDetection Accuracy:≤±3%F.SLinearity error:≤±2%F.SReaction Time:≤20S(T90)Zero drift:≤±2%(F.S/Year)Recovery Time:≤20SRepeatability:≤±2%F.SRelay output:Two relays output,Contact rating:24VDC 3A/220VAC 3AExplosion Proof Sign:ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807Outputs:              Analog:4-20mA signal,0-5V,0-10V
              Modbus: RS485 signal
              Pulse signal or TCP/IP signal,optionalAlarm Setting:Two alarm set points
Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarmControllers:Compatible with DN3000/DN9000,as well as most DCS/PLC systemsIP Rating :IP66Material:Aluminum

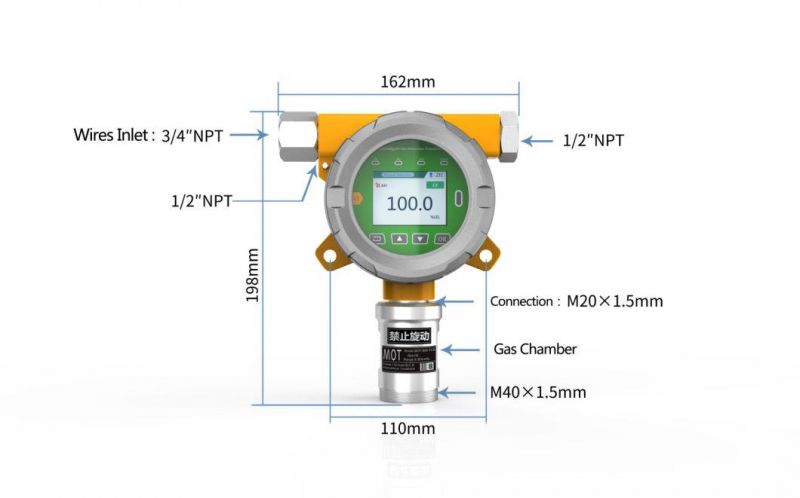

,Explosion and corrosion proofConnection:3/4″NPT,1/2″NPTDimensions:200×160×80mm(L×W×H)Weight:1.5 Kg(Net weight)Operating
Temperature:-30 ~ 60ºCRelative Humidity:≤90%RH,Non-condensingOperating
Pressure:0 ~ 200KpaOperating Voltage:24VDC(9~30VDC)Standard Accessories:-User manual
-Certification
-Calibration coverOptional Accessories:-hose(5*8mm),drying tube,water separator or pumping pump
-infrared remote control
-temperature and humidity sensor,SMS alarm,3G module or wireless transmission module
>>> Details



>>> Customize Service:
1) Show your company name and logo at the boot interface
2) Print your company name,information,logo at the label and manual
3) Design stainless steel nameplate with your company name for free(≥20PCS)
4) We can also silk-printing your Logo,design another color of the case for you
      if you have a large order.For more details,please contact us^ ^



>>> Our service

1. All products and accessories have been 100% tested before shipping.
2. We provide 12-Month warranty for non-deliberate damage.
3. OEM & ODM are welcomed~
