• Model NO.：PTT-P5
• Type：Particle Size Analyzer
• Function：Oil Particle Contamination Analysis
• Applicable Oil：Engine Oil, Gear Oil, Transformer Oil, Hydraulic O
• Counting Principle：Photoresist (Shading) Method
• Light Source：Semiconductor Laser
• Particle Size Range：5.1~500μm
• Detection Speed：20-60ml,Min
• Dimensions：275*220*107mm
• Net Weight：2.5kg
• Transport Package：Standard Export Box
• Specification：GB,T21540, ISO4402, GB,T18854
• Trademark：TOP OIL TESTER
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. PTT-P5 Type Particle Size Analyzer Function Oil Particle Contamination Analysis Applicable Oil Engine Oil, Gear Oil, Transformer Oil, Hydraulic O Counting Principle Photoresist (Shading) Method Light Source Semiconductor Laser Particle Size Range 5.1~500μm Detection Speed 20-60ml/Min Dimensions 275*220*107mm Net Weight 2.5kg Transport Package Standard Export Box Specification GB/T21540, ISO4402, GB/T18854 Trademark TOP OIL TESTER Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Sets Per/Mouth

Product Description

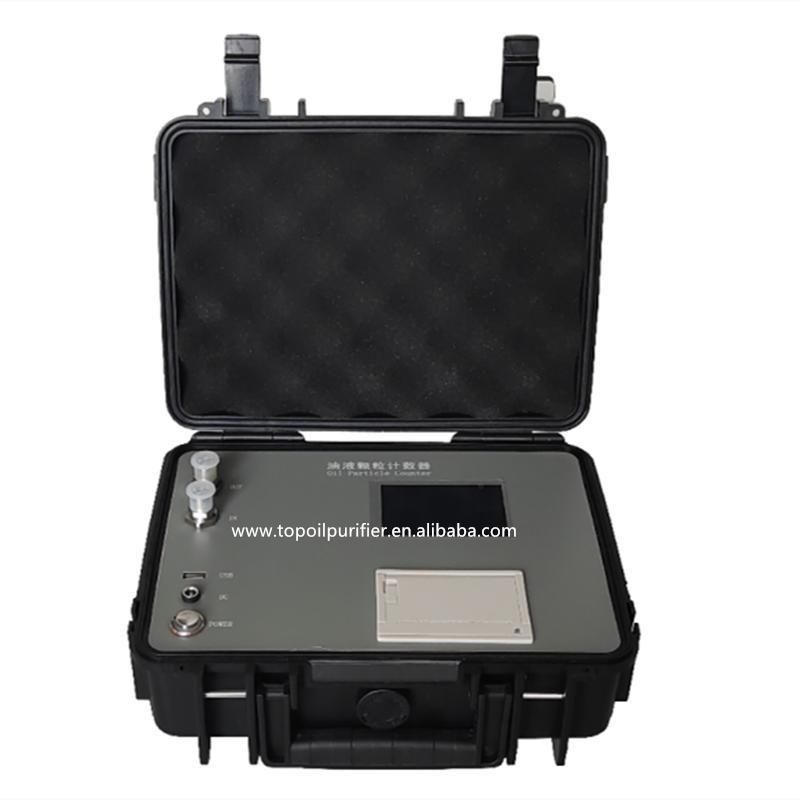

PTT-P5 Oil Particle Counter
     Application:

The PTT-P5 portable particle counter adopts the photoresist (shading) method of counting principle specified by the International Hydraulic Standards Committee, and is specially used for the rapid detection of oil contamination levels on site. It has the advantages of small size, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure and other harsh conditions. The built-in micro water sensor and temperature sensor can detect the water content and oil temperature at the same time as the pollution degree detection. It is suitable for engine oil, gear oil, transformer oil (ie insulating oil), hydraulic oil, lubricating oil, synthetic oil and other oils, and can be widely used in aerospace, petrochemical, transportation, port, steel metallurgy, automobile manufacturing and other fields.


Main Features:

1. Using the principle of photoresist (shading) method, using high-precision laser sensor, small size, high precision and stable performance.
2. Suitable for laboratory or field testing, and optional pressure reducing device for online high pressure measurement, real-time monitoring of particle contamination in oil systems.
3. Can be connected to external pressure chamber to form positive/negative pressure to realize the detection of high viscosity samples and sample degassing.
4. Built-in data analysis system, which can display the real data of particle size of each channel and automatically determine the sample grade.
5. The pipeline is made of 316L and PTFE material, which can meet the detection of various organic solvents and oils.
6. With volume flushing and long flushing modes, it is convenient for users to use and maintain the equipment.
7. Built-in ISO4406, NAS1638, SAE4059, GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle pollution level standards.
8. Built-in calibration function, can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards.
9. Built-in data analysis system, which can automatically determine the sample grade according to the standard, with automatic data processing and printing functions.
10.Any alarm level can be set to realize pollution or cleanliness detection.
11.Built-in micro water sensor and temperature sensor.
12.Chinese and English input, one-key switching, with preset, input, modification, storage functions, convenient and fast
operation.
13.Large storage, you can choose to store in the instrument internal or external storage device.
14.Embedded design, high-strength shell, easy to carry, suitable for all kinds of construction machinery.

Technical parameter
1. Light source: semiconductor laser
2. Detection speed: 20-60mL/min
3. Offline detection of sample viscosity: ≤100cSt, optional pressure chamber when the viscosity is high
4. On-line detection pressure: 0.1~0.6Mpa (the maximum pressure of the optional decompression device can reach 42Mpa)
5. Particle size range: 1~500μm
6. Interface: USB interface, power interface
7. Data storage: Provide 1000 groups of data storage space, and support USB storage
8. Sensitivity: 0.8μm or 4μm (c)
9. Limited coincidence error: 40000 capsules/ml
10. Counting volume: 1~999ml
11. Counting accuracy: error <±10%
12. Protection level: IP67
13. Test time interval: 1 second to 24 hours
14. Test sample temperature: 0~80ºC
15. Water activity reference value: 0~1aw (±0.05aw)
16. Water content: 0~360ppm (±10%)
17. Working temperature: -20~60ºC
18. Power supply: AC 220V±10%, 50/60Hz or DC12-40V
19. Weight: 2.5kg
20. Volume: 275×220×107mm

Related Certificates:

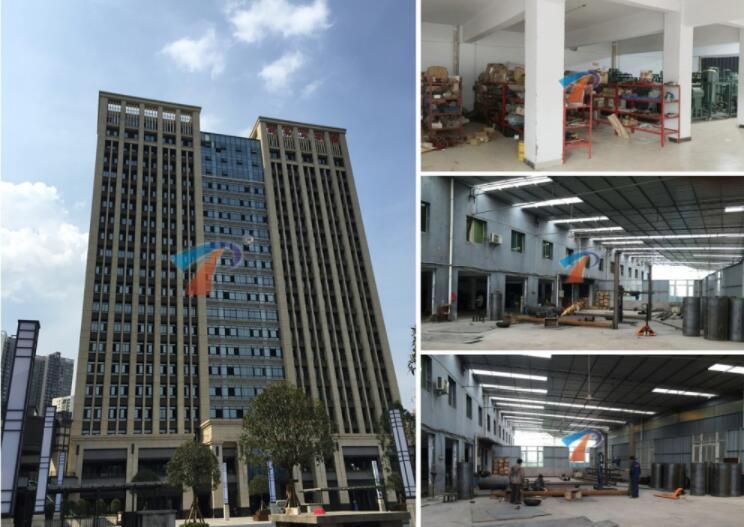

Our Company:




Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

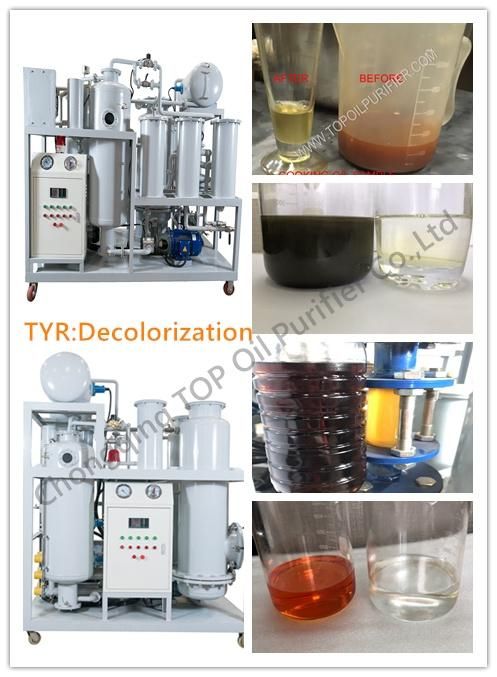

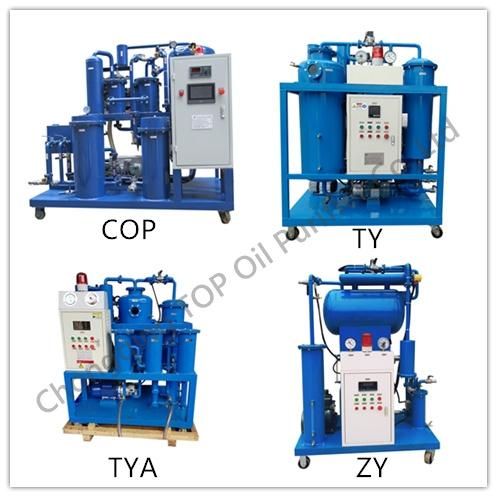

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

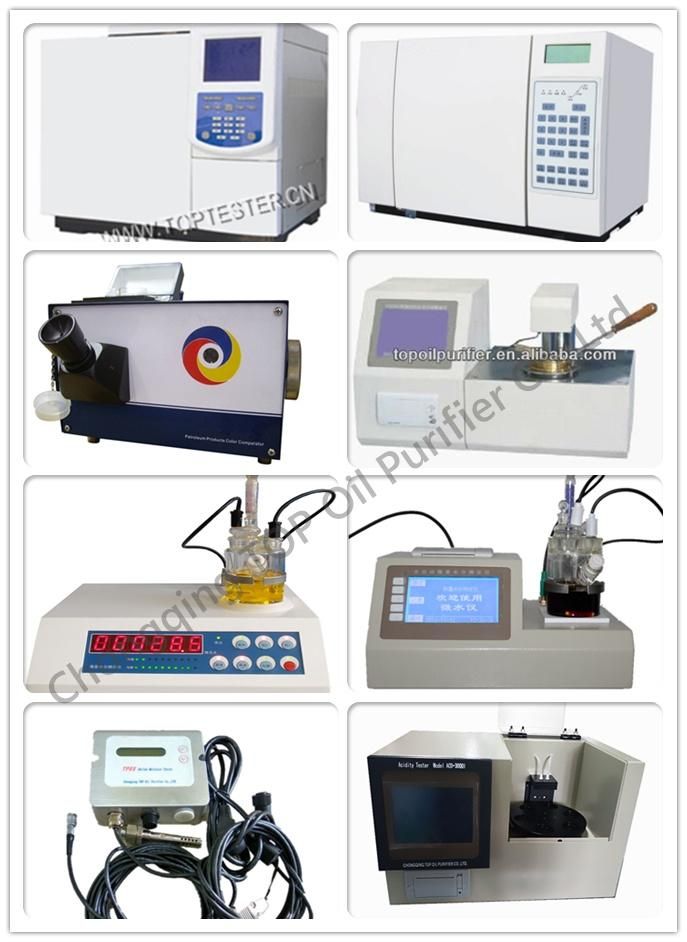

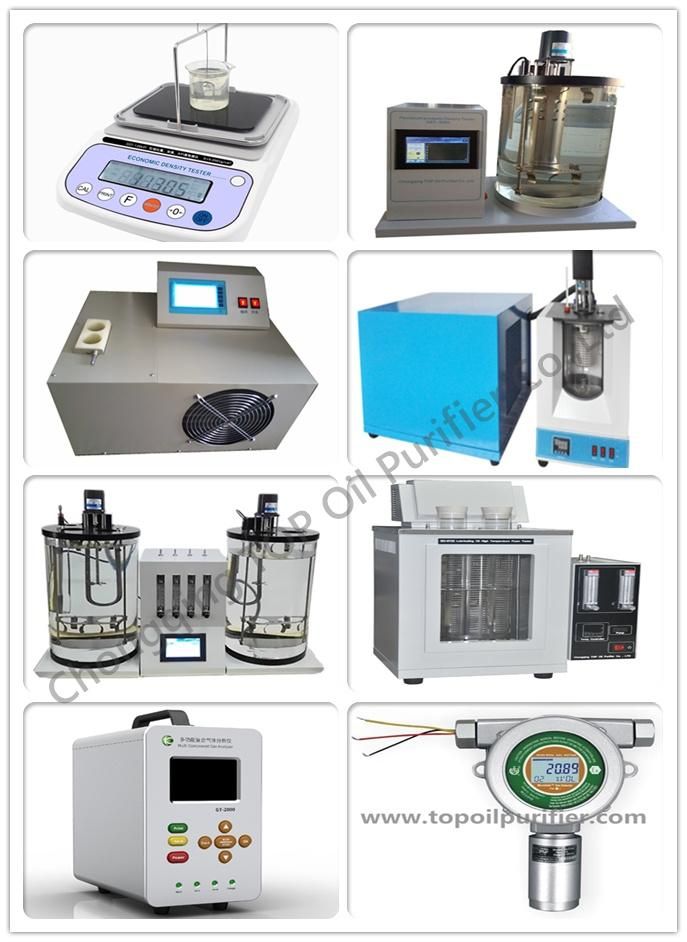

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
