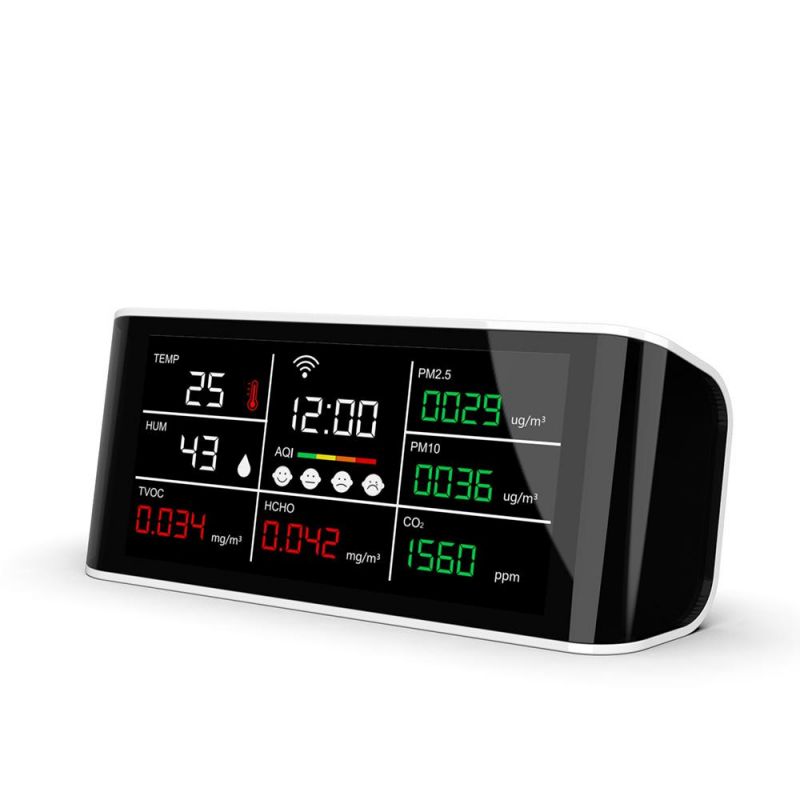

CO2 Meter Pm2.5 Air Quality Monitor Dust Smoke Measuring Sensor Meter

Shenzhen Beichen Photonics Technology Co., Ltd.
  • Customized：Customized
  • Portable：Portable
  • Certification：FCC, CE, RoHS
  • Gas：CO2
  • Type：Infrared Absorption Analyzer
  • Product Name：Multi-Gas Detectors

Base Info

  • Model NO.：BC69
  • Detecting Range：CO2 Pm2.5, Hcho, Tvoc, Aqi, Pm1.0, Pm1
  • CO2 Sensor：Infrared ( Ndir )
  • Hcho：0.001-1.999mg,M3
  • Tvoc：0.001-9.999mg,M3
  • Pm2.5 Sensor：Laser
  • Material：Metal
  • Product Size：131*78*67.5 mm
  • Usage：Indoor ,in Car ,New House ,Bedroom
  • Power Supply：Rechargeable Li-Battery 3000mAh
  • Transport Package：Color Box
  • Specification：131*78*67.5 MM
  • Origin：China
  • Production Capacity：5000set,Month

Description

Function 1PM2.5  PM1.0 PM10Function 2CO2Function 3HCHO(Formaldehyde)Function 4TVOC Function 5Temp HumFunction 6Clock AlarmMaterial  MetalPower supplyBuilt-in Li-battery rechargeable 3000mahCO2 Detection data range0-5000ppmPM2.5 Detection data range0.001-999ug/M3HCHO(Formaldehyde)0.001-1.999mg/M3the standard for formaldehyde (HCHO) ≤ 0.10mg / m3 standard for total volatile organic compounds (TVOC) ≤ 0.6mg / m3



Standard Accessories :

-Main device DM601

-USB Charging cable

-User guide



Product Specifications

Display method: 4.3" LCD screen display, 320 x 240 pixels

Atmospheric pressure: 86Kpa - 106Kpa

 CO2 Technology:  infrared ( NDIR)

PM2.5 Sensor technology: Laser Scattering

HCHO  technology: Electrochemistry sensor
TVOC  Semiconductor sensor

Sampling time: 1.5 seconds

Product Size: 192*55*80 MM

Detection temperature: -10°C to 50°C

Relative humidity: 20% - 85%

Storage temperature: -10°C to 60°C

Concentration unit for HCHO and TVOC: mg/m³

Power source: Lithium battery with 3000 mAh capacity; 5V DC power charging via micro USB port

Product weight: 225g

CO2 Meter Pm2.5 Air Quality Monitor Dust Smoke Measuring Sensor Meter


CO2 Meter Pm2.5 Air Quality Monitor Dust Smoke Measuring Sensor MeterCO2 Meter Pm2.5 Air Quality Monitor Dust Smoke Measuring Sensor MeterCO2 Meter Pm2.5 Air Quality Monitor Dust Smoke Measuring Sensor Meter

1.Q:What test index are included for air quality monitor?
A:CO2: is for carbon dioxide,Infrared sensor(NDIR)Temperature and Humidity Suitable for detecting CO2 concentration in industrial,agricultural and residential environments. Control the ventilation system according to the monitored target value (CO2 concentration).


2.Q:Can it connect to wifi?
A: No, Details connection way, you can contact our sales.


3.Q:What is the standard range for CO2?
A:with traffic light to remind CO2 air quality as below;
Good 400~800PPM;OK 800~1200PPM;Bad 1200~5000PPM


4.Q:How to charge it?
A:By Type-C charging line. Regular just offer Type-C charging line. We also offer adapters(Like US adapter, Europe adapter...) if add extra cost.


5.Q:How about OEM or custom?
A:Sure, As professional and stable manufacture for CO2 meter factory, we can support many custom contents as below;
1.Printing logo, support printing logo on Lens or device.
2.Interface contents, support custom interface like language, colors....
3.Package, support custom package(We can send neutral artwork to the client to design package)·
