• Model NO.：T6012
• Certification：RoHS, CE, ISO9001, ISO9001, RoHS, CE, ISO9001, RoHS, CE, SGS, ISO14001
• Type：Concentration Meter
• Measuring range：(0.5ppm ~ 10000 ppm)
• Resolution：pH:+,-0.01pH; 0.01mg,L
• Accuracy：1% Basic Error
• Signal output：RS485 MODBUS RTU
• Dimensions：144X144X118mm
• Mounting hole size：138X138mm
• Transport Package：Carton Box
• Specification：Measuring range: 0-14pH
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027809900
• Production Capacity：2000set,Month

Basic Info.

Model NO. T6012 Certification RoHS, CE, ISO9001, ISO9001, RoHS, CE, ISO9001, RoHS, CE, SGS, ISO14001 Type Concentration Meter Measuring range (0.5ppm ~ 10000 ppm) Resolution pH:+/-0.01pH; 0.01mg/L Accuracy 1% Basic Error Signal output RS485 MODBUS RTU Dimensions 144X144X118mm Mounting hole size 138X138mm Transport Package Carton Box Specification Measuring range: 0-14pH Trademark twinno Origin Shanghai, China HS Code 9027809900 Production Capacity 2000set/Month

Product Description

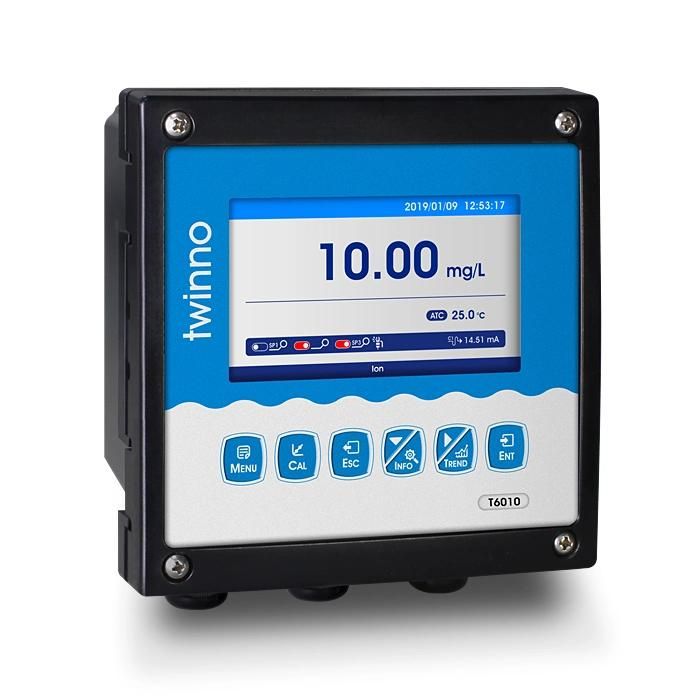

T6010 Online Ion Meter

Industrial online pH/ORP meter is a microprocessor-based water quality online monitoring control instrument. The instrument equipped with different types of pH or ORP electrode. It is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation engineering, medicine, food and beverage, water treatment, aquaculture, modern agricultural planting and other industries. Continuously monitor and control pH value, ORP value and temperature of aqueous solution.

Instrument features:
Large-screen color LCD display
Intelligent menu operation
Data Recording & Trend Display
Multiple automatic calibration function
Differential signal measurement mode, stable and reliable
Manual and automatic temperature compensation
Three sets of relay control switches
High & low alarm and hysteresis control
4-20mA&RS485 Multiple output modes
Multi parameter display Simultaneously shows - pH, Temp, mV,etc.
With password protection to prevent misoperation by non-staff.

Technical parameters:
(1)Measuring range:
 Ion concentration:0~50000mg/L;
Temperature:-5~150.0ºC;
(2)Resolution:
Ion concentration: 0.01mg/L;
Temperature:0.1ºC;
(3)Accuracy:
Ion concentration:±2.5%;
Temperature:±0.3ºC;
(4)Two current outputs:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(5)Signal output:RS485 MODBUS RTU;
(6)Three sets of relay control contacts:
5A 250VAC,5A 30VDC;
(7)Power supply:
85~265VAC±10%,50±1Hz,power≤3W;
9~36VDC,power consumption:≤3W;
(8)Dimensions:144×144×118mm;
(9)Installation: Panel & wall mounting or pipeline;
Panel opening size : 138×138mm;
(10)Protection Level:IP65;
(11)Weight:0.8kg;
(12)Working conditions:
    Working temperature:-10~60ºC;
    Relative humidity: ≤90%;
    No strong magnetic field around except the geomagnetic field.



FAQ:

1.Are you trading company or manufacturer ?
We are factory.


2.How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

3.Does your price is competitive?
We make sure to offer you the best quality with competitive price.

4.What is your terms of payment?
We accept 100% T/T in advance,balance before shipment.
 .
5.When I receive it after pay?
Normal models can be delivered with 3-7days,
please contact us to check transport time to your address.

6.How to deliver?
We can send by Express, by Sea and by Air.

7.Is will be broken during transport?
Please do not worry, we do standard export package.

8.What should I do if I do not know how to use?
User manual will be sent together, you can also contact us with more technological support.

Delivery and Packing:

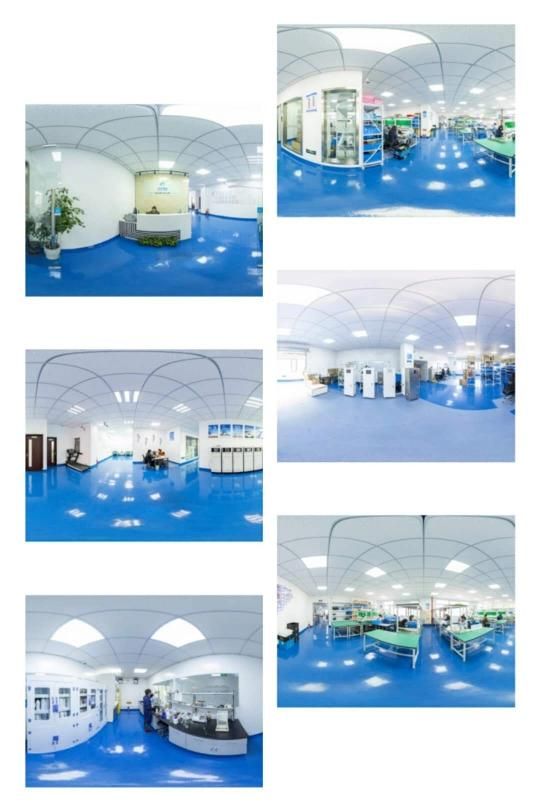

Our company:
