• Model NO.：HZCD-801
• Name：Cheap Price Sf6 Gas Water Content Moisture Dew Poi
• Measurement Range：Dew Point: -80~+20ºC
• Precision of Dew Point：±0.5ºC
• Resolution Ratio：Dew Point 0.1ºC or 0.1ppm
• Repeatability：±0.5ºC
• Precision and Repeatability：±0.5%, Have Nothing to Do with The Flow
• Gas Measurement Range：H2s:1 ~ 200ppm
• Work Voltage：220VAC±10% 50Hz
• Pressure：0~20bar
• Output Interface：USB1.1 Specification
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：China
• HS Code：9031809090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZCD-801 Name Cheap Price Sf6 Gas Water Content Moisture Dew Poi Measurement Range Dew Point: -80~+20ºC Precision of Dew Point ±0.5ºC Resolution Ratio Dew Point 0.1ºC or 0.1ppm Repeatability ±0.5ºC Precision and Repeatability ±0.5%, Have Nothing to Do with The Flow Gas Measurement Range H2s:1 ~ 200ppm Work Voltage 220VAC±10% 50Hz Pressure 0~20bar Output Interface USB1.1 Specification Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin China HS Code 9031809090 Production Capacity 100 PCS/Month

Product Description

Made In China Digital LCD Portable Sf6 Gas Purity Analyzer

I.Description
HZCD-801 SF6 Gas Purity Analyzer adopts thermal conductivity sensor with high stability and high precision, according to the difference in thermal conductivity of gas, it can accurately and quickly measure the content of random one gas of two mixture gases. Unique technique of wide-range temperature compensation is adopted, so as to guarantee the measurement precision of instrument. It can monitor gas purity.


II.Main technical data
1)  Measuring range: 0~100% (percentage composition of SF6)
2)  Measuring precision: ±0.1%
3)  Resolution: 0.1%
4)  Response time: 15s
5)  Sampling system: built-in pressure maintaining valve, filter and electronic mass flowmeter
6)  Sampling flux: 0.5~0.8L/min
7)  Continuous working duration: 8 hours (by lithium ion battery)
8)  Ambient temperature: -40°C~+80°C
9)  Dimension: 320 x 270 x 140mm

III.Main features
1)  Thermal conductivity sensor with high stability and high precision
2)  Full-range temperature compensation, quick response, high precision and steady performance
3)  Real-time curve display
4)  Operation and control by color touch screen
5)  Storage and printing of measured data
6)  Intelligent display of electricity quantity and intelligent charging protection

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



V.Customer Visit



VI.Exhibition

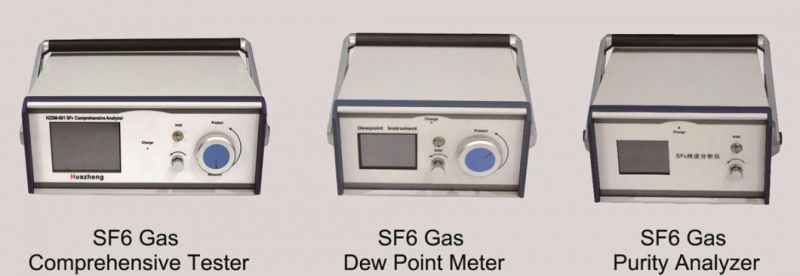

VII.Similar Recommendation
