• Model NO.：LWT-3
• Type：Abrasion Tester
• Power Supply：230W,280W
• Voltage：220V,110V
• Transport Package：Standard Export Box
• Specification：34*20*17cm
• Trademark：TOP OIL TESTER
• Origin：Chongqing, China
• Production Capacity：500sets Per Month

Basic Info.

Model NO. LWT-3 Type Abrasion Tester Power Supply 230W/280W Voltage 220V/110V Transport Package Standard Export Box Specification 34*20*17cm Trademark TOP OIL TESTER Origin Chongqing, China Production Capacity 500sets Per Month

Product Description

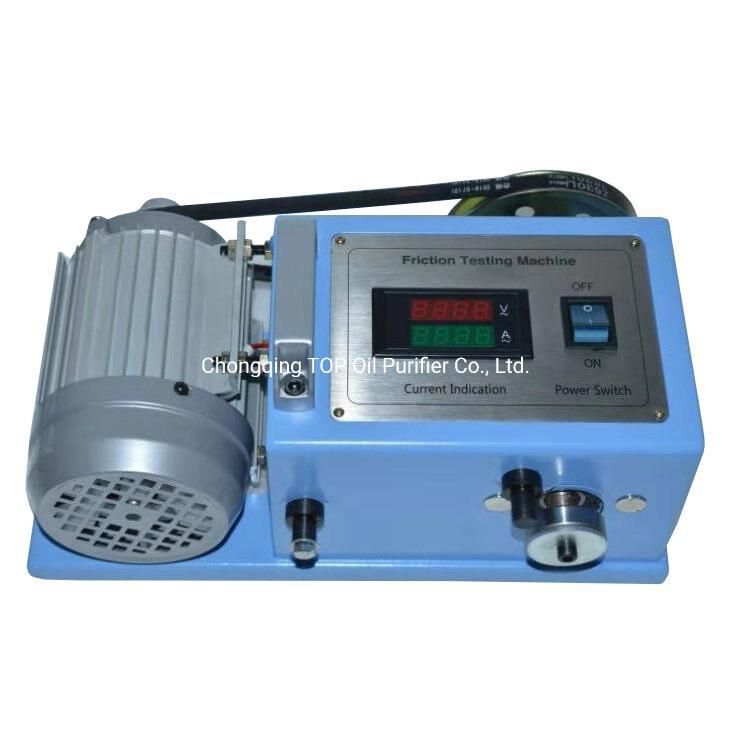

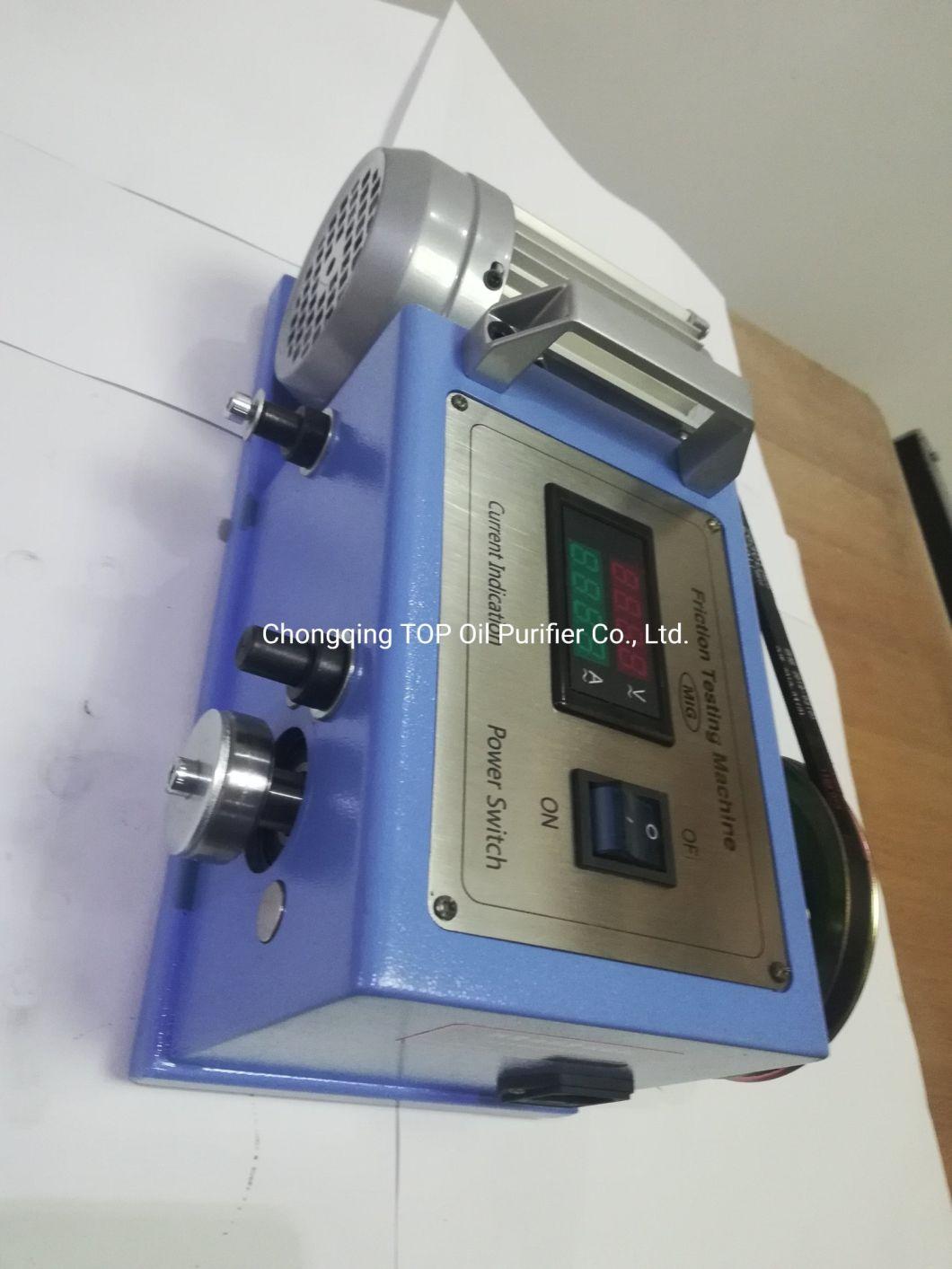

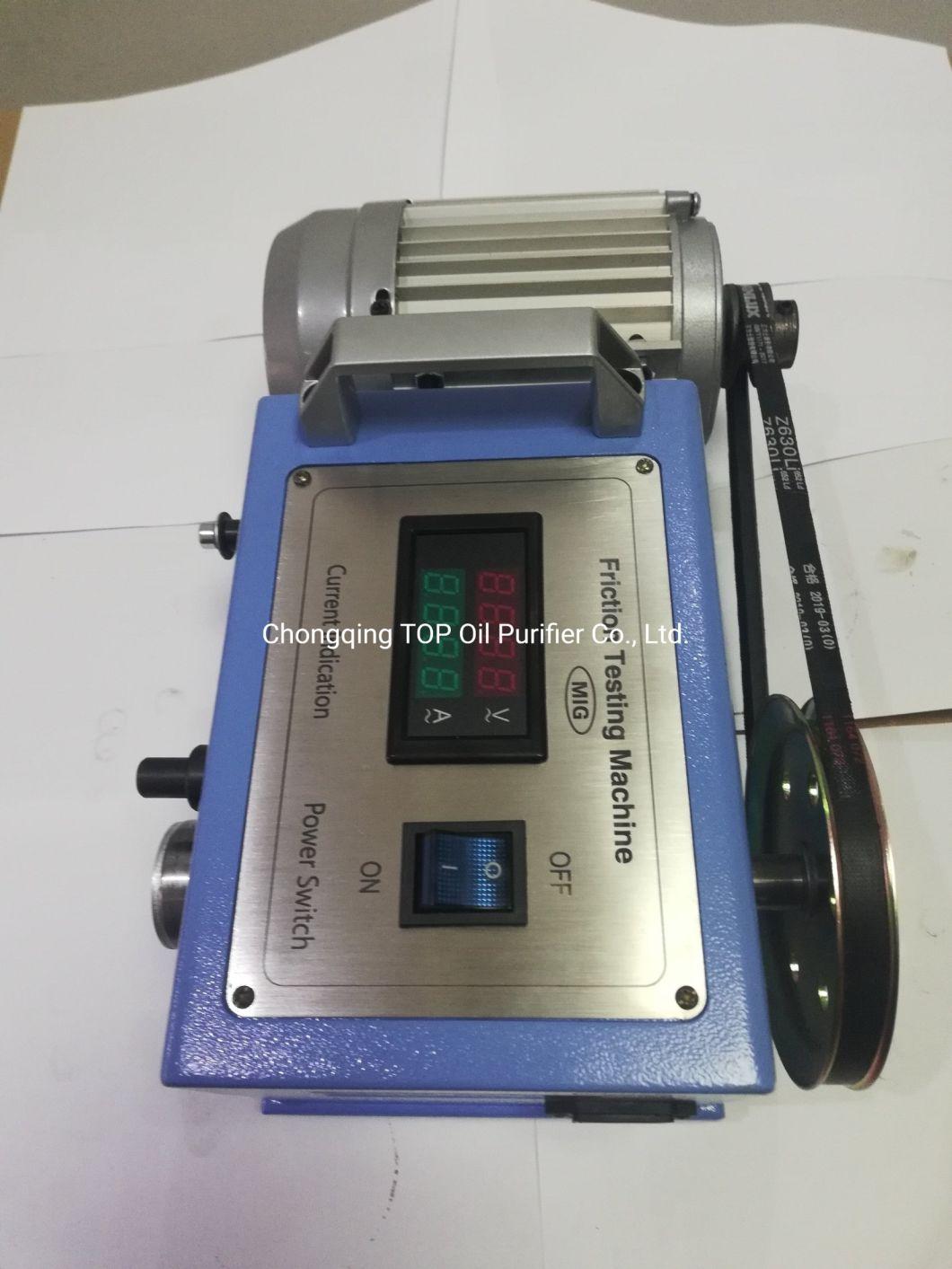

Weight-type Lubricating Anti-abrasion Tester LWT-3

Product Description:
The anti-abrasion tester is suitable for comparing the extreme pressure performance of lubricating oil mixed with anti-abrasion agent.

1) First turn on the 220V power supply (110V power supply needs description), press power switch to run the motor, use the random oilstone strip to thoroughly polish and wipe the grinding wheel with lubricating oil, then turn off the power. Place the cylindrical grinding block in the short lever groove of the tester and fix it.
2) Select a kind of lubricating oil to be put into the oil tank (suitable to inflate the grinding wheel 3-5 mm), and install the oil tank and long lever on the machine (as pictures)
3) Start the motor, first run it, then add the weight load block one by one at the end of the long lever at intervals of time (2-5 seconds), record the number of weights, and turn off the power quickly until the grinding wheel stops, take down the whole stack. Remove the short lever and observe the abrasion scar depth, area, and roughness of the cylindrical grinding block.
4) The better the anti-abrasion performance, the more number of weights are added,the smaller the abrasion scar area of cylinder module and ellipse, the higher the fineness of abrasion scar. According to this, it can be compared with other test oil samples comprehensively, and the general contrast effect is bright.
5) If testing the mixture of anti-abrasion additive and lubricating oil, the anti- abrasion additive shall be injected into the oil box according to a certain proportion, mixed with the original lubricating oil, stirred evenly, installed in the oil box, and the above experiment process shall be repeated.
6) Equipped with portable special case, all accessories have specific locations, after use, placed according to location. Easy to carry, easy to promote excellent lubricant products.

Technical Parameters:
Standard: CE ATSM CQ AFM
Power supply: 230W/280W
Processing accuracy: 0.01mm
Display: Pointer/Digital
Lever ratio: 13.745
Weight: 23kg
Ball size:14*14mm
Voltage: 220V/110V
Machine size: 340*200*170mm

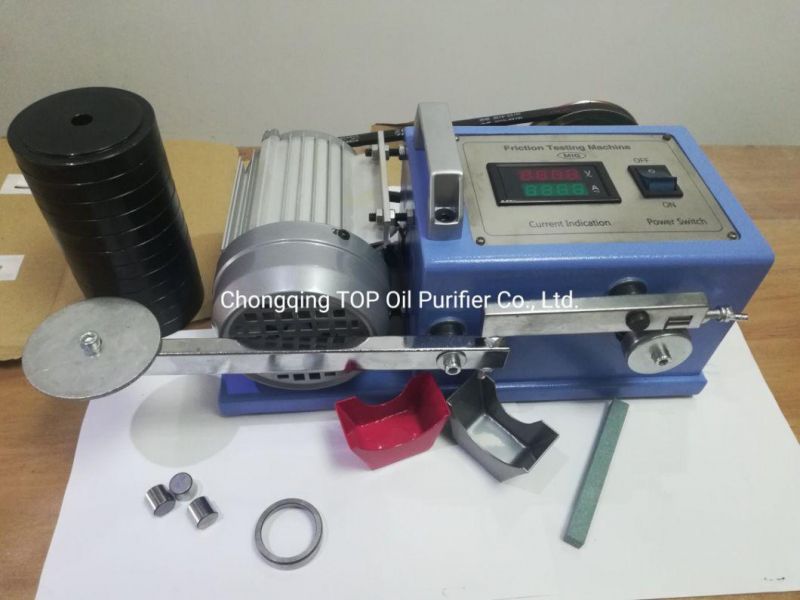

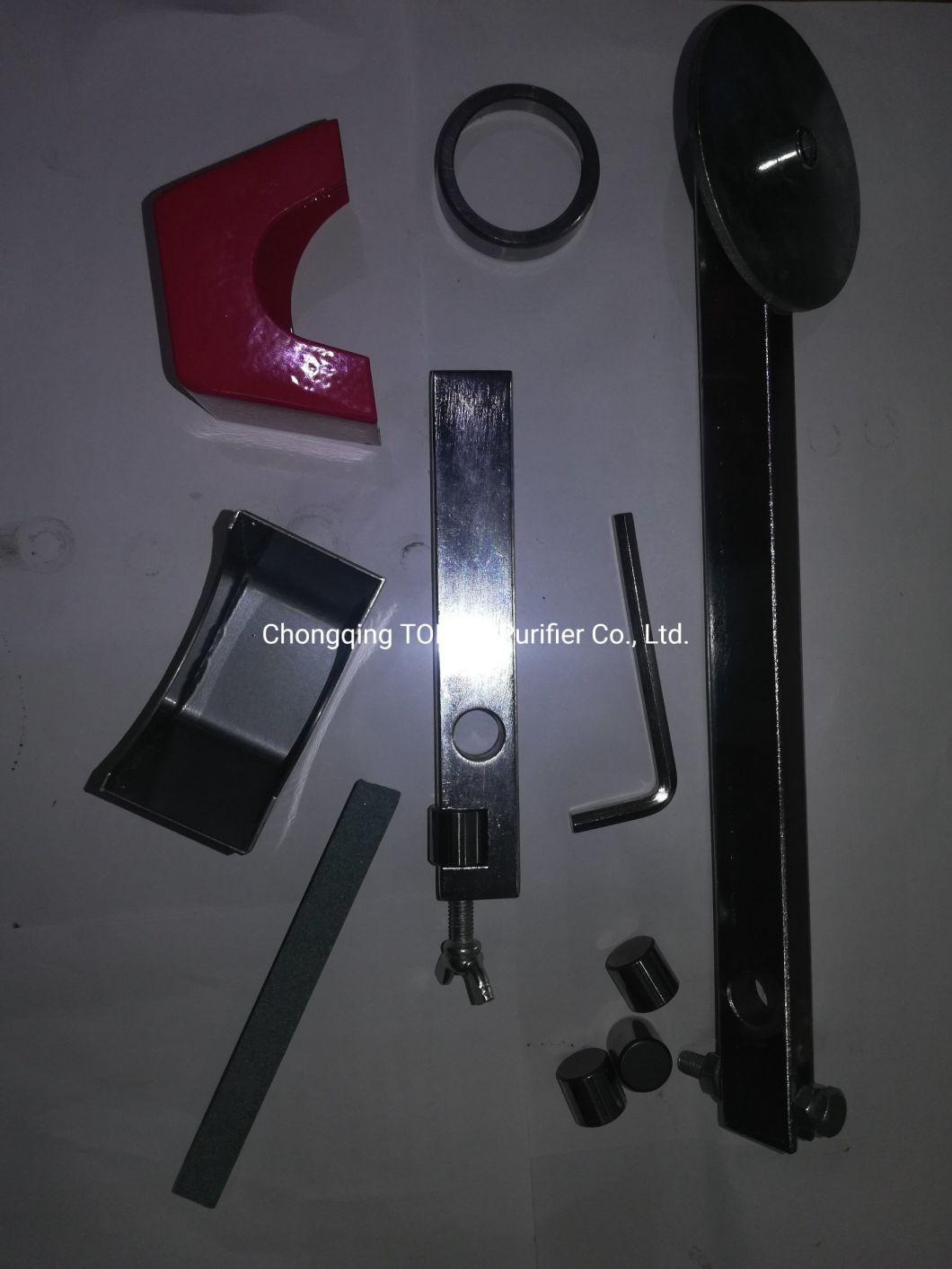

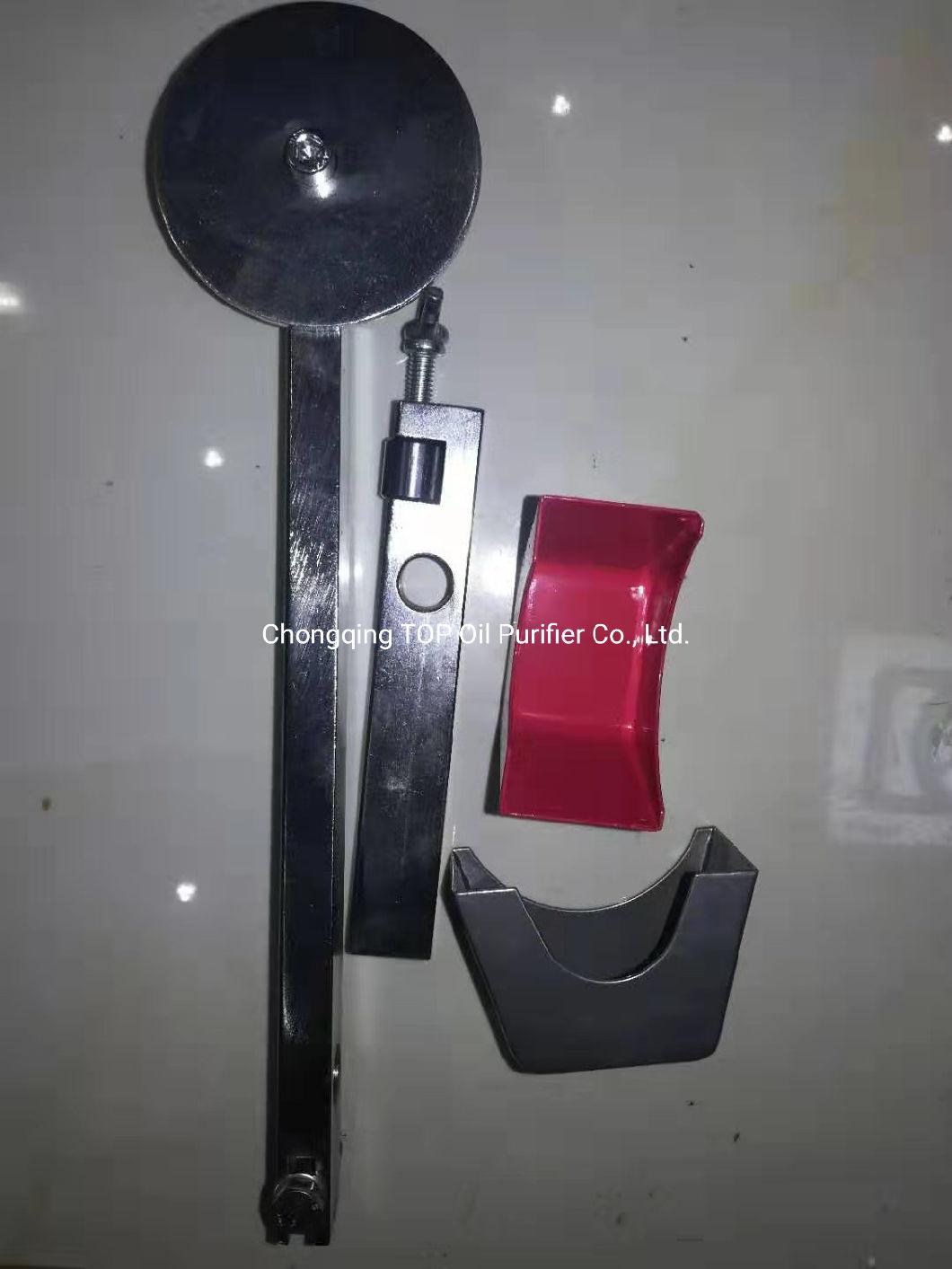

Accessories:

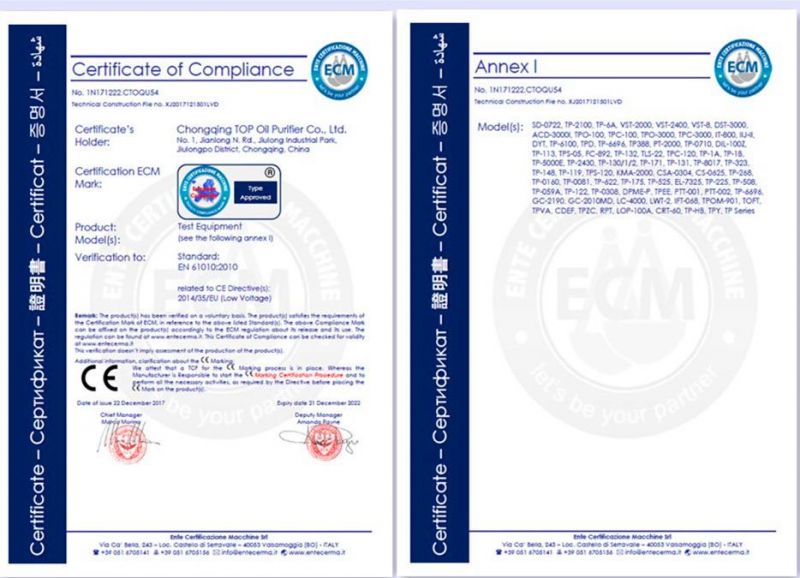

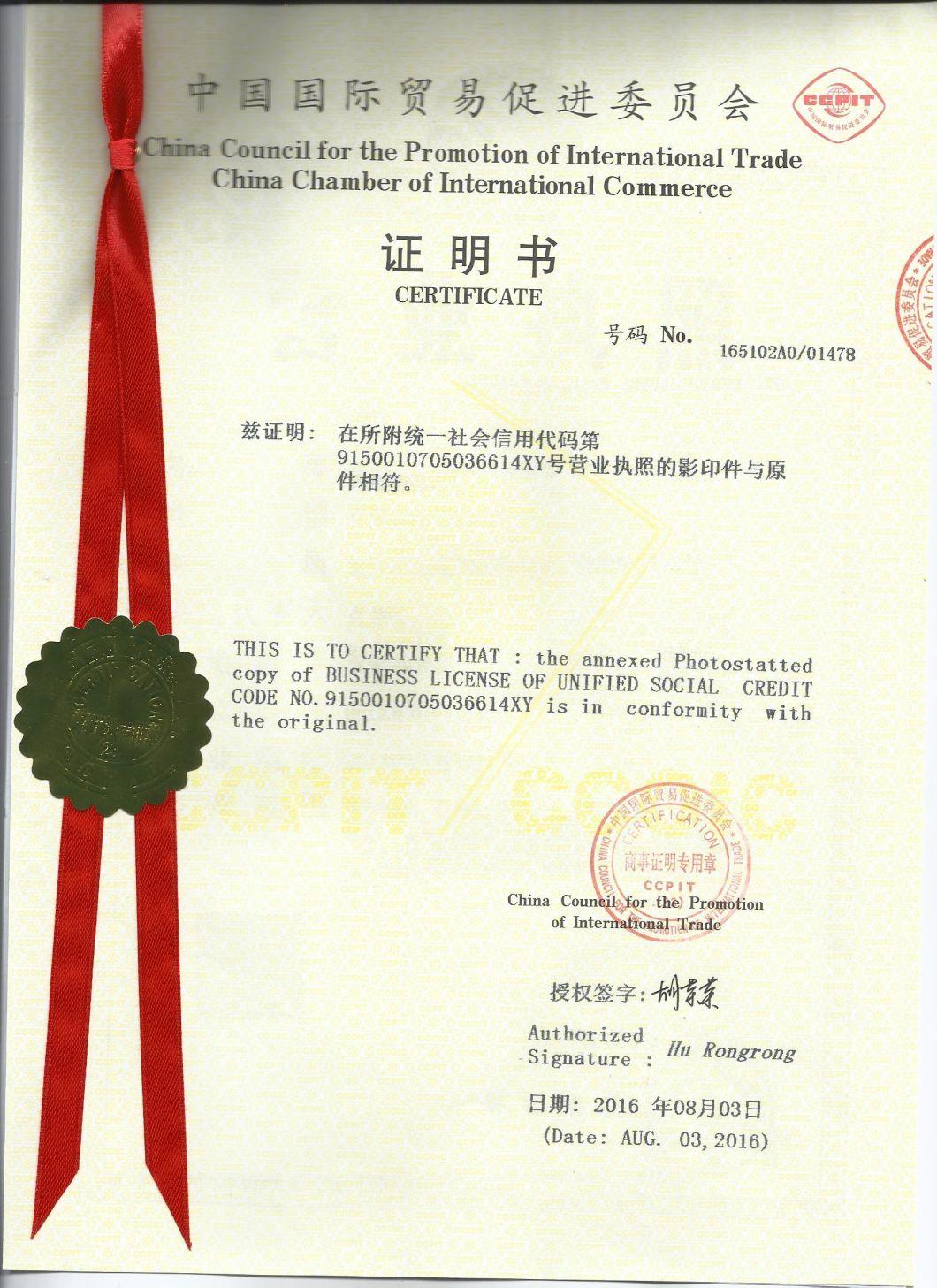

Related Certificates:

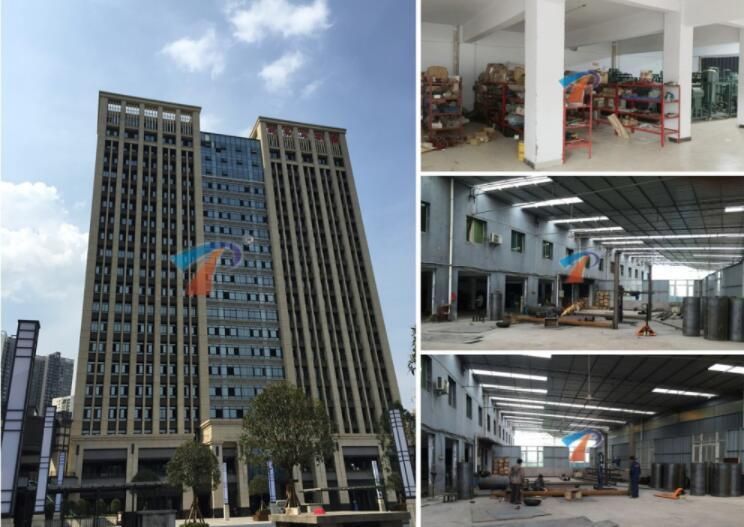

Our Company:




Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
