• Model NO.：KF100-CEMS
• So2 Detection Range：0-20ppm, 0-3000ppm
• O2 Detection Range：0-25%
• CO2 Detection Range：0-20%Vol
• Nox Detection Range：0-20 Ppm, 0-3000ppm
• Co Detection Range：0-1000ppm
• Dust Detection Range：0-500mg,M3
• Temperature：0-400 Degree
• Flow：0-40m,S
• Signal Transmission：RS485,4-20mA
• Power：220V AC,50Hz 4000 W
• Measurement Principle：Dlas
• Power Supply：220V AC,DC 24V(18~36V)
• Storage Temperature：-40 ~80 Degree
• Presssure：-10kpa-10kpa
• Humidity：0-40%Vol
• Transport Package：Wooden Box
• Specification：200*800*600mm
• Trademark：KELISAIKE
• Origin：Nanjing, China
• HS Code：9027100090
• Production Capacity：500

Basic Info.

Model NO. KF100-CEMS So2 Detection Range 0-20ppm, 0-3000ppm O2 Detection Range 0-25% CO2 Detection Range 0-20%Vol Nox Detection Range 0-20 Ppm, 0-3000ppm Co Detection Range 0-1000ppm Dust Detection Range 0-500mg/M3 Temperature 0-400 Degree Flow 0-40m/S Signal Transmission RS485,4-20mA Power 220V AC/50Hz 4000 W Measurement Principle Dlas Power Supply 220V AC/DC 24V(18~36V) Storage Temperature -40 ~80 Degree Presssure -10kpa-10kpa Humidity 0-40%Vol Transport Package Wooden Box Specification 200*800*600mm Trademark KELISAIKE Origin Nanjing, China HS Code 9027100090 Production Capacity 500

Product Description

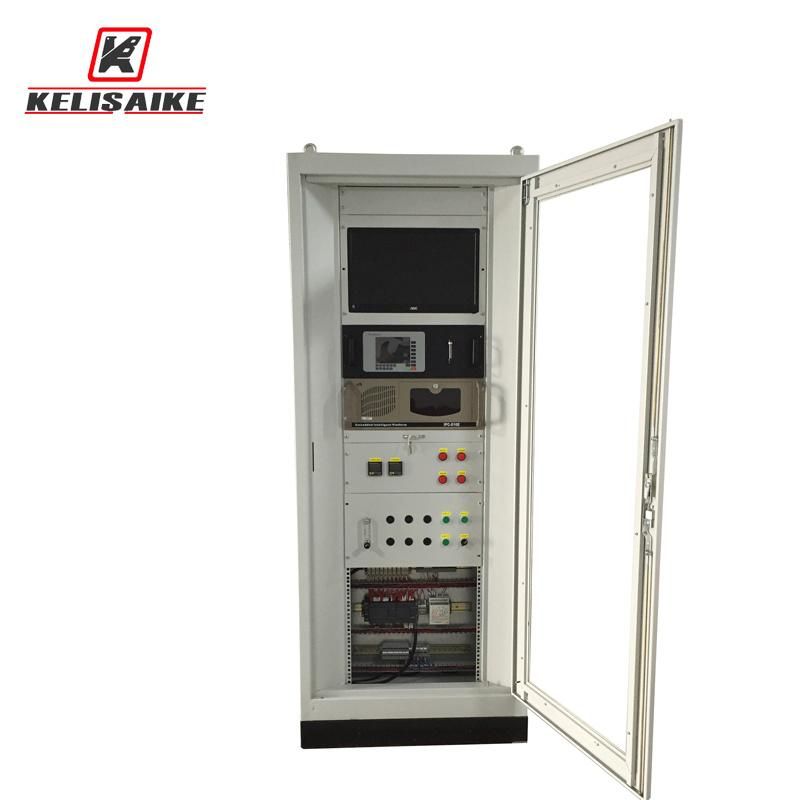

WT-QY800 Continuous Emissions Monitoring System(CEMS)

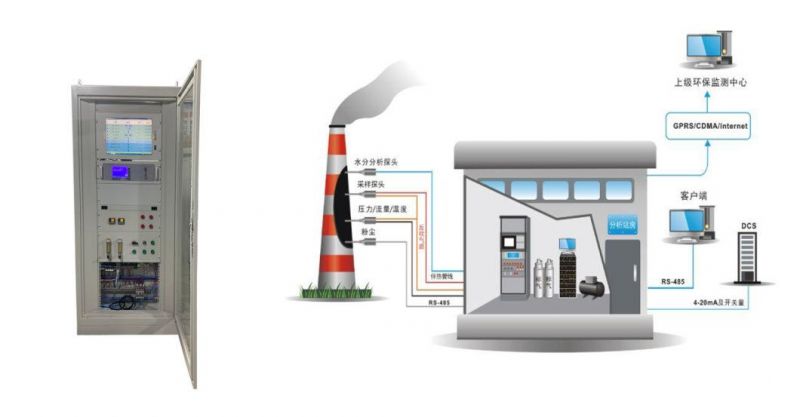

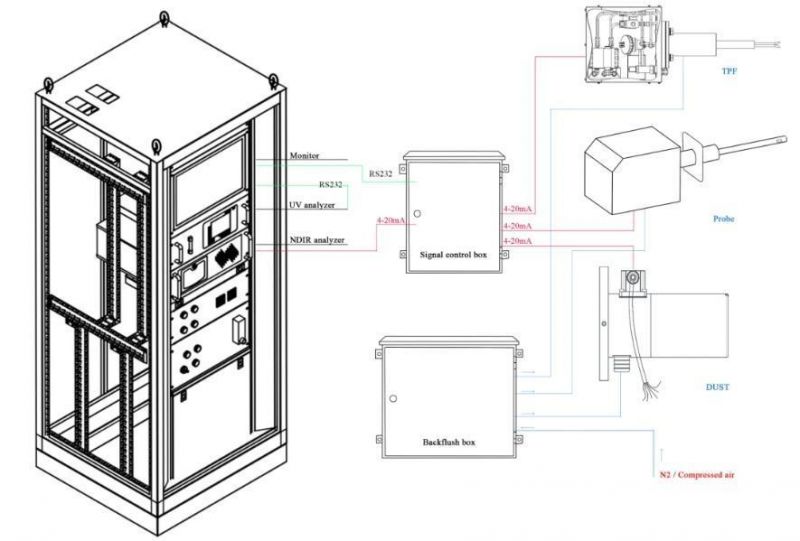

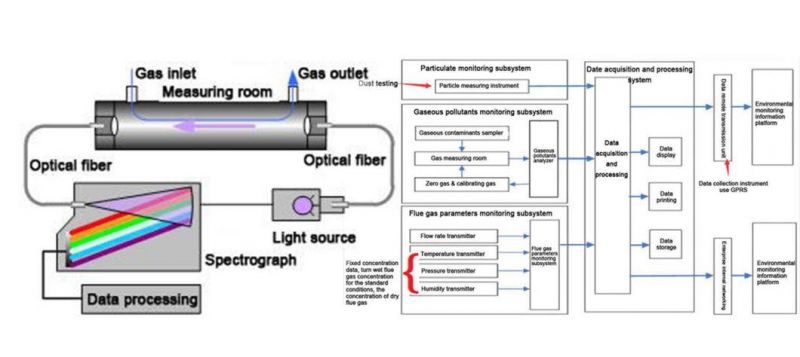

>>>Product Description The CEMS-1000 flue gas emission continuous monitoring system (CEMS) is composed of four basic parts: the smoke and dust monitoring subsystem, the gaseous pollutant monitoring subsystem, the flue gas parameter monitoring subsystem, the system control and the data acquisition and processing subsystem. It can monitor SO2, NOx, O2, dust, temperature, pressure, flow rate, humidity and other parameters in the gas, and can also expand the monitoring of HCl, HF, CO, CO2,NO2 and other parameters for specific occasions. The measured gas passes through the sampling probe to remove dust, heat tracing tube sampling, multi-stage filtration, secondary condensation to quickly remove water and cool down, and enter the micro heat tracing gas analysis module (DOAS and TDLAS technology) for analysis and measurement. The use of dry measurement effectively solves the technical problems of large fluctuations in data measurement caused by large humidity changes such as waste incineration.



>>>Technical Characteristics

The secondary condensation quickly removes water and cools, reduces air and water contact time, and reduces SO2 loss; the analyzer adopts micro-heating technology to reduce the maintenance period of the measuring pool; fast loop sampling pump sampling, fast response time; multi-stage filtration and water removal, Dust removal, high reliability; can achieve full calibration.


Application:

Coal-fired power plants, waste-to-energy power plants, cement plants, glass plants, lime plants, ceramic plants, sintering, coke ovens, desulfurization processes, denitrification processes and other exhaust emission monitoring and process control.

>>>Technical Specification


Project	Indicators
SO2 Detection range	0 - 20 ppm, 0 - 3000ppm
NOx Detection range	0 - 20 ppm, 0 - 3000ppm
O2 Detection range	0 - 25%, Electrochemical or zirconia
CO Detection range (Optional)	0-1000ppm
CO2 Detection range(Optional)	0-20%Vol
Dust Detection range	0 - 20mg/m3, 0 - 500mg/m3
Temperature	0 - 400ºC
Pressure	-10kPa~+10kPa
Flow	0 - 40m/s
Humidity	0 - 40%Vol
Ambient temperature	5ºC ~ 45ºC
Ambient Humidity	0~95%RH
Sample gas flow	0.3-1.L/min
Signal transmission	RS485,4-20mA
Size	80*60*180cm
Power	220 V AC/50 Hz 4000 W
Protection grade	Cabinet IP42, others IP65



>>>Company Information



Nanjing KELISAIKE is one of the largest safety equipment manufactures, possesing the most complete production range and specifications in the safety equipment industry of mainland China. Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Xinjiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan. Standard products and services cover the portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit, air breathing apparatus etc. Also Nanjing KELISAIKE is an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
Nanjing KELISAIKE has passed IS9001 International Quality System Certification, which ensures all products' excellent performance and competitive prices.
KELISAIKE Faith
People-oriented and technology-innovated
KELISAIKE Principle
Quality first, integrity-based

>>>Our Services
1.The inquiry and question will be replied within12hours
2.High quality with competitive price
3.Good after sales service
4.Accept OEM
5.One of the most professional safety equipment manufacture with a very good and trained team

>>>FAQ
1.How about the Delivery time?
Samples will be prepared  within 15 Days after 100% T/T in advance payment. QTY order will be delivered in 30 days.
2.What kind of payments does KELISAIKE support?
T/T, L/C, Western Union, Cash are accepted.
3.What's the MOQ?
Generally speaking, the MOQ is 5PCS, but we also can provide you samples for quality inspection.
4.Do you charge for the samples?
According to our company policy,we just charge the samples based on EXW price.
5.Can you produce according to customers' design?
Suce, we are professional maunfacturer, OEM is welcome
