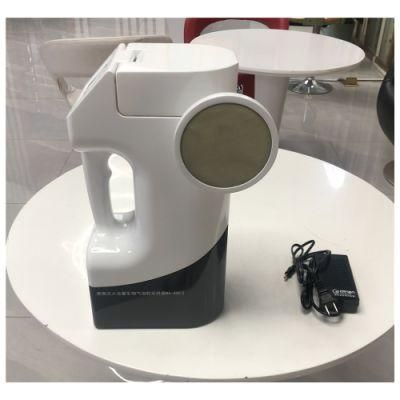

Exhaled Air/Breath Condensate Collector (CAE/EBC) High Volume Air Sampler
BeiJing Cape Golden Gas System Company LTD- Brand：Cape-Golden
- Customized：Non-Customized
- Portable：Portable
- Certification：CE
- Gas：Air, Breath
- Type：Air Sampler
Base Info

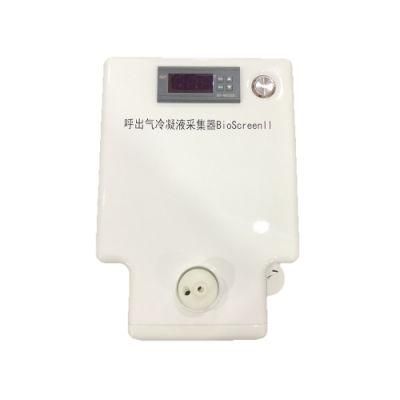

- Model NO.：BioscreenII
- Collection Efficiency：200UL,Min
- Collection Temperature：0~4.C
- Average Temperature Descending Speed：5.C,Min
- Adapter：12V,10A
- Power：96W
- Centrifuge Tube：Dia29.1*114.4mm
- Breath Blow Pipe：Dia6mm
- Dimension：250*220*120mm
- Weight：2kg
- Transport Package：Portable Case
- Specification：250*220*120mm
- Trademark：Cape-Golden
- Origin：China
- HS Code：9027100090
- Production Capacity：1000sets,Year
Description
Feature
Principle

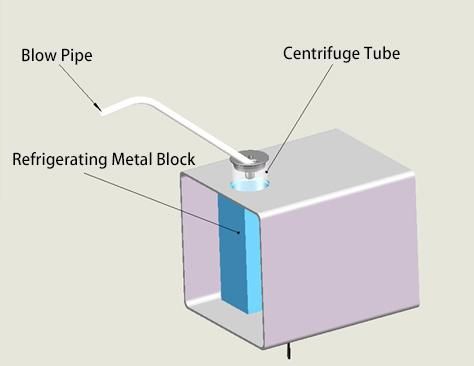

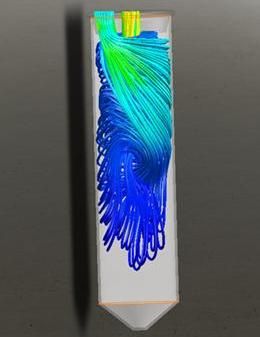

The design of High Volume Air Sampler collector is special separate cover, which enable the exhaled breath gas of subjects to form a vortex flow in the centrifuge tube, promote the water mist to form liquid drop, and reduce the formation of liquid film.

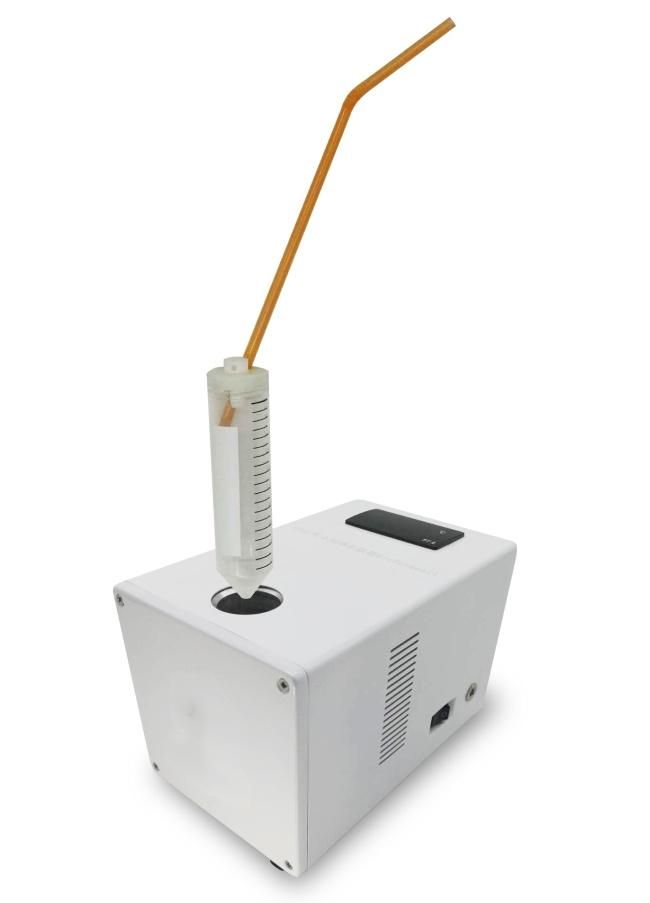

At the same time, the condensate droplets on the side wall can be blown down continuously and collected at the bottom of the condenser pipe, finally to improve the sample concentration and collection rate. We choose 50ml centrifugal tube to increase the condensation contact area, and the collected condensate liquid can be directly used for inspection or refrigerated preparation.
Specification

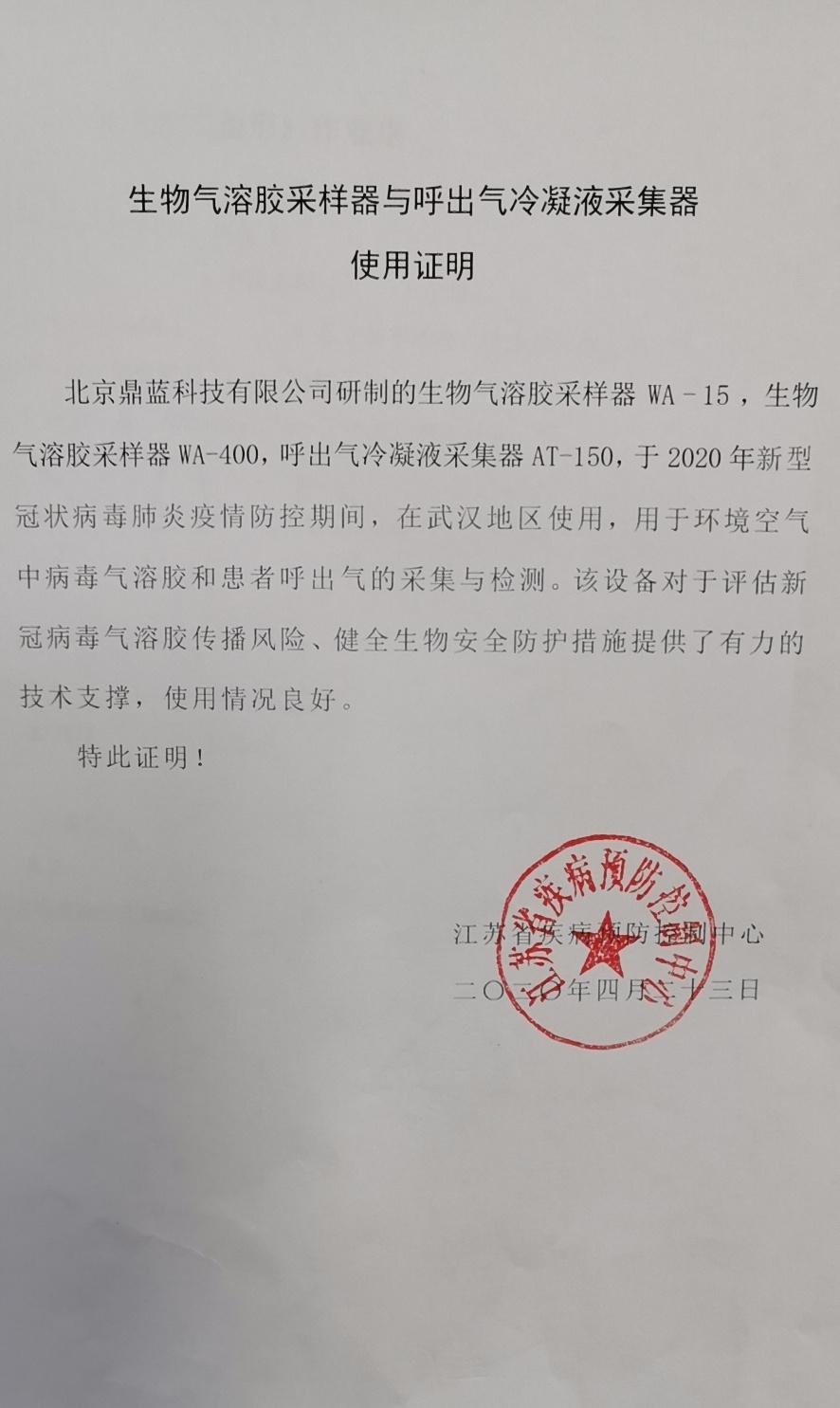

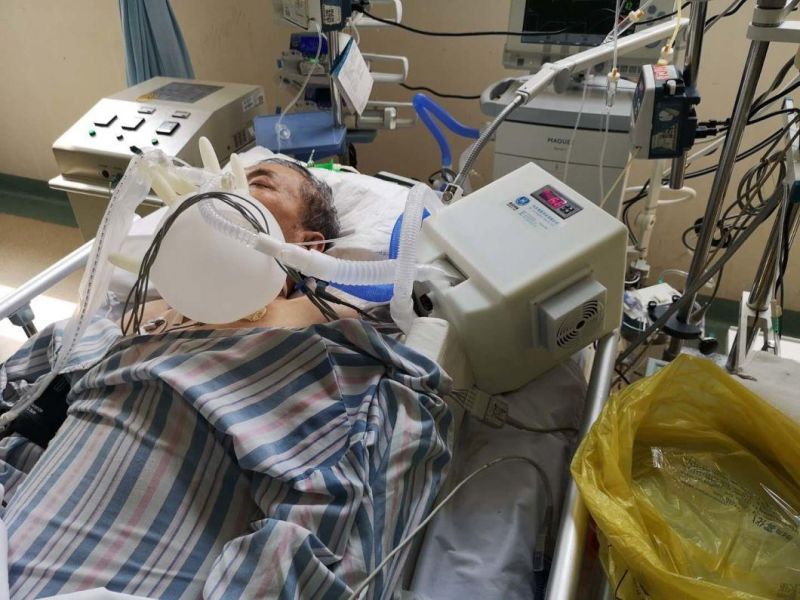

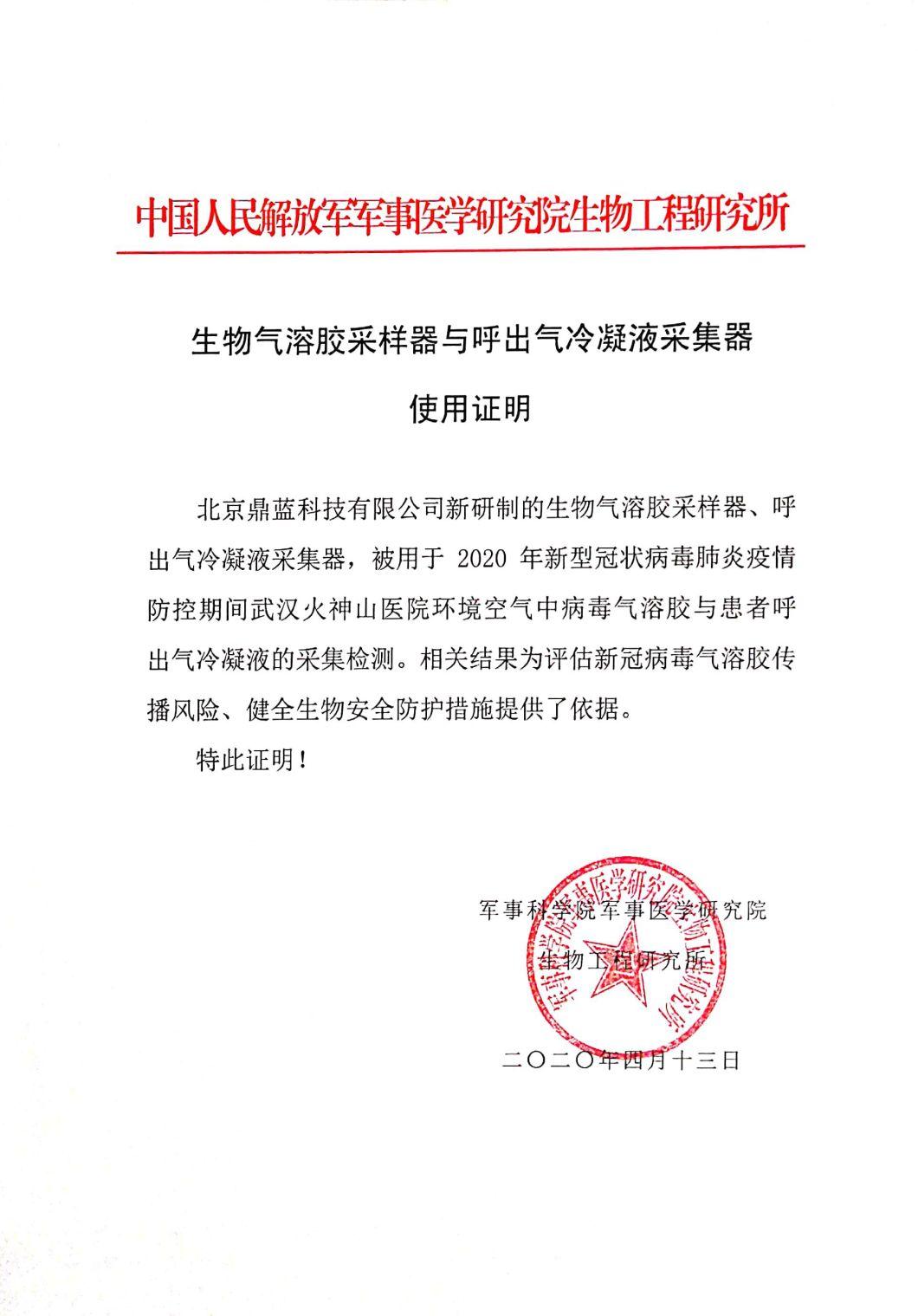

2.The Military Medical Research Institute is used in Huoshenshan Hospital for High Volume Air Sampler Collector, and the Jiangsu Provincial Center for Disease Control and Prevention is used in Wuhan
- Small size, light weight, portable
- Simple operation, continuous collection

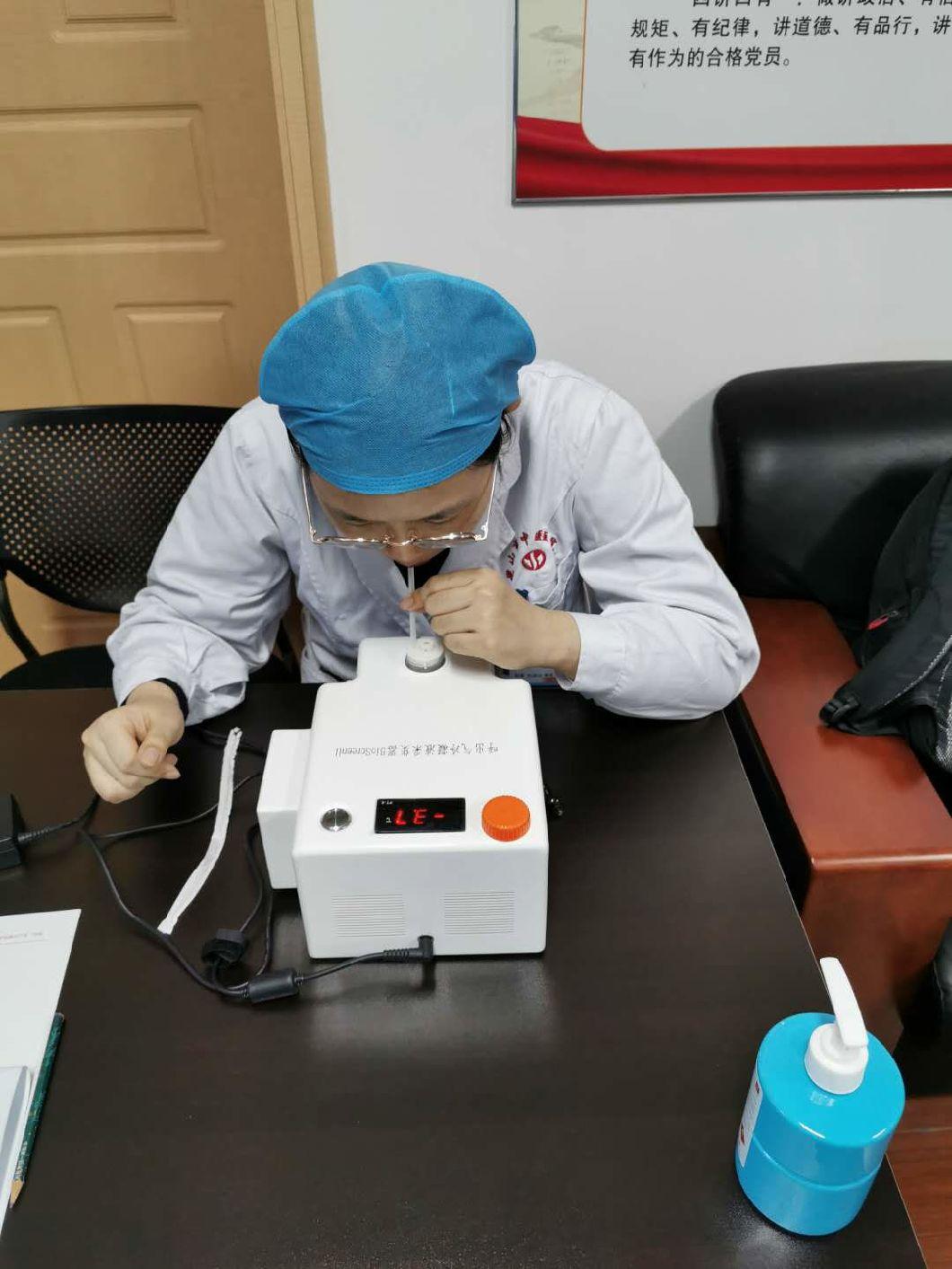

- Normal breathing, comfortable collection experience
- High collection efficiency, high speed, 3-5 minutes can collect 500μl-1000μl
- The collection tube is consumables material, easy to use, avoid cross contamination
- Safe, non-invasive, painless, comfortable experience, the use of the instrument does not affect the normal breathing of subject
Principle
The design of High Volume Air Sampler collector is special separate cover, which enable the exhaled breath gas of subjects to form a vortex flow in the centrifuge tube, promote the water mist to form liquid drop, and reduce the formation of liquid film.
At the same time, the condensate droplets on the side wall can be blown down continuously and collected at the bottom of the condenser pipe, finally to improve the sample concentration and collection rate. We choose 50ml centrifugal tube to increase the condensation contact area, and the collected condensate liquid can be directly used for inspection or refrigerated preparation.
Specification
2.The Military Medical Research Institute is used in Huoshenshan Hospital for High Volume Air Sampler Collector, and the Jiangsu Provincial Center for Disease Control and Prevention is used in Wuhan
