• Model NO.：MINI-100N
• Customized：Non-Customized
• Temp Range：Rt+5 Degree-100 Degree
• Heating Time：12 Min
• Blocks Quantity：1 Block
• Nitrogen Flow Rate：0-10L,Min
• Nitrogen Pressure：0.1MPa
• Dimension(W*D*H)：110*156*400mm
• Net Weight：1.2kgs
• Transport Package：Paper Box
• Specification：1.2kg
• Trademark：HEB
• Origin：Xian
• Production Capacity：500

Basic Info.

Model NO. MINI-100N Customized Non-Customized Temp Range Rt+5 Degree-100 Degree Heating Time 12 Min Blocks Quantity 1 Block Nitrogen Flow Rate 0-10L/Min Nitrogen Pressure 0.1MPa Dimension(W*D*H) 110*156*400mm Net Weight 1.2kgs Transport Package Paper Box Specification 1.2kg Trademark HEB Origin Xian Production Capacity 500

Product Description

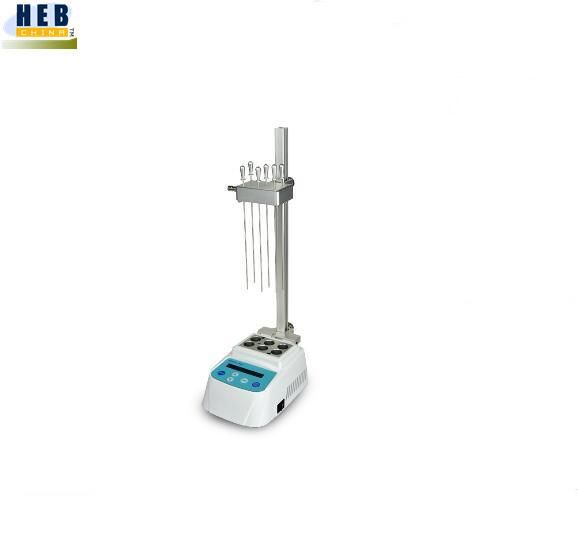

                                 Nitrogen blowing instrument for sample concentrator


Introduction:

The nitrogen sample concentrator MINI-100N is mainly used for concentrating or preparing sample in batch, such as drug scerrning, hormone analysis, liquid phase and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously.

Features:

1. Synchronously working with heating by dry bath in the bottom and nitrogen blowing on the surface accelerates liquid evaporation and sample concentration.
2. The position of gas needle in air chamber plate can be adjusted to suit for different types of tubes.
3. The height of the air chamber plate can be adjusted . The length of a standard gas needle is 150mm.
4. Separately blow of 6 needles and flow regulating of each needle are available to avoid gas waste.
5. The entire equipment can be put into ventilation cabinet when the concentration sample in toxic solvents.
6. Built in overheat protection, automatic fault detection and fault beep alarm devices.
7. LED displays immediate temperature and diminishing time. Operation is simple and convenient.
8. Standard configured air cavity and adjustable bracket.

Specification


Model	MINI-100N
Temperature range	RT+5ºC-100ºC
Heating time	≤12 min(From 40ºC-100ºC)
Temperature accuracy(100ºC)	±0.5ºC
Temperature accuracy(40ºC)	±0.3ºC
Blocks quantity	1 block
Time range	1s-999s or 1min-999min
Nitrogen flow rate	0-10L/min
Nitrogen pressure	≤0.1Mpa
Power	60W
Dimension(W*D*h)	110*156*400mm
Net weight	1.2kgs

Package & Delivery:

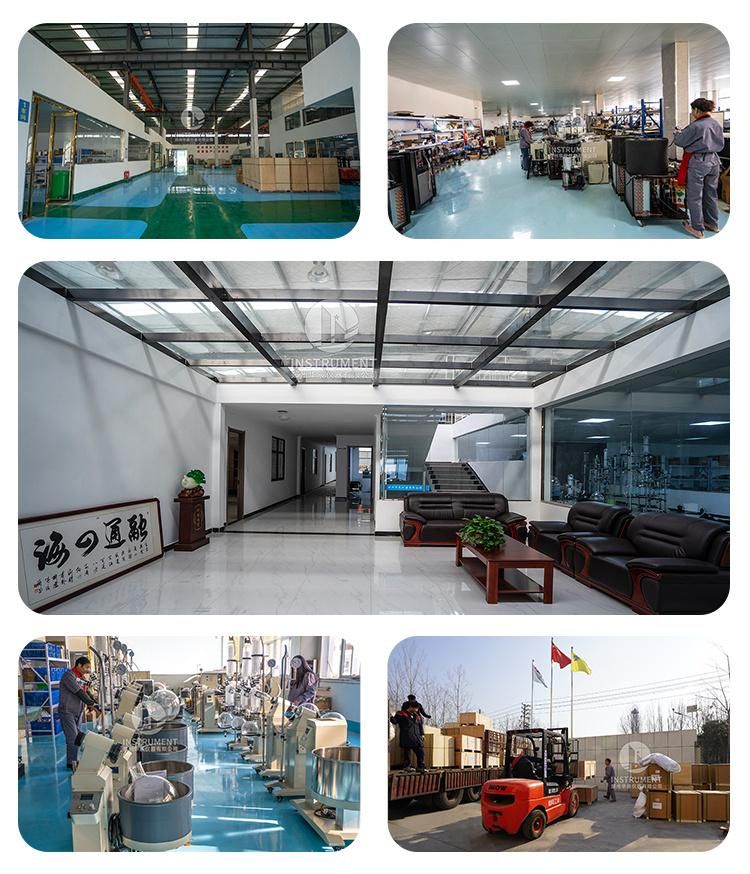

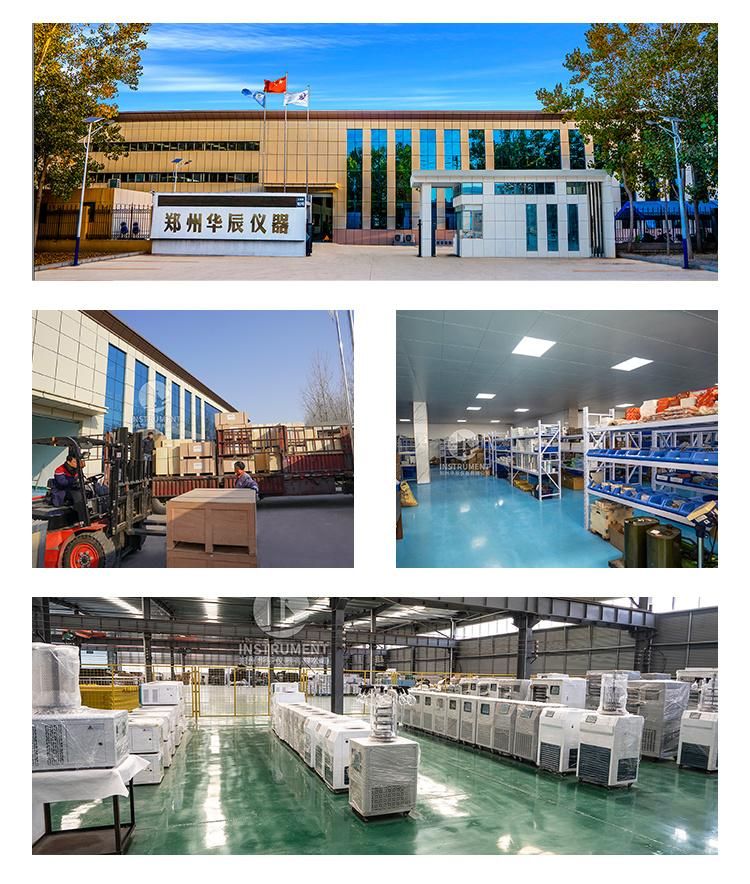

Our factory:


Our certification:
