• Model NO.：SQ-100
• Performance：Semi-automatic
• Power Supply：220V
• Certification：CE
• Weight：190kgs
• Customized：Customized
• Working Voltage：380V 50Hz
• Spindle Speed：2800r,Min
• Grinding Wheel Specifications：300×2×32mm
• Motor：Y2-100 L-2 3.0kw
• Dimensions：950×880×1500mm
• Equipment Quality：120kg
• Transport Package：Plywood Box
• Specification：950× 880× 1500mm
• Trademark：OEM ODM
• Origin：China Shandong Others
• HS Code：8460402000
• Production Capacity：2000 Set Per Year

Basic Info.

Model NO. SQ-100 Performance Semi-automatic Power Supply 220V Certification CE Weight 190kgs Customized Customized Working Voltage 380V 50Hz Spindle Speed 2800r/Min Grinding Wheel Specifications 300×2×32mm Motor Y2-100 L-2 3.0kw Dimensions 950×880×1500mm Equipment Quality 120kg Transport Package Plywood Box Specification 950× 880× 1500mm Trademark OEM ODM Origin China Shandong Others HS Code 8460402000 Production Capacity 2000 Set Per Year

Product Description

SQ-100 Manual Type Metallographic Specimen Cutting Machine Price

Usage of the Cutter

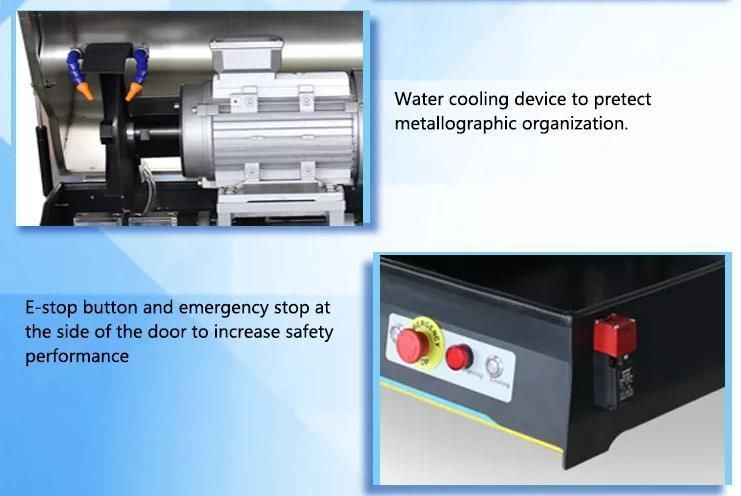

This machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic structure of the material. The machine is equipped with a cooling device, and the configured cooling liquid can take away the heat generated during cutting, and avoid the sample from overheating and burning the sample tissue. The machine is easy to use and reliable. It is the equipment for making samples in factories, research institutes and laboratories of universities and colleges.

Technical Data
1. Power supply: three-phase four-wire (380V, 50Hz)
2. Spindle speed: 2800 rpm
3. Grinding wheel specifications: 350×2×32mm
4. Maximum cutting diameter: 100mm
5. Motor: Y2-100 l-2 3.0KW
6. Equipment quality: 120k

Name	Spec	Unit	Qty	Note
Manual sample cutting machine	SQ-100	Set	1
Product Manual		Copy	1
Product certification		Copy	1
Packing List		Copy	1
Wrench	36	PCS	2
Big throat hoop	φ32-φ44	PCS	2
Small throat hoop	φ16-φ25	PCS	2
Cut slices	350mm	PC	1
Inlet pipe	2.5m	PC	1
Wrench	Hexagon socket m8	PC	1	Optional
Long hair brush		PC	1
Aggravate foot	M12	PCS	4
Outlet pipe	2.5m	PC	1
Environmentally Friendly Cooling Lubricant	2500ml	BOTTLE	1
Cooling water tank	50 liters	PC	1
Water pump	380v	Set	1

Usage

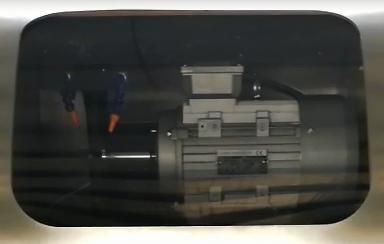

Inner Structure :
