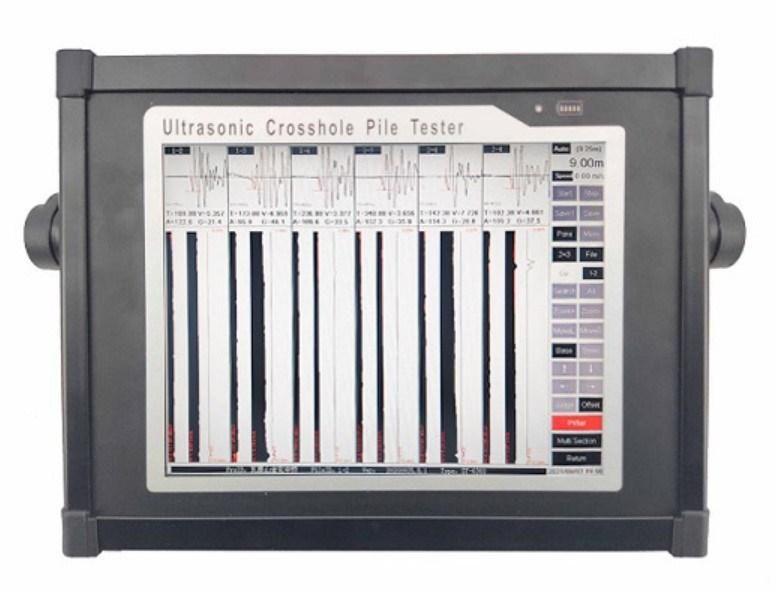

Ultrasonic Cross Hole ASTM D6760 Standard Concrete Pile Integrity Tester

Beijing Samyon Instruments Co., Ltd.
  • After-sales Service：24hours
  • Warranty：One Year
  • Standards：ASTM D6760
  • Record Length：0.5~4K
  • Sampling Intervals：0.03~1024us
  • Channel：2,3,4channels

Base Info

  • Resolution Ratio：0.3cm
  • Counting Device：4 Slots
  • Transport Package：Carton
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

ItemsTechnical ParametersChannelsFour ChannelsMaster ModeARM A8 1GHzOperating SystemWinCE of Chinese operating systemSampling ModeSynchronous SamplingDisplay Mode10.4 inch industrial bright LCD screen 1024*768Operating ModeImports of industrial resistive touch screenStorage Mode(16GB)Electrical Hard DiskDepth Measurement ModeTwo-way Counting and Real-Time Repetition MeasurementIntervals of Sampling0.03μs ~1024μsPhonatory Time Measurement Accuracy0.03μsPhonatory Time Measurement Range2×106μsRecord Length0.5~4kTransmit Voltage(V)50/250/500/1000 AdjustableDynamic Range of Gain90dBControl Accuracy of Gain0.4dBTest ProfileSix sectionsTransmit Pulse Width20μsBroadband2~500kHzReceiver Sensitivity≤10μVInter-channel Cross-talk≤-60dBData-Transmission ModeUSB2.0 High-speed interfaces and USB TransmissionPower-Supply ModeBuilt-in Lithium Battery(Working Hours≥8 Hours )Operating Temperature-10ºC~+45ºCMain Machine Dimensions325×243×56mmMain Machine Weight3.5kgOthersIntelligent Search, Real-time Control of Sampling in all Channels, Parameters of Dynamic sound , Automatic Interpretation, Cryptographic Measurement, Repetition Measurement.Counting Device4 SlotsDirectionTwo-way CountingResolution Ratio0.3cmSpace between Measuring Point5cm~100cm, OptionalMax Hoisting SpeedSix sections, up to 60 Meters per minuteHPTLPTL-HPT Ultrasonic Cross Hole ASTM D6760 Standard Concrete Pile Integrity Tester  Ultrasonic Cross Hole ASTM D6760 Standard Concrete Pile Integrity TesterUltrasonic Cross Hole ASTM D6760 Standard Concrete Pile Integrity TesterSLPTDRILLHOLECSLUltrasonic Cross Hole ASTM D6760 Standard Concrete Pile Integrity TesterUltrasonic Cross Hole ASTM D6760 Standard Concrete Pile Integrity TesterUltrasonic Cross Hole ASTM D6760 Standard Concrete Pile Integrity Tester
